2008-Present Dodge Challenger Windshield Wiper Replacement

ID: 174405

Description: Replacing windshield wipers can be difficult if...

Steps:

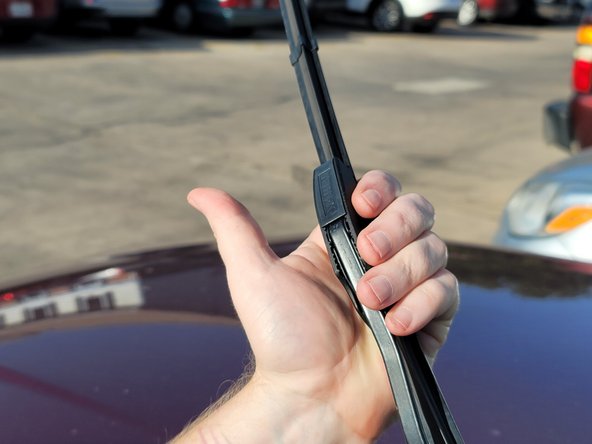

  1. Lift the windshield wiper arms up and away from the windshield into the upright position.
  2. Step image

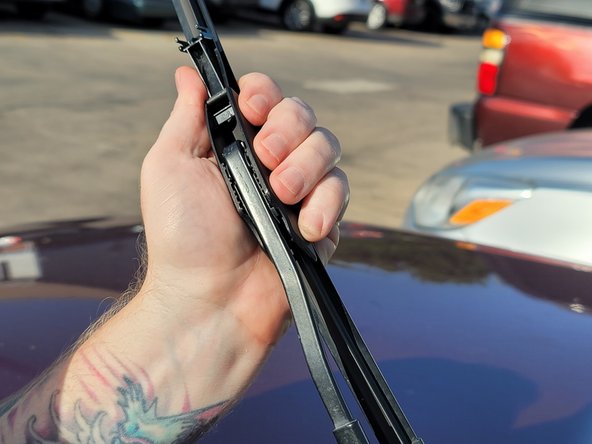

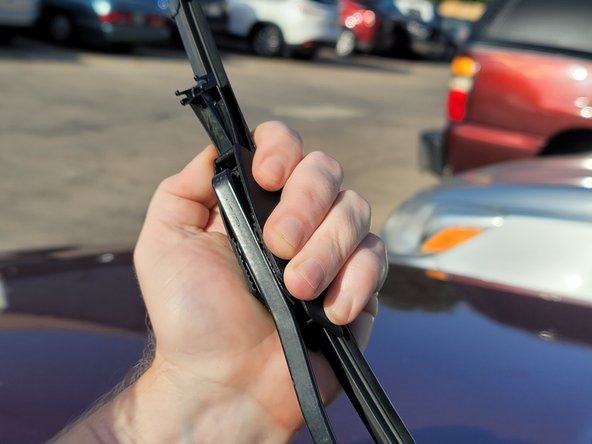

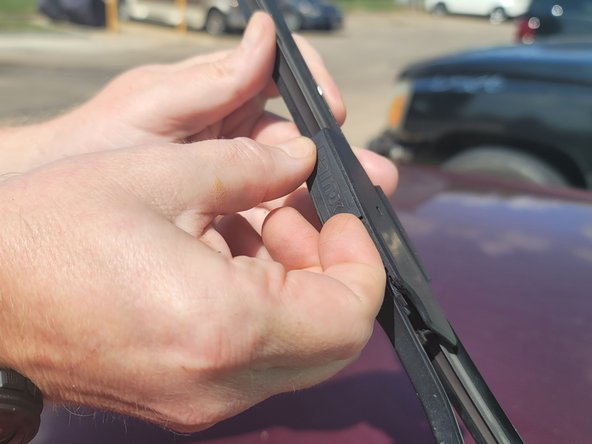

  3. Pull the tab in the middle of the windshield wiper arm to the left and into the open position.
  4. Step image Step image Step image

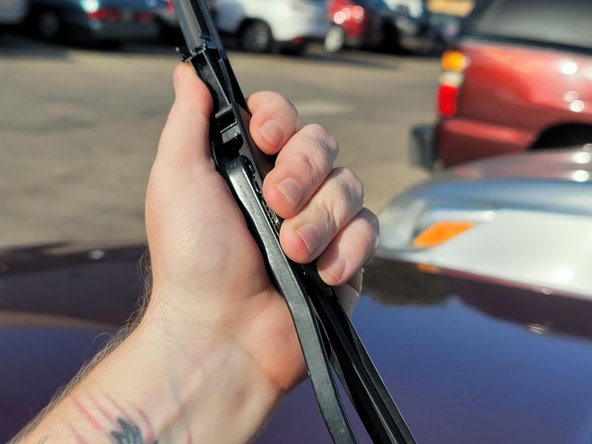

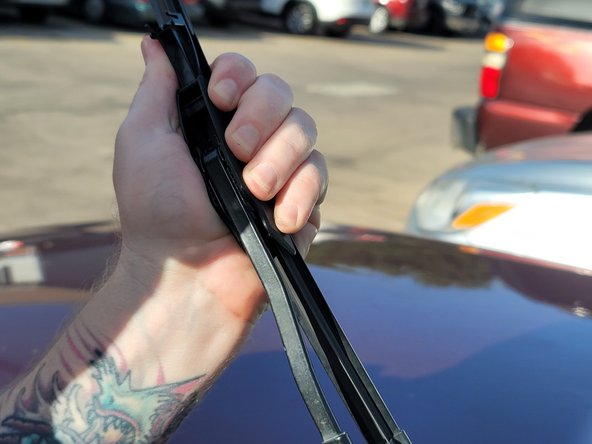

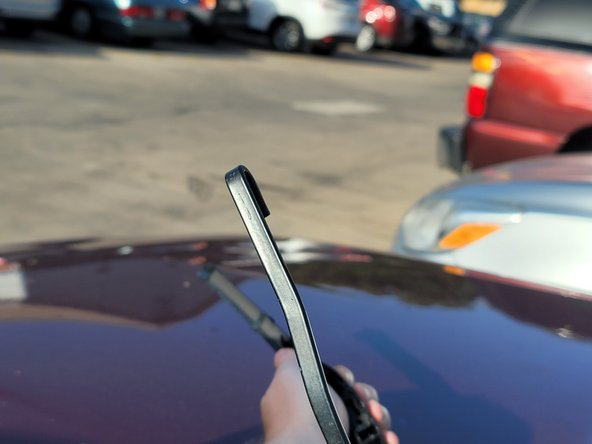

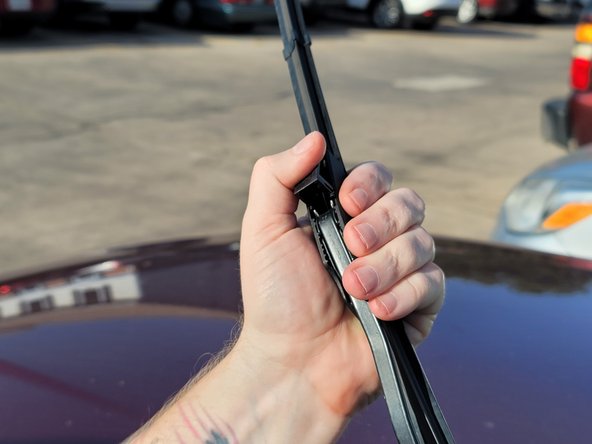

  5. Place your hand on the windshield wiper and pull downwards until the wiper releases from the hook.
  6. Step image Step image Step image

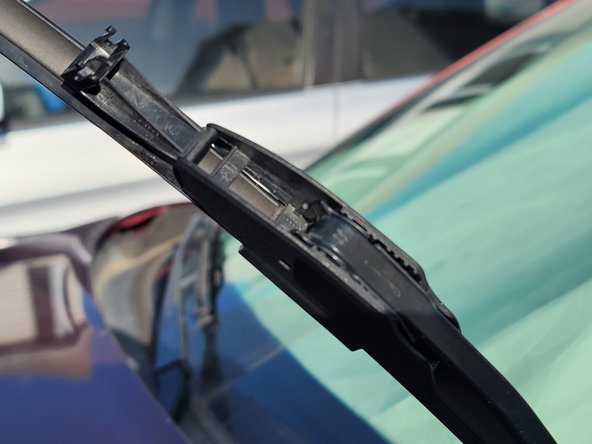

  7. Pull away from the hook and remove the old windshield wiper.
  8. Step image Step image
  9. Line up the hole on the new wiper blade and insert it on the exposed hook.
  10. Pull upwards on the wiper blade until you hear it click into place.
  11. Step image Step image Step image
  12. Push down on the tab in the middle of the wiper blade to secure it to the windshield wiper arm.
  13. Repeat the process to replace the windshield wiper on the passenger side.
  14. Step image Step image Step image
