Nissan Tiida/Versa Glove Box Replacement

ID: 175724

Description: Use this guide to replace your Nissan...

Steps:

1. Open the front right door.
2. Using a PH2 Phillips screwdriver, remove the following screws:
3. 4 13 mm PH2 Phillips screws.

4. Open the cover and remove the remaining screws:
5. 4 Phillips screws 17 mm PH2.
6. The small metal tabs that secure the screws to the plastic may fall out. Be careful.

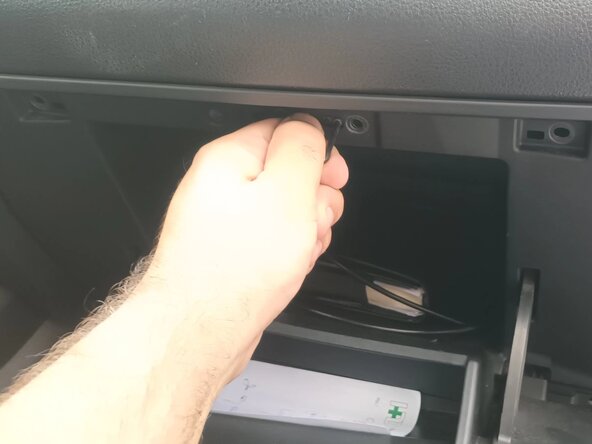

7. With the lid open, pull the hook to unlock the glove box body.
8. Once it has been released from the top, close the lid again.
9. Grasp the glove box body from the bottom and pull it toward you to remove it from the dashboard.
10. If your vehicle is equipped with a glove box light, follow this guide.
