2016-2022 Honda HR-V Windshield Wiper Replacement

ID: 178493

Description: Windshield wipers are essential for maintaining...

Steps:

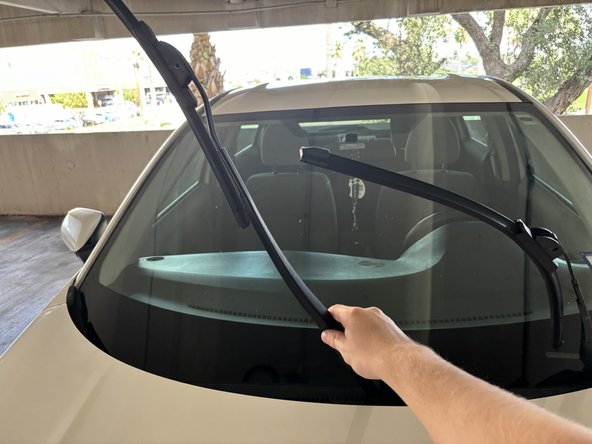

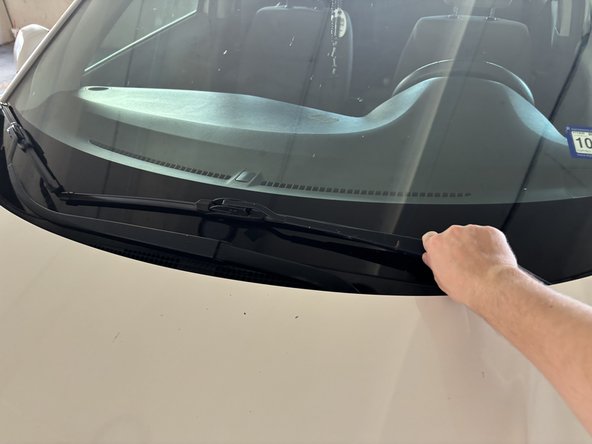

  1. Grip the base of each wiper blade and carefully lift them both.

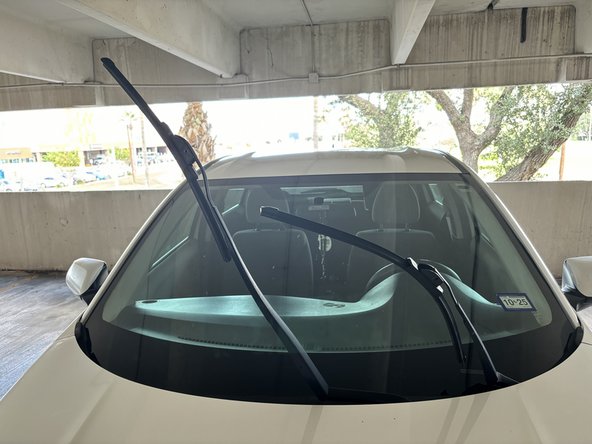

  2. Pull the wiper arms up until they lock in an upright, neutral position.
  3. Step image Step image Step image

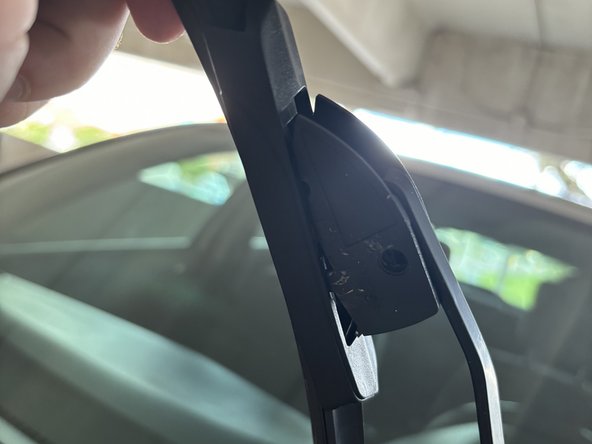

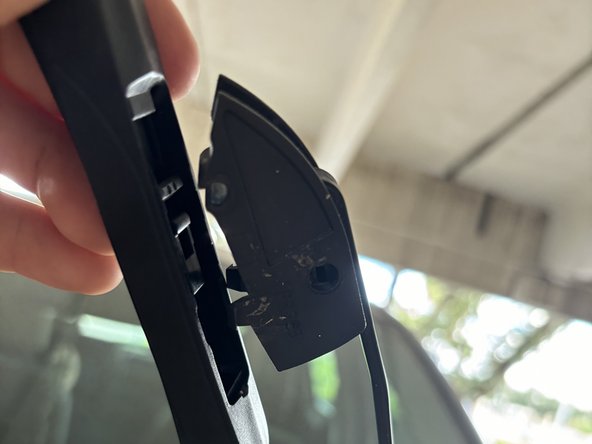

  4. Place one hand on the top of the wiper.

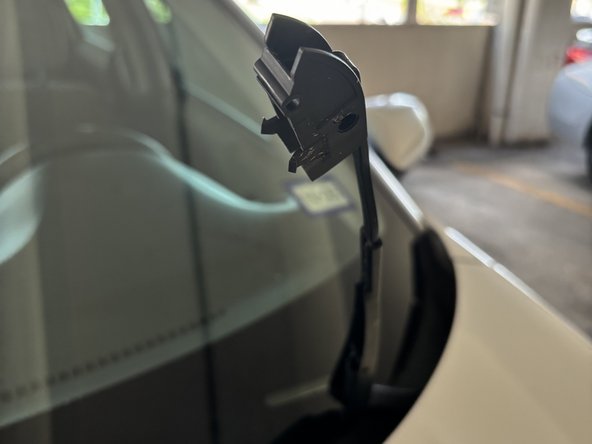

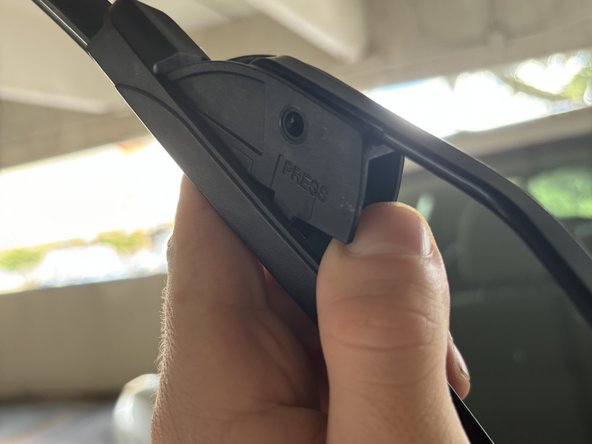

  5. Use your thumb or index finger to press the lever near the "Press" button.
  6. Gently pull and detach the wiper blade from the hook.
  7. Avoid applying excessive force when wiggling the blade to prevent damage to the hook.
  8. Step image Step image Step image

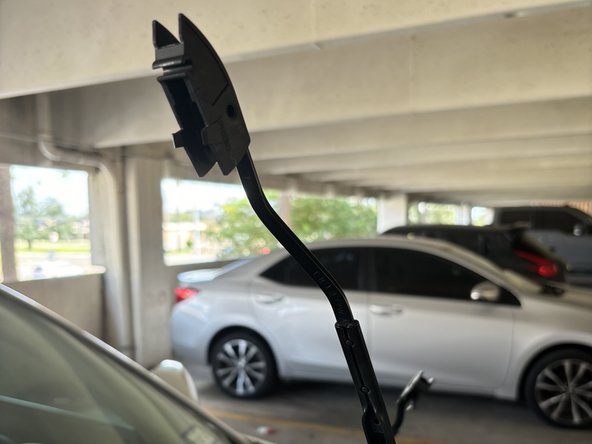

  9. Check the base and connections for signs of cracks, rust, or damage.
  10. If the arm or hook appears compromised, the wipers may be unserviceable.
  11. Step image Step image

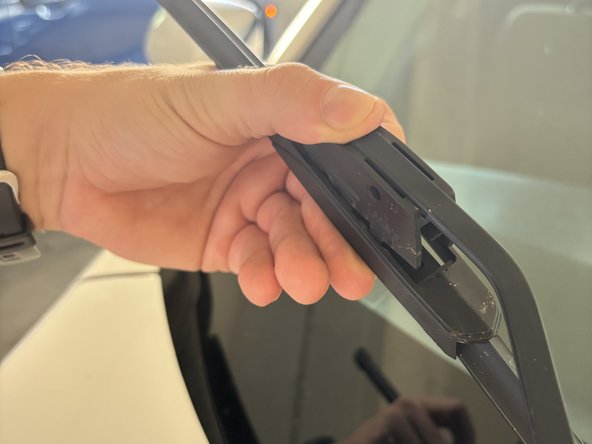

  12. Align the groove on the new wiper blades with the hook on the wiper arm.
  13. Push the new wipers into the hook until you hear a click, confirming they’re secure.
  14. Step image Step image Step image

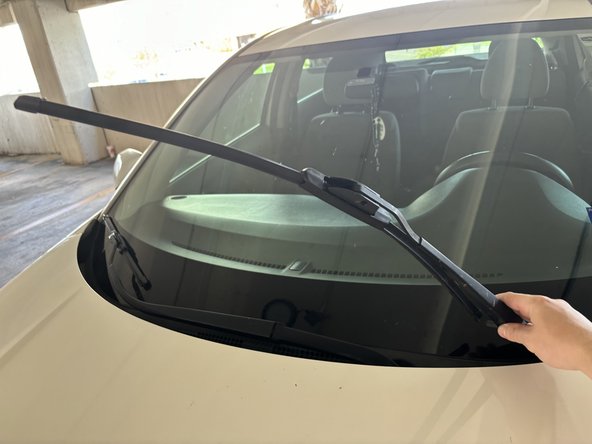

  15. Hold the base of the windshield wipers and gently push them back against the windshield.
  16. Step image Step image Step image
  17. Activate the windshield wipers to spray the windshield.
  18. Ensure the new windshield wiper blades are securely attached to the wiper arms. Test them by activating the wipers to confirm they move smoothly across the windshield and effectively clear water or debris without streaking. Adjust if necessary for optimal performance.
  19. Step image
