Dell 1350cnw Printing Image Output Board Replacement

ID: 178504

Description:

Steps:

1. Insert prying tool behind each end of the plastic strip. Pry outwards to unclip and pull the ends forwards away from the printer.
2. Note - Unclipping the right-hand end requires opening the toner cover for access.

3. Insert prying tool between the front band and top cover of the printer, and pry forwards to release the clips holding the top edge in place.

4. Tilt the top of the front band away from the printer and lift away to remove.

5. Unclip the back end of the plastic trim by prying away from the printer back panel.
6. Pull the trim piece towards the back of the printer.
7. Tilt the top edge away from the printer and lift away to remove.

8. Pry up front edge of the control panel module to unclip.
9. Lift up front edge and pull module forwards slightly to unhook rear edge.
10. Pull out cable connector to unplug the display/ control panel module.

11. Remove the front lower flap by carefully bending in the middle and pulling out the locating pins one end at a time.

12. Remove both 7mm phillips screws securing the front cover in place.

13. Unclip the three clips along each end of the front cover by prying outwards and forwards with a prying tool as shown.

14. Slide out the bottom edge away from the printer and pull the front cover down away from the top edge to remove.

15. Undo both the 5mm M3 phillips screws holding the top cover brackets to the chassis.

16. Pull the top cover brackets forwards off the metal frame and lift up to loosen the front edge of the top cover.

17. Pry the top cover clip off the locating peg at the back of the printer, and lift up the top cover corner.

18. Pry apart the back edge of the top cover and the back cover of the printer to unclip the top cover.

19. Lift up the top cover from the control panel corner, pulling towards the back right-hand corner.
20. Note - The top cover should unclip from the back corner with the corner/side piece still attached.

21. Unclip the back edge of the side cover by prying away from the printer back panel.
22. Pull the top of the side panel away from the printer.
23. Lift up the printer from underneath to release the bottom clips, and the side panel drops away from the printer.

24. Pull out the WiFi module plug from the USB/Ethernet board to disconnect.

25. Unscrew the 7mm phillips screw holding the WiFi module to the printer and remove the WiFi module.

26. Lift up the locking tab to unclip and release the flat flex data cable.
27. Gently pull the flat flex cable out from from the connector.

28. Pull the smaller flat flex cable out from its connector to remove, and repeat for the remaining two connectors.

29. Unscrew the 4mm M3 phillips screw holding the USB connector to the rear cover plate.
30. Unscrew the four 5mm M3 phillips screws holding the USB/Ethernet board to the bracket and remove the board from the printer.

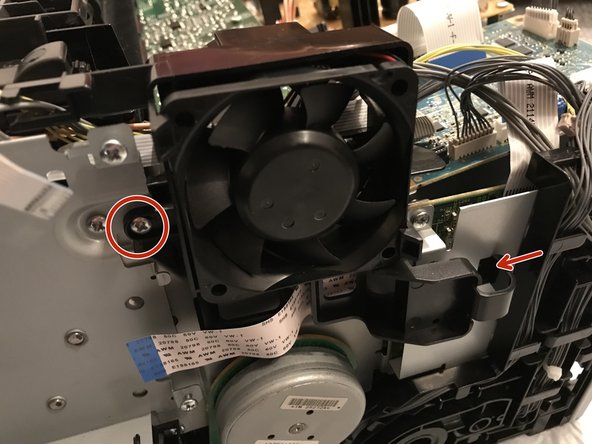

31. Unscrew the 5mm M3 phillips screw from the fan bracket.
32. Unhook the retaining clip on the lower right-hand side of the fan bracket to loosen from the printer.

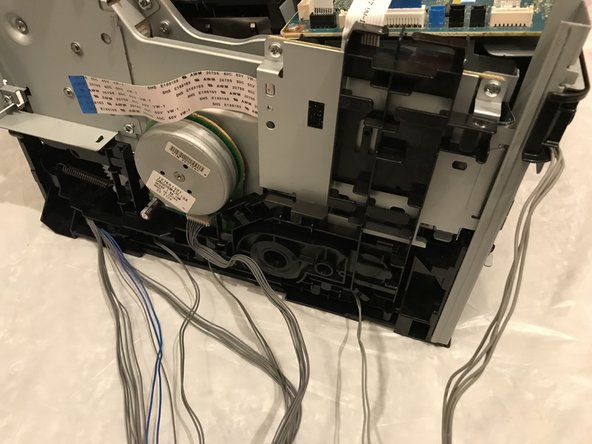

33. De-route the cables from the USB/Ethernet board and remove from the harness on the back of the fan shroud.

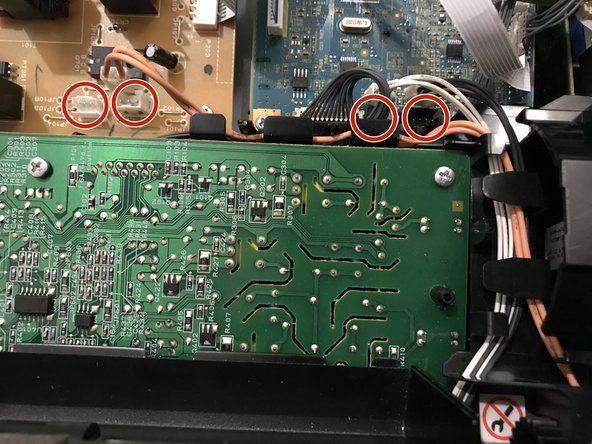

34. Pull out the four circled cable connectors to unplug, and de-route the remaining cables from the wiring harness.

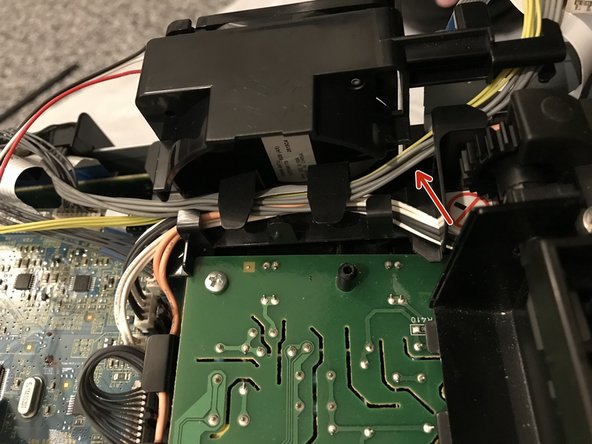

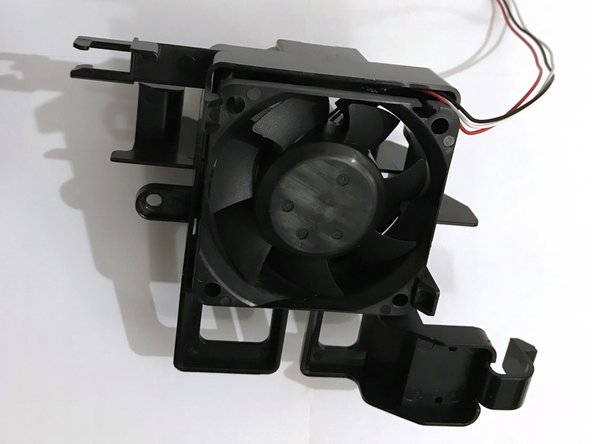

35. Lift away the fan/bracket assembly from the printer to remove.

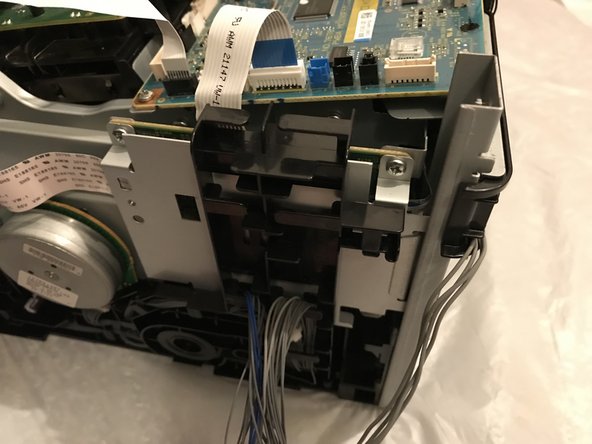

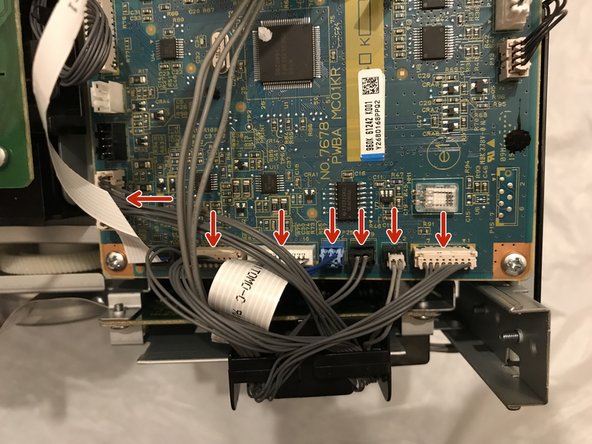

36. Pull out all the indicated cable plugs from the main control board.
37. De-route all the cables from the wiring harness on the side of the printer.

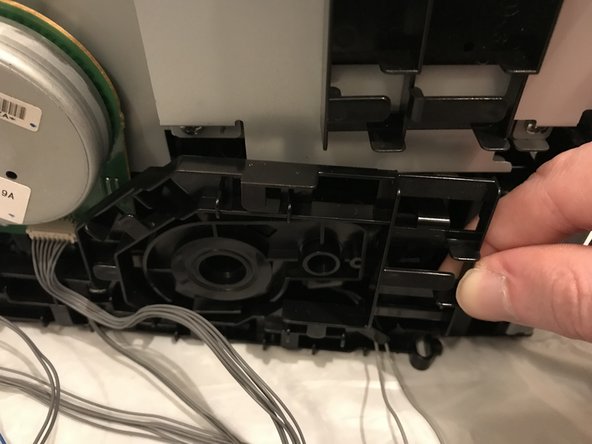

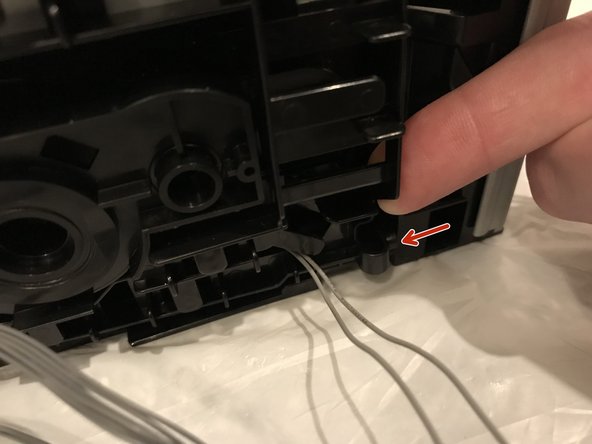

38. Push in the retaining pin on the lower right-hand corner of the lower cable bracket, pulling the bracket out slightly away from the printer.

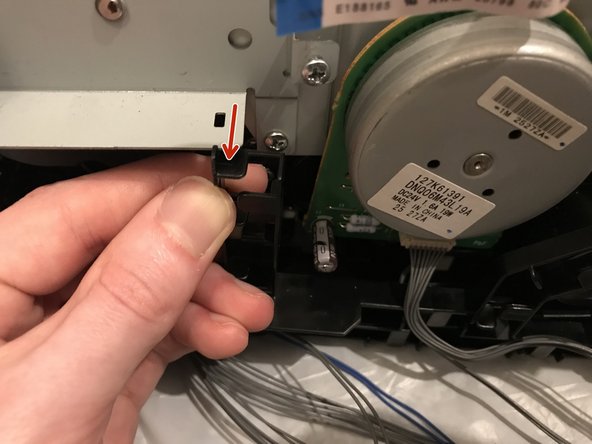

39. Push down the retaining pin on the top left of the cable bracket, and pull down and out from under the USB/Ethernet board support bracket.
40. Pull the cable bracket away from the printer.

41. Pull out the flat flex cable to remove from the top of the image output board.
42. Unscrew the four 5mm M3 phillips screws at the corners of the image output board over plate.

43. Flip up the retaining bar on each of the five flat flex cable connectors and gently lift out the cable to remove.
