2007-2011 Toyota Camry Inner Tail Light Replacement

ID: 178982

Description: Use this guide to replace the trunk-mounted...

Steps:

1. Open the trunk to locate the tail light assembly.
2. Use a car trim removal tool to undo the fasteners securing the trunk lining near the tail light.
3. Carefully pull back the trunk lining near the tail light area to expose the the tail light assembly.

4. Gently pull the assembly out from the car’s body, taking care not to damage any connected wires.

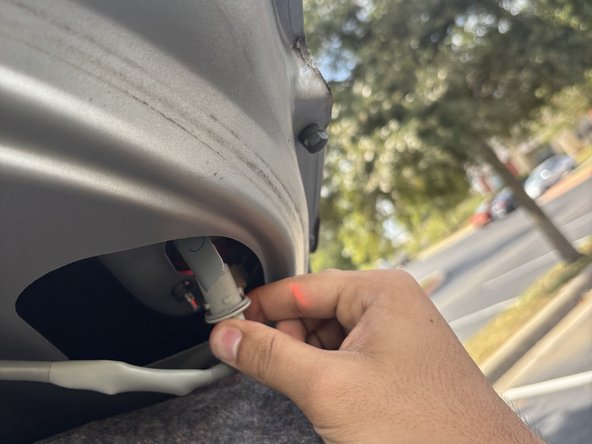

5. Twist the tail light bulb counterclockwise to release it, then pull it straight out.
6. Insert the new bulb into the socket, ensuring it is firmly secured.
7. Twist the socket back into the assembly to lock it in place.
8. Reattach the tail light assembly to the car and secure it firmly with the screws.

9. Push the trunk's lining back into place and replace the fasteners.
10. Close the trunk and turn on your lights to verify that the new bulb is working correctly.
11. Repeat Steps 1-4 on the other tail light.
