HTC Vive Pro 2 Face Rest Replacement
ID: 180857
Description: Use this guide to replace the face rest in your...
Steps:
- Rotate the head strap forward as far as it will go.
- Unplug the All-In-One Cable from your headset.
- Remove the All-In-One Cable from the cable guides along the left side of the head strap.
- During reassembly, connect the All-In-One Cable to the headset before routing it through the cable guides. This will ensure it has the right amount of slack.
- Separate the top strap from itself where the Velcro secures it.
- Peel back the Velcro securing the rear of the top strap.
- Feed the top strap out through the head strap to partially remove it.
- Feed the top strap through the clip near the front of headset to fully remove it.
- Peel off both front side foam pads to uncover the speaker wires.
- Use the point of your spudger to pry out the two rubber spacers next to the headphone screws.
- Be careful not to accidentally pry any of the speaker wires under the rubber spacer.
- Use the point of your spudger to pry up and disconnect both the left and right headphone speaker wires.
- Use a T6 Torx screwdriver to remove the two 12.1 mm screws (one on each side) securing the head strap to the headset.
- Use a T5 Torx screwdriver to remove the following screws securing the head strap to the headset:
- Four 3.9 mm screws (two on each side)
- Two 4.1 mm screws (one on each side)
- Remove the two plastic spacers underneath the previously removed Torx T6 screw.
- Thread the headphone speaker wires out through both ends of the head strap.
- The four screws securing the outer shell are covered with black stickers. If the stickers are difficult to remove, simply press your T6 Torx driver through them.
- Use a T6 Torx screwdriver to remove the four 3.9 mm screws (two on top, two on bottom) securing the outer shell to the headset.
- Insert an opening pick into the seam between the two halves of the outer shell.
- Slide the opening pick through the seam to dislodge the clips securing it to the headset.
- Only insert the opening pick as far as necessary. There are ribbon cables underneath the outer shell.
- Continue sliding the opening pick through each seam until all clips have been dislodged.
- Carefully slide each half of the outer shell off of the sensor array.
- Be careful not to snag any of the ribbon cables underneath.
- Use your fingers to gently peel the face rest cushion off of the headset.
- Use the point of your spudger, or a clean fingernail, to flip up the locking tab on the microphone ZIF connector on the daughterboard.
- Use tweezers, or your fingers, to pull the microphone cable straight out of its socket.
- Use tweezers, or your fingers, to peel the conductive fabric off the sensor array ZIF connector on the motherboard.
- Use your spudger, or a clean fingernail, to flip up the locking tab on the sensor array ZIF connector.
- Use your fingers to grip the left and right sides of the sensor array cable and pull it straight out of its socket.
- Use a T5 Torx screwdriver to remove the four 3.0 mm‑long screws securing the top of the sensor array.
- Use a T6 Torx screwdriver to remove the four 3.8 mm‑long screws securing the front of the sensor array.
- Lift the sensor array straight off the lens assembly and remove it, making sure you thread the cable through its slot.
- During reassembly, make sure the sensor assembly cable is threaded through its slot before continuing.

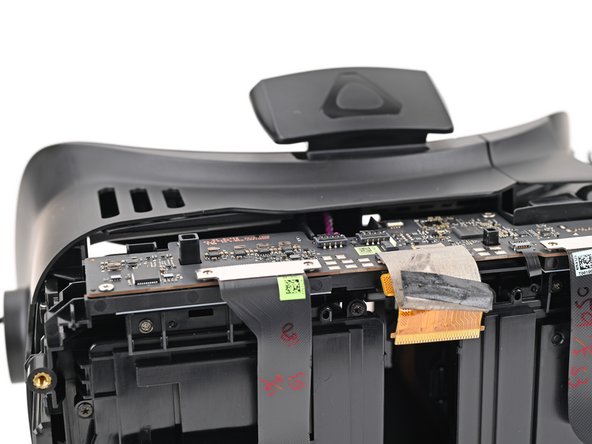

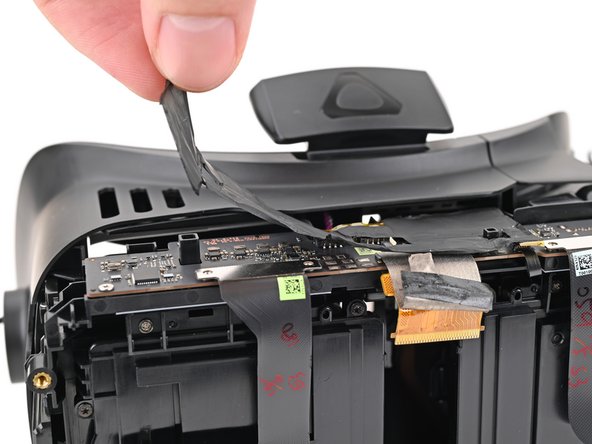

- Use your fingers to peel up the thermal pad covering the daughterboard.
- The thermal pad will likely remove the Kapton tape from the ZIF connectors on the daughterboard. Replace the Kapton tape if necessary.
- Set aside the thermal pad. You'll reuse it during reassembly.

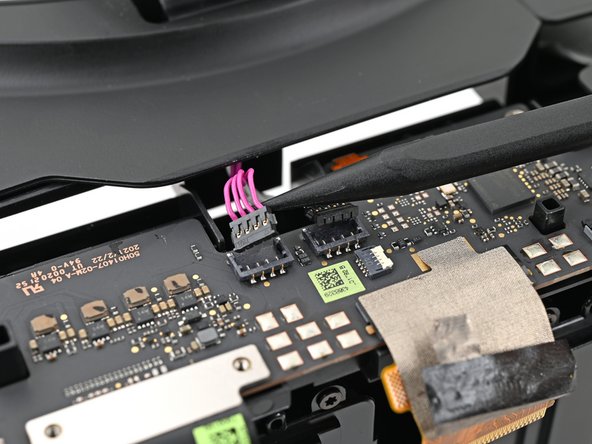

- Use the point of a spudger to pry up and disconnect both of the headphone cables from the daughterboard.
- Pry as close to the head of the connector as possible, as you risk breaking off the wires if you pry further away.

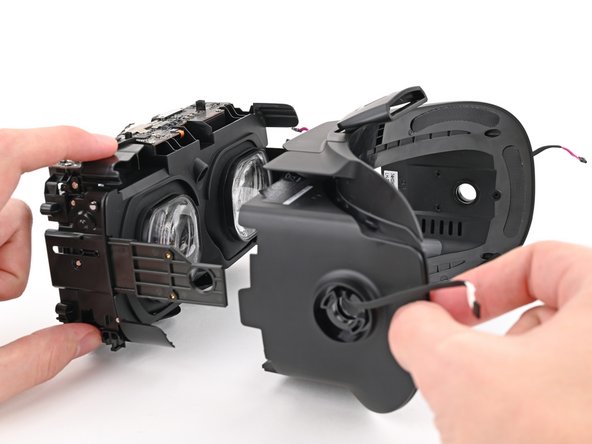

- Slide the face rest off the lens assembly and remove it.
