Replace the Saeco Xelsis / GranAroma valve block

ID: 181090

Description: In these devices, the fluid flow is controlled...

Steps:

  1. Never forget: Unplug the machine!
  2. Remove all attachments such as the water tank, brewing unit, bean compartment lid, and drip tray. Remove all coffee beans.
  3. Turn the machine over so that the back is facing you. Remove the two Torx T10 screws at the bottom. Pull the back out slightly at the bottom and lift it down.
  4. Important components are immediately visible:
  5. The main circuit board
  6. The pump
  7. The flow meter
  8. The boiler
    9. Step image Step image
  9. Unscrew the Torx T10 screw on the finger guard in the coffee bean compartment.
  10. Lift out the finger guard.
  11. The screw is especially long.
  12. Unscrew the three Torx T10 screws in the coffee bean compartment.
    13. Step image Step image
  13. Lift the upper cover slightly at the rear edge.
  14. Then lift the cover completely off.
  15. When reassembling, make sure that the grinder adjustment is correctly positioned.
  16. Figure 3 shows the grinding mechanism, which can now easily be removed.
    17. Step image Step image Step image
  17. Unscrew the two Torx T10 screws at the bottom of the front.
  18. Slide the right side panel back slightly and remove it.
  19. Slide the left side panel back slightly and remove it.
    20. Step image Step image Step image
  20. Hier weitere wichtige Bauteile:
  21. The boiler
  22. Valve block, consisting of four solenoid valves
  23. Grinder
  24. Drive
    25. Step image Step image

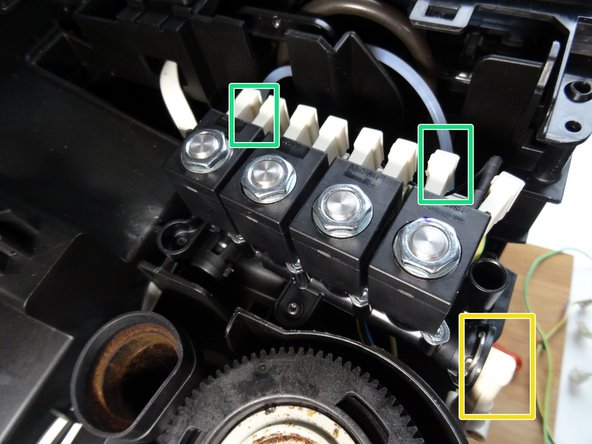

  25. Remove the three Torx T10 screws that secure the valve block. Lift the valve block out slightly.

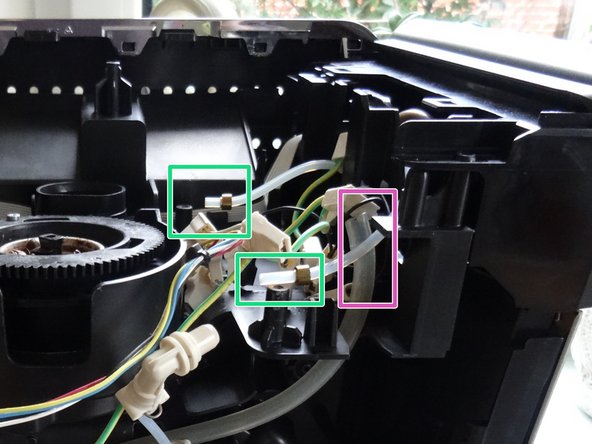

  26. All cable bundles are connected to the new valve block. Simply follow the two cable bundles to the main circuit board and disconnect them there. Detach the bundles. They have not been removed in the third image, but it is easier without them.
  27. Pull out the large clamp on the inlet of the pump and remove the white plastic inlet. Pay attention to the sealing ring inside. Get a new one or use it for the new valve block.
  28. Remove the small clips on the two pressure hoses and pull off the two pressure hoses. Pay attention to the two sealing rings inside each one. Get four new ones (this is better) or reuse them for the new valve block.
  29. Slide off the white silicone tube.
  30. The valve block is free, you can remove it.
    31. Step image Step image Step image
