PBB-272C Powered Proto Bread Board Use

ID: 181121

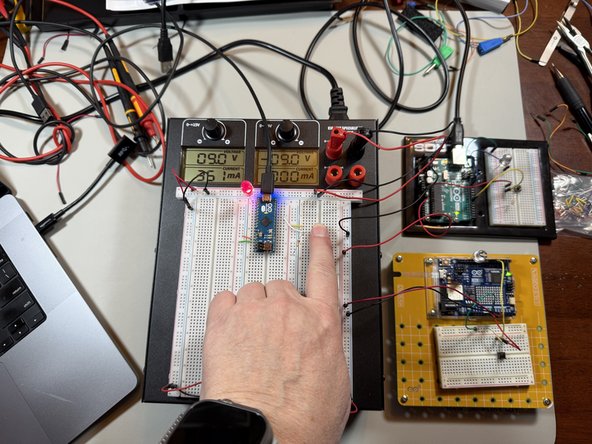

Description: Place the proto board in your work area where...

Steps:

1. (MAKE SURE NO POWER IS APPLIED TO BOARD WHEN BUILDING CIRCUIT)
2. Add your components like IC chips, microcontroller etc to the board.
3. Add wires as needed based on your schematic.

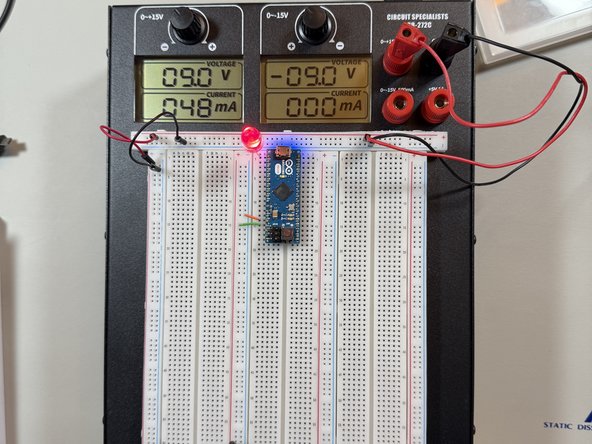

4. Adjust power supplies as needed. Connect power to circuit. Test your circuit
5. Remove your components and plan for next build.
