iPhone 16 Pro Rear Cameras Installation

ID: 181159

Description: Reassembly steps to install the rear cameras in...

Steps:

1. Align the rear camera assembly with its screw posts and place it in its recess in the frame.
2. Make sure the camera cables route through the channel between the battery and the logic board.

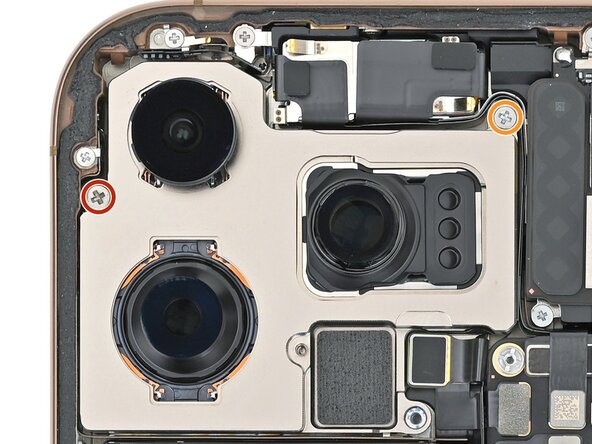

3. Use a Phillips screwdriver to install the two screws securing the rear cameras:
4. One 2.9 mm‑long screw
5. One 3.8 mm‑long screw

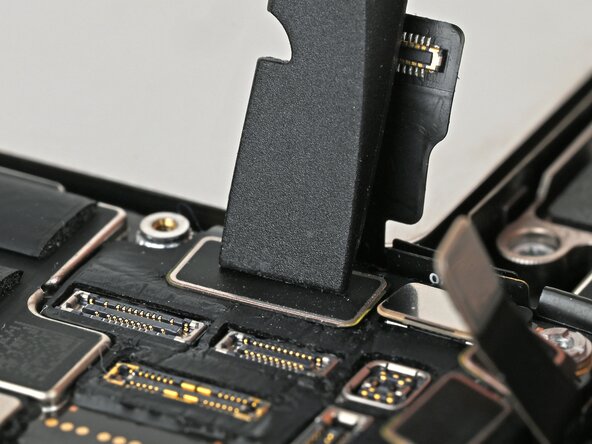

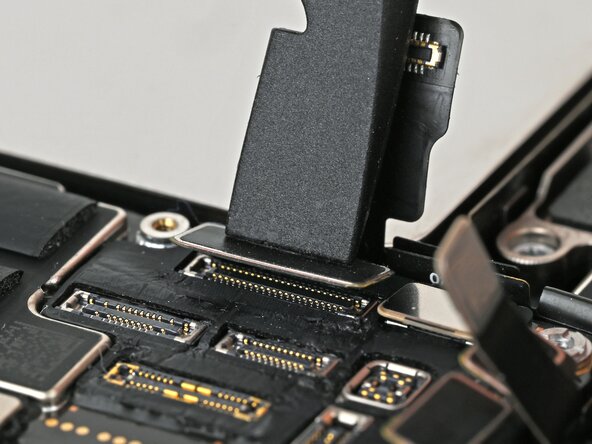

6. Use your finger or a spudger to connect the first rear camera connector, located on the left edge of the logic board.

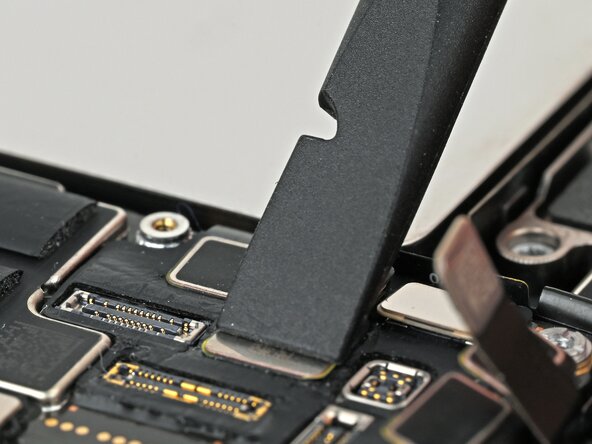

7. Connect the second camera connector above the first connector.
