iPhone 16 Pro LiDAR Sensor Installation

ID: 181161

Description: Reassembly steps to install the LiDAR sensor in...

Steps:

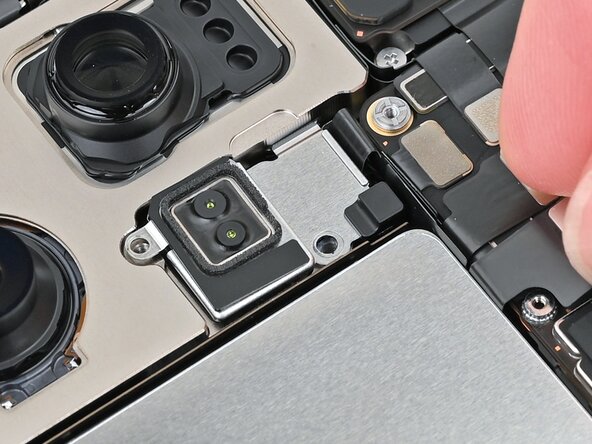

1. Set the LiDAR sensor in the phone aligned with its screw holes.
2. Make sure the LiDAR sensor's cable sits flush between the battery and logic board.

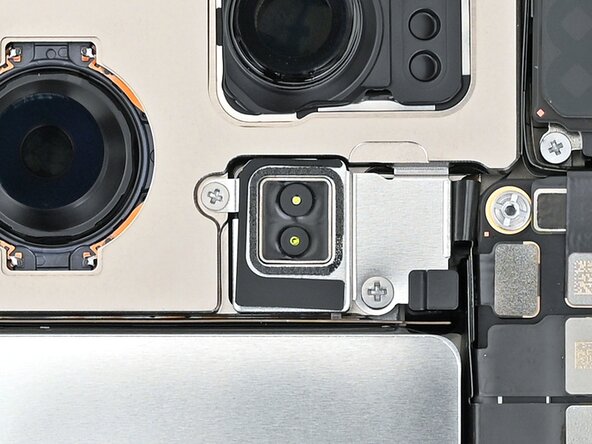

3. Use a Phillips screwdriver to install the two screws securing the LiDAR sensor:
4. One 1.7 mm‑long screw
5. One 3.0 mm‑long screw

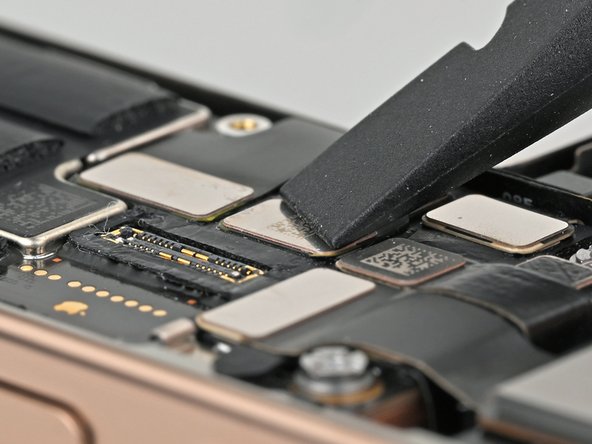

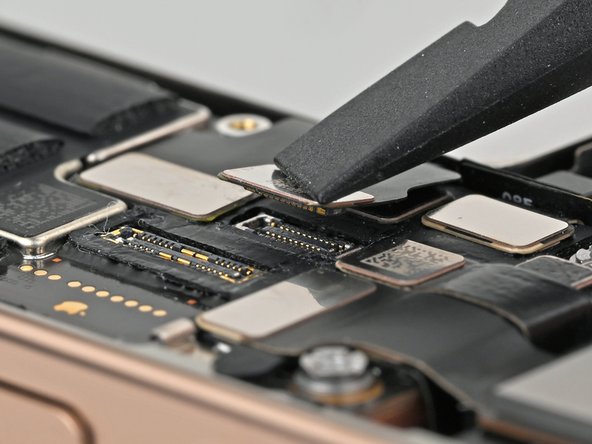

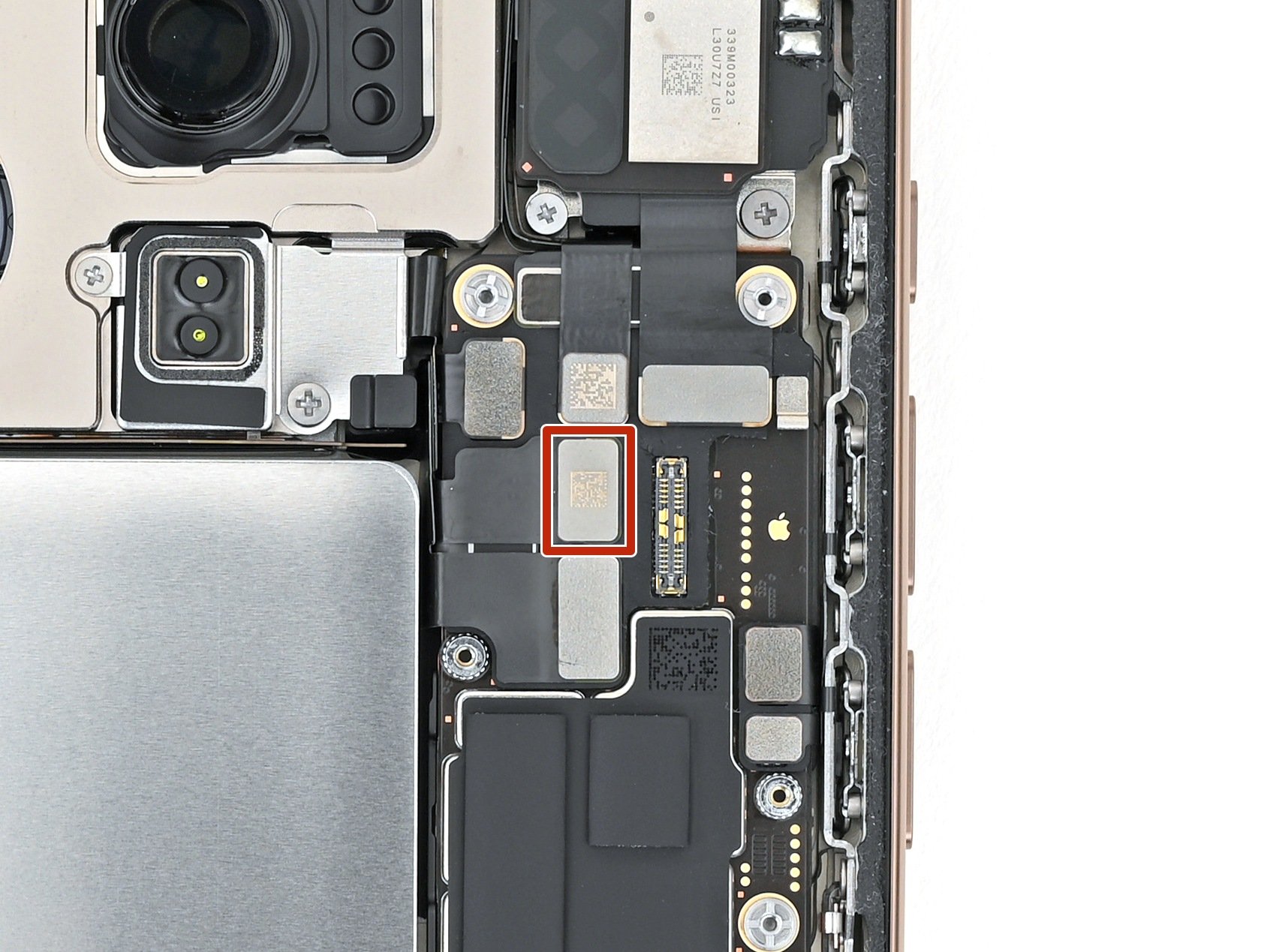

6. Connect the LiDAR sensor press connector, located in the center of the logic board.
