iPhone 16 Pro Loudspeaker Installation

ID: 181225

Description: Reassembly steps to install the loudspeaker in...

Steps:

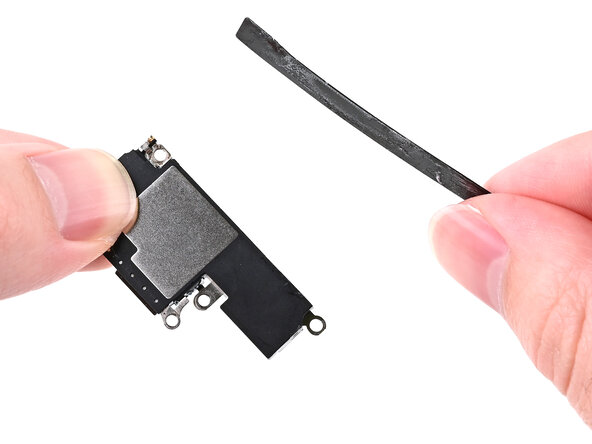

1. If the black plastic shim beneath the battery didn't come out with the loudspeaker, skip this step.

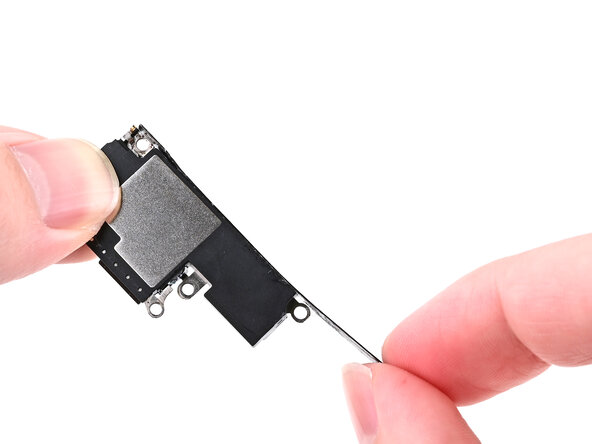

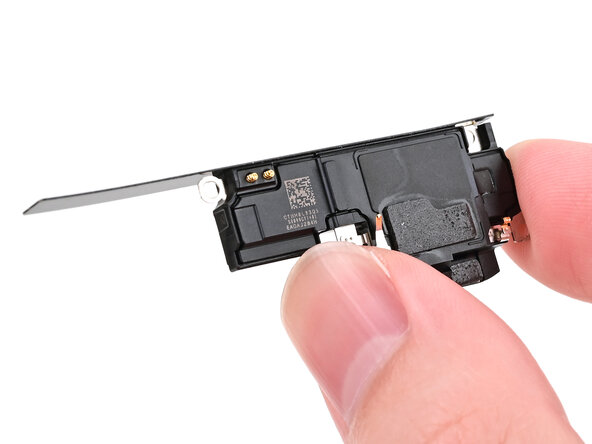

2. Align the battery shim so it's flush with the new loudspeaker's left edge and underside. Press it onto the loudspeaker to adhere it.
3. If the shim isn't sticky, set it into the phone alongside the loudspeaker in the next step.

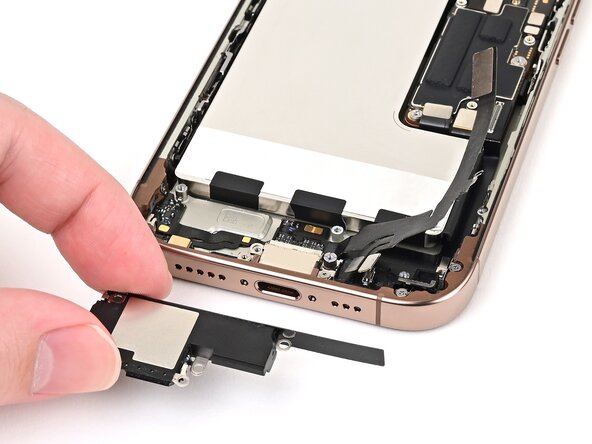

4. Align the bottom edge of the loudspeaker with the frame.

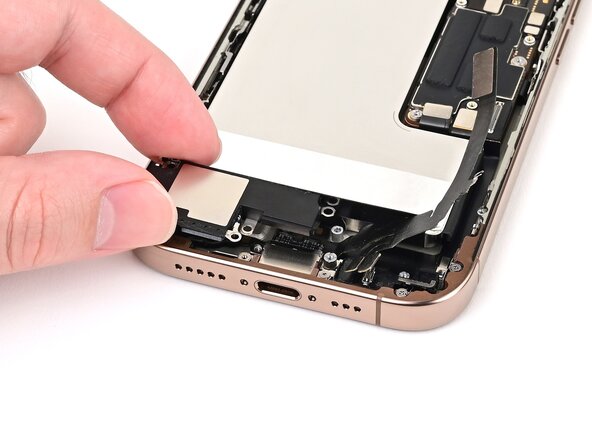

5. Set the loudspeaker into its recess.

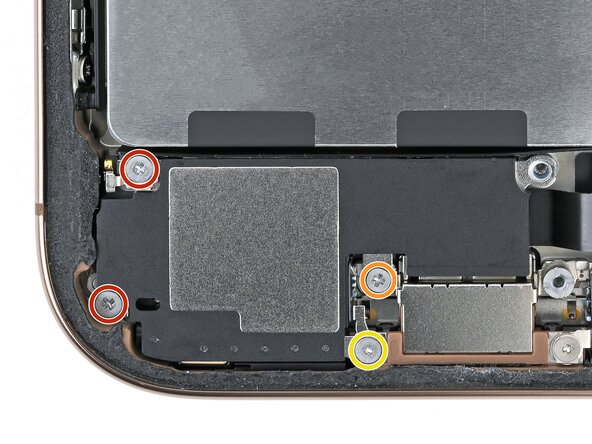

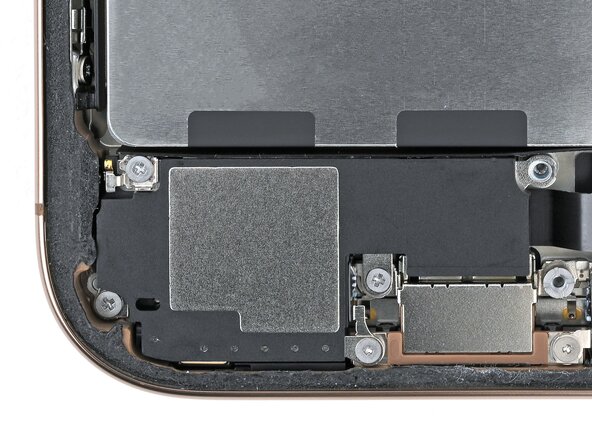

6. Install the four screws securing the loudspeaker:
7. Two 1.6 mm‑long Phillips screws
8. One 2.0 mm‑long Phillips screw
9. One 1.3 mm‑long tri-point Y000 screw
