iPhone 16 Pro Front Camera Assembly Installation

ID: 181227

Description: Reassembly steps to install the front camera...

Steps:

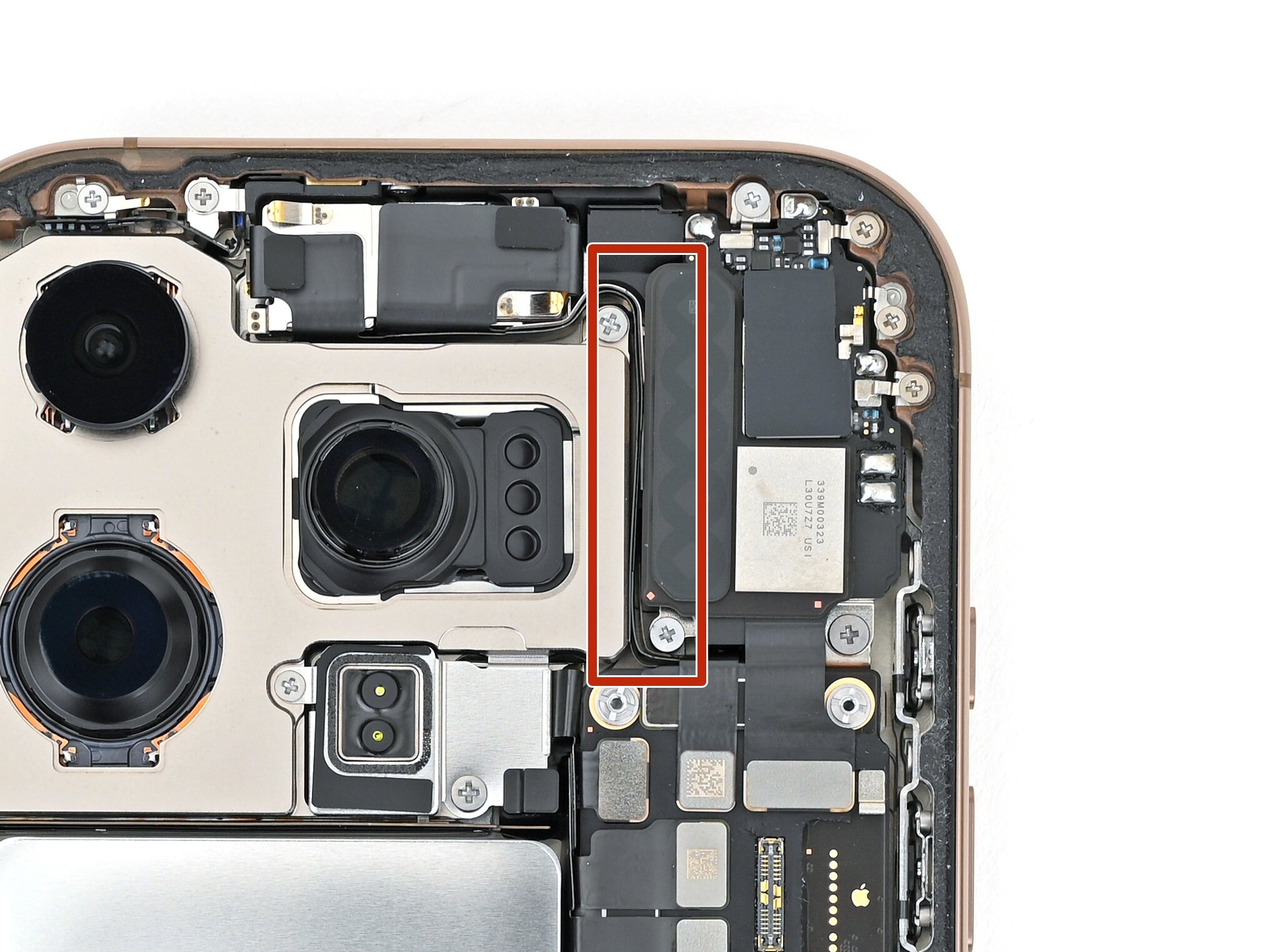

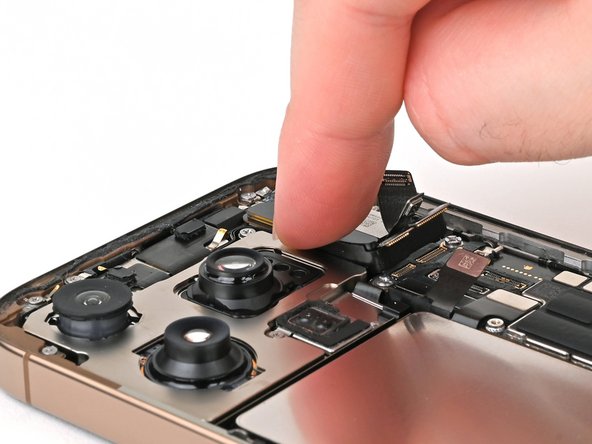

1. Lay the front camera assembly in its recess.

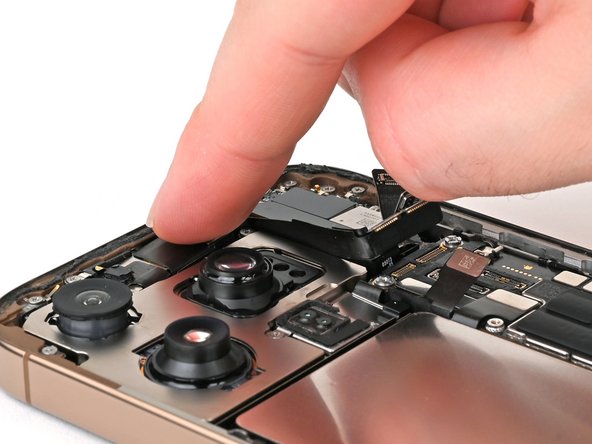

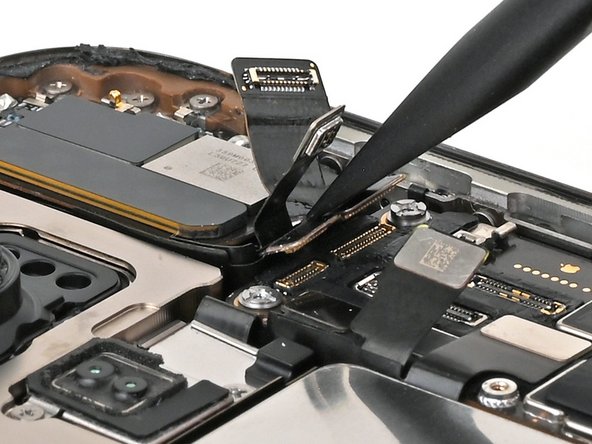

2. Gently tuck the camera flex cables into the gap between the rear camera assembly and the earpiece speaker assembly.

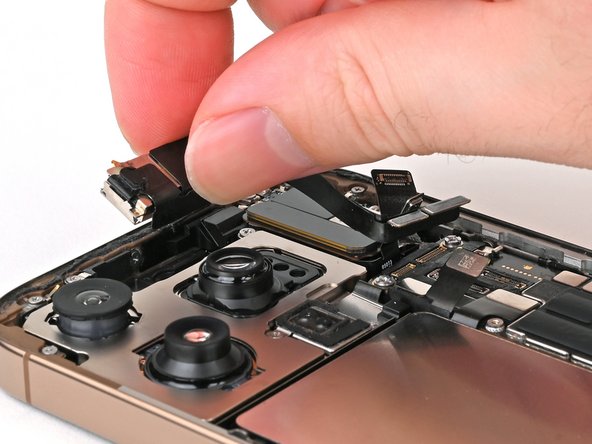

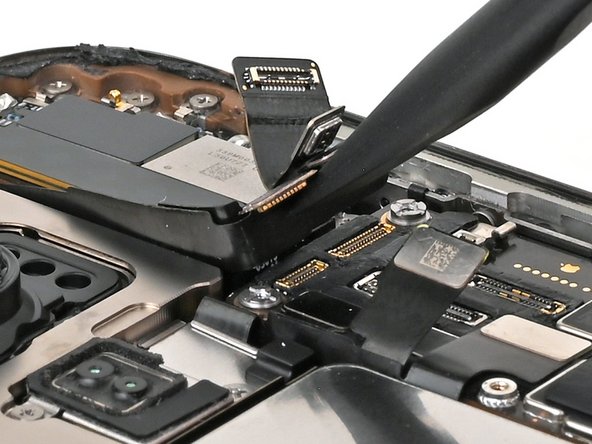

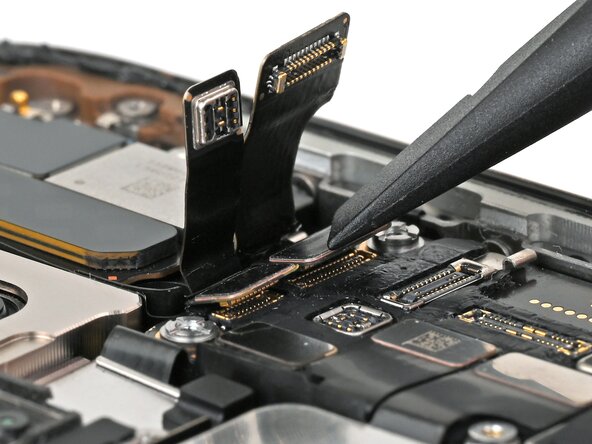

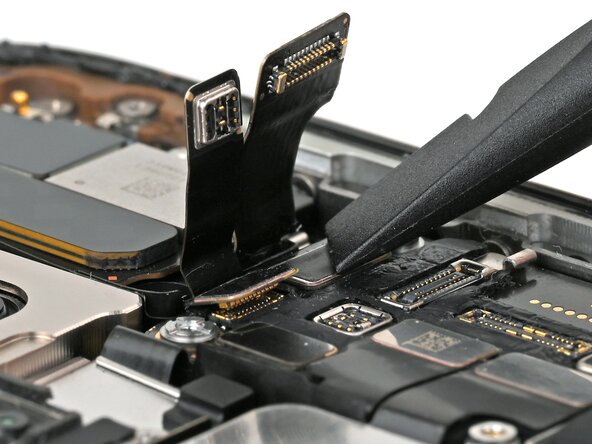

3. Use your fingers or a spudger to push the front camera flex cables up towards the earpiece speaker, then tuck them in the gap between the earpiece speaker and the logic board.

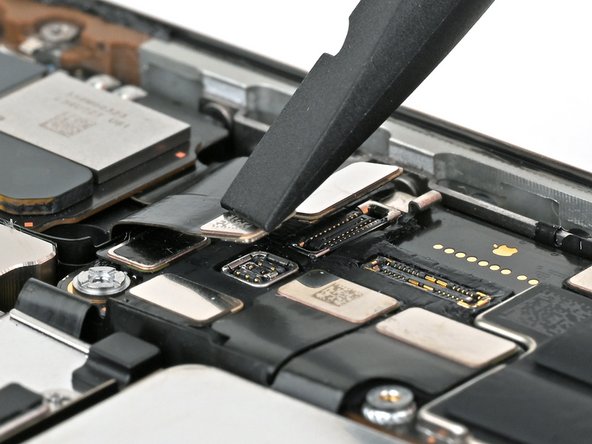

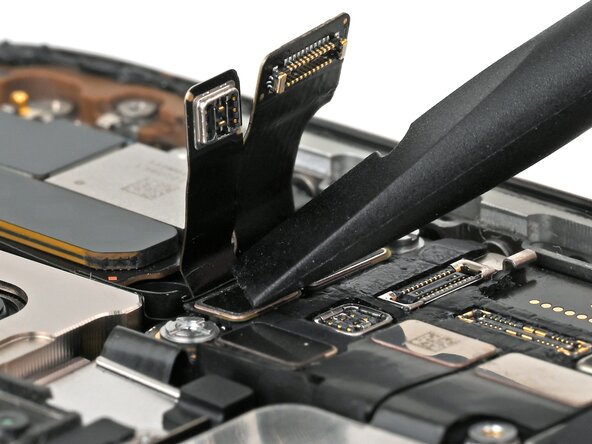

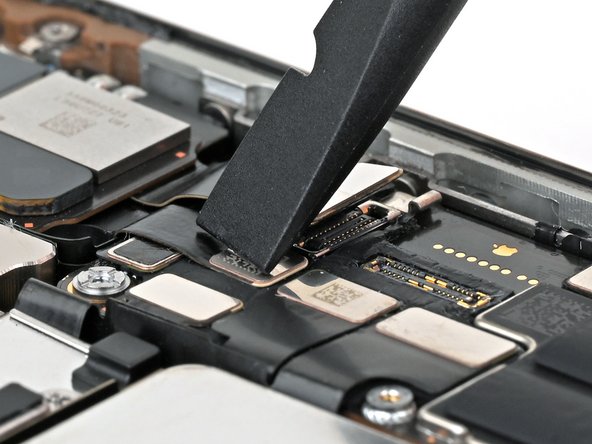

4. Use your finger or a spudger to connect the two front camera assembly press connectors, located on the top edge of the logic board.

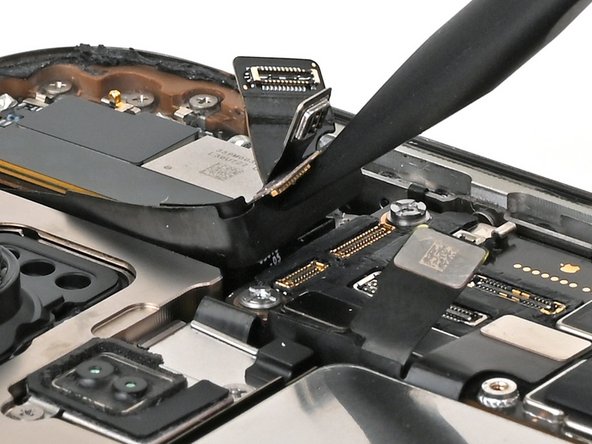

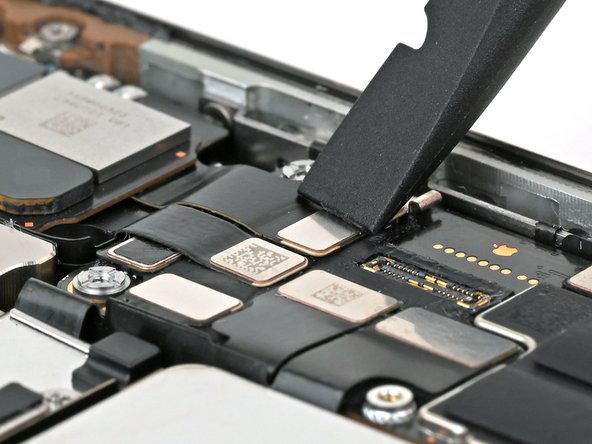

5. Use your finger or a spudger to connect the earpiece speaker and 5G mmWave antenna (US models only) press connectors, located on the top right corner of the logic board.
