HP Chromebook 14a-nf009nr Back Cover Replacement

ID: 185639

Description: The back cover of the HP Chromebook 14a-nf009nr...

Steps:

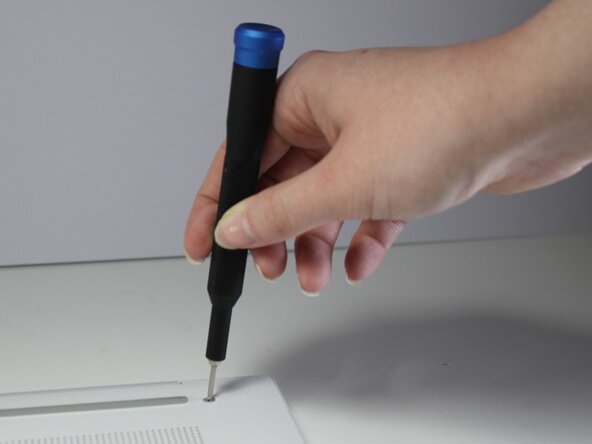

  1. Remove the two 13 mm screws with a Phillips #00 screwdriver.
  2. Remove the two 6.6 mm screws with the Phillips #00 screwdriver.
  3. Step image Step image

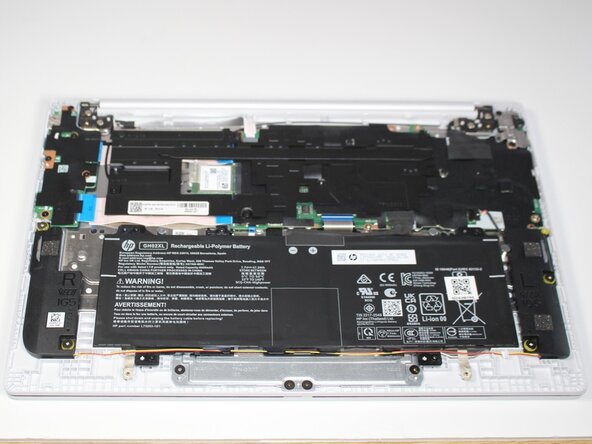

  4. Slide an opening tool along the edges of the back cover to remove it, revealing the components of the laptop underneath.
  5. Step image Step image
