How to Replace the Thermal Pad In Your Framework Laptop 12

ID: 186453

Description: Follow this guide to replace the thermal pad...

Steps:

  1. Before you begin repairs, unplug your laptop and shut it down from the operating system. This ensures that the laptop isn't in standby/suspend mode.
  2. The indicator LEDs along the edges should be unlit. The laptop should be silent.
  3. If you accidentally turn on the laptop during repair, hold the power button down for 10 seconds to shut it down.
  4. Make sure your Framework Screwdriver has the T5 Torx bit (labeled as T-5) facing outwards. If it's not, pull the bit out and flip it.
    5. Step image Step image Step image
  5. Set your Framework Laptop face-down on a clean work surface.
    6. Step image
  6. Use your Framework Screwdriver to fully loosen the eight captive T5 Torx screws on the bottom of your laptop.
  7. Most screws in your Framework Laptop (including these) are captive—they're designed to stay in place after you loosen them.
    8. Step image Step image
  8. Flip your laptop over so it's face-up on your work surface.
    9. Step image
  9. Open the laptop lid so that both the screen and the base lie flat on your work surface.
    10. Step image Step image
  10. Use your fingers to grip the Input Cover in the hinge cutouts.
  11. Lift upwards to swing the Input Cover up from the base of the laptop.
  12. Magnets hold the Input Cover down, so you'll feel some resistance. If it feels stuck, check that you've fully loosened all the screws on the bottom of your laptop.
  13. Remove the Input Cover.
    14. Step image Step image Step image

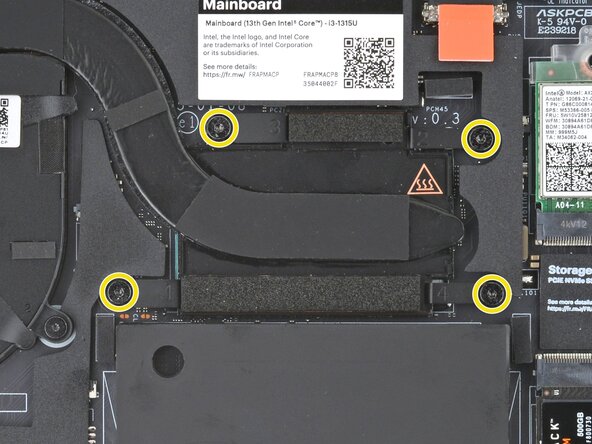

  14. Use your Framework Screwdriver to loosen the captive Torx T5 screws securing the heatsink:
  15. Four captive screws (Intel 13th Gen models)
  16. Three captive screws (Intel Core Series 3 models)
    17. Step image Step image
  17. Slide the flat end of your Framework Screwdriver under the heatsink arm labeled "2".
  18. Twist the Framework Screwdriver to lift the heatsink arm and loosen the heatsink.
  19. You'll feel some resistance from the thermal compound holding the heatsink in place.
  20. If the heatsink won't budge, make sure you've fully loosened the four screws securing the heatsink.
  21. Repeat the procedure with the heatsink arm labeled "3".
    22. Step image Step image Step image
  22. Lift and remove the heatsink.
    23. Step image Step image
  23. Congratulations on completing disassembly! The remaining steps will show how to reassemble your Framework Laptop.
    24. Step image
  24. Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.
    25. Step image
  25. If you're reusing the heatsink:
  26. Use the flat end of your Framework Screwdriver to scrape and remove the thermal compound residue from the heatsink.
  27. Use a few drops of high concentration (>90%) isopropyl alcohol and a lint-free cloth to wipe away the remaining residue.
    28. Step image Step image
  28. The next two steps show how to install a thermal pad. If you're using thermal paste instead, skip down two steps.
  29. The thermal pad is covered with liners on both sides.
  30. Use your fingers to carefully remove the thermal pad and liners from its container.
  31. Peel the stiffer, clear liner away from the thermal pad.
  32. If you have trouble handling your thermal pad, place it in your fridge for a few minutes to make it more rigid.
    33. Step image Step image
  33. Place the thermal pad over the processor, making sure it covers both raised blocks.
  34. The Intel Core Series 3 CPU looks a little different.
  35. Use your fingers to press the thermal pad onto the processor blocks.
  36. Peel the colored liner away from the thermal pad.
  37. Skip the next step.
    38. Step image Step image Step image
  38. This step shows how to install thermal paste.
  39. Apply a small bead of thermal paste to the small processor rectangle.
  40. Apply a small line of thermal paste to the larger processor rectangle.
  41. Thermal paste is non-conductive, so don't worry if it spills over the rectangles.
    42. Step image
  42. Carefully align and lay the heatsink over the processor.
  43. Use your Framework Screwdriver to gradually tighten the heatsink screws in the marked order until they're snug:
  44. First screw
  45. Second screw
  46. Third screw
  47. Fourth screw, then back to the first
  48. Intel Core Series 3 models only have three screws.
  49. This helps compress the thermal compound evenly under the heatsink and apply even pressure over the processor.
    50. Step image Step image Step image
  50. Angle the bottom edge of the Input Cover towards the base of the laptop.
  51. Align and insert the bottom edge of the Input Cover into the base of the laptop.
  52. Make sure the slots along the bottom edge of the Input Cover slide into the tabs in the base.
  53. Lower the Input Cover's top edge onto the laptop until the magnets snap it in place.
  54. Make sure the Input Cover sits neatly within the laptop frame and no corners are popping up.
    55. Step image Step image Step image
  55. Close the laptop lid.
  56. Flip your laptop face-down on a clean work surface.
    57. Step image Step image
  57. Use your Framework Screwdriver to tighten the eight captive T5 Torx screws on the bottom of your laptop.
  58. Tighten the screws until they're snug. Don't over-tighten them, or you may strip the screws.
    59. Step image Step image
