LG CU515 SKU 64743 Device SIM Card Replacement

ID: 19058

Description: This guide teaches a user how to remove the SIM...

Steps:

  1. Locate the raised tab at the top of the back cover.
  2. Holding the phone in one hand and using your thumb on your other hand, push down on the tab until the cover detaches from the phone.
  3. Slide the cover down until it is completely removed from the phone.
  4. Step image Step image Step image
  5. Holding the phone in one hand and using your index finger on your other hand, remove the battery from the phone by prying it out at indention located at the bottom of the phone.
  6. Step image Step image Step image

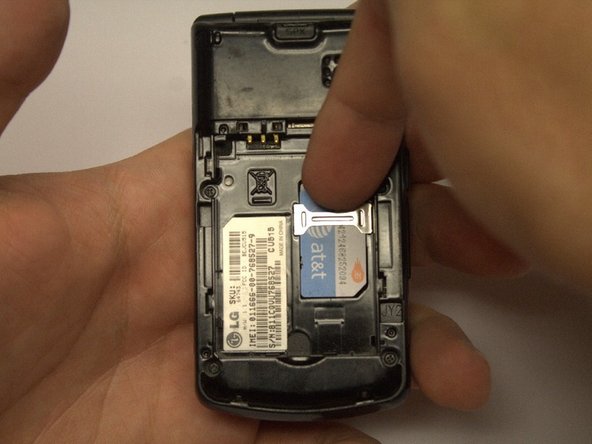

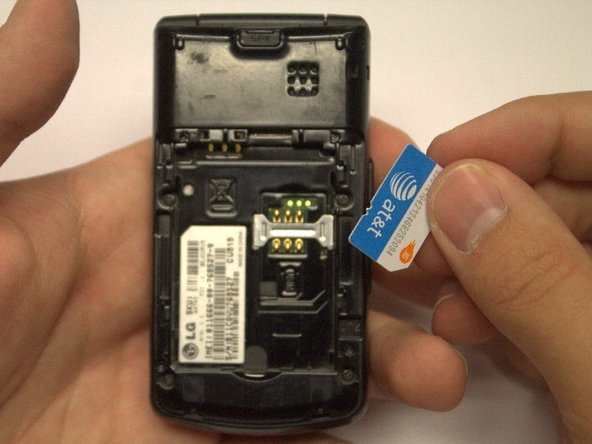

  7. Holding the phone in one hand and using your thumb on your other hand, push the SIM card towards the bottom of the phone and out from under the metal retaining clip holding it in place. It should slide out relatively easy.
  8. Step image Step image Step image
