Cobra 29 LTD Classic Power Port Replacement

ID: 19288

Description: The power connector connects to the power port...

Steps:

1. Turn the power switch, the leftmost knob, counterclockwise to off.

2. Turn the device around and firmly pull the power cable plug to remove it from the radio.

3. Unscrew the securing cap counterclockwise from the antenna connector.

4. Gently pull the antenna cable to remove it from the back of the radio.

5. Unscrew the cap counterclockwise on the microphone plug to disconnect the cable.

6. Gently unplug the microphone plug.

7. Unscrew the top four 6.0mm Phillips head screws counterclockwise on the left and right side of the device using a #1 Phillips head screwdriver.

8. Gently life and remove the top cover.

9. Gently set down on a hard, flat, non-conductive surface to minimize risk of shock or breaking your radio.
10. Carefully flip the radio over.

11. Unscrew the four 6.0mm Phillips head screws counterclockwise on the left and right side of the device that connect the remaining cover, using a #1 Phillips head screwdriver.

12. Watch out for the wires connected to the speaker. These short wires will not allow you to move the cover very far.
13. Gently lift and remove the case cover.

14. De-solder the yellow wire that is connected to the power port, with a soldering iron and the desoldering wick.
15. During reassembly you will need to resolder the components back together.

16. The wire may still be hot, so let it sit for 30 seconds before continuing.
17. Remove the yellow wire from the power port.

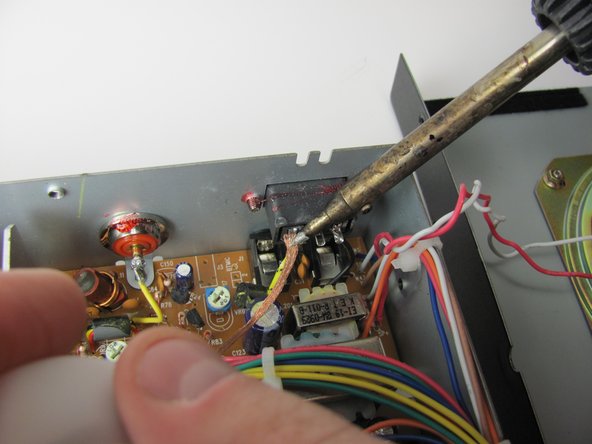

18. De-solder the black wire that is connected to the power port, with a soldering iron and the desoldering wick.
19. During reassembly you will need to resolder the components back together.

20. The wire may still be hot, so let it sit for 30 seconds before continuing.
21. Remove the black wire from the power port.

22. Unscrew the two 6mm Phillips screws counterclockwise, using a #1 Phillips head screwdriver.
23. If screws have lock-tight glue on them, use a strong force to initially remove the screws from the device.

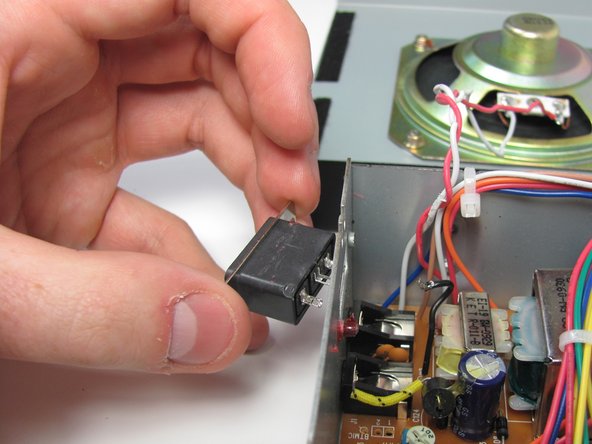

24. Gently pull the power port out of the case.
