Framework Laptop 12 Stylus Tip Replacement

ID: 193298

Description: Follow this guide to remove and replace a...

Steps:

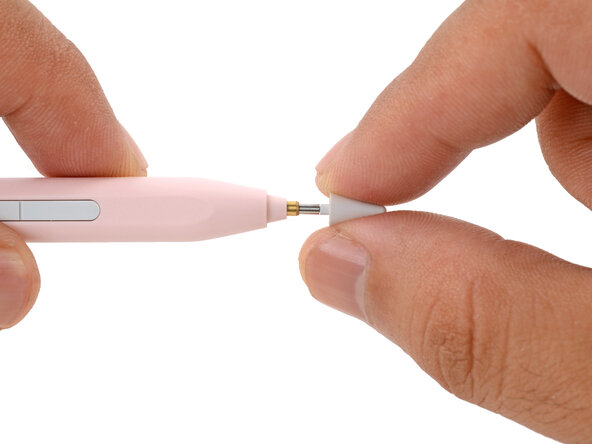

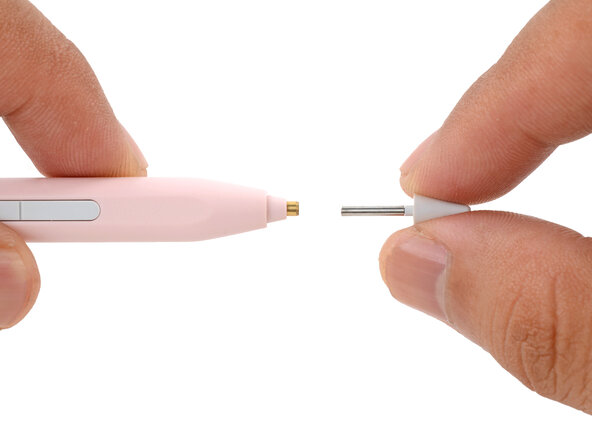

  1. Use your fingers to grab the Stylus tip and pull it straight out of the Stylus.
  2. If you're having trouble pulling the tip out:
  3. Wrap some tape around the tip to give you more grip.
  4. Use your fingernails to grip the back lip of the tip.
  5. Insert thread or dental floss into the seam between the tip and the Stylus barrel and pull gently.
  6. Step image Step image Step image

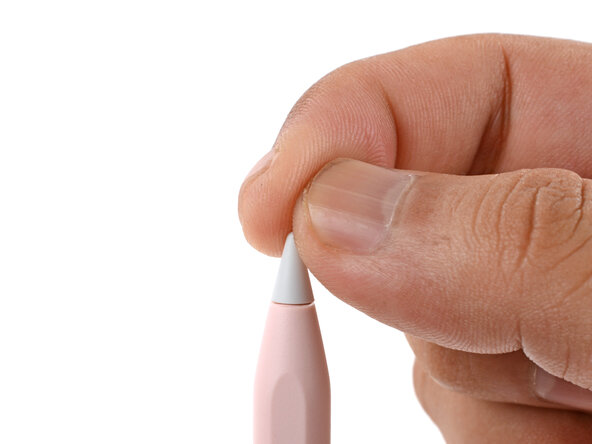

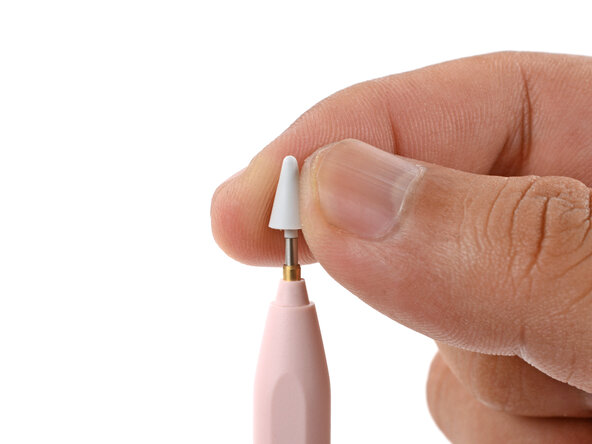

  7. Use your fingers to slide the new tip into the Stylus.
  8. Push the tip in until it bottoms out. It should be able to spin but not fall out.
  9. Step image Step image Step image
