Logitech K540 Battery Replacement

ID: 193757

Description: Follow this guide to replace dead AA batteries...

Steps:

1. Slide the power switch on the top right corner to the OFF position.
2. Flip your keyboard over and lay it down so the edge with the two tilt legs is closest to you.
3. If your work surface might scratch the keyboard, place a soft towel under it.

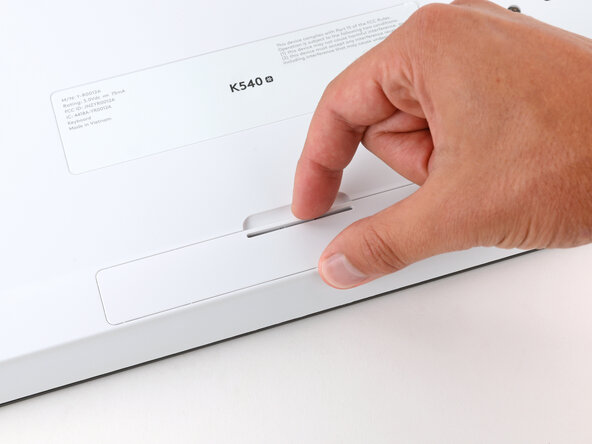

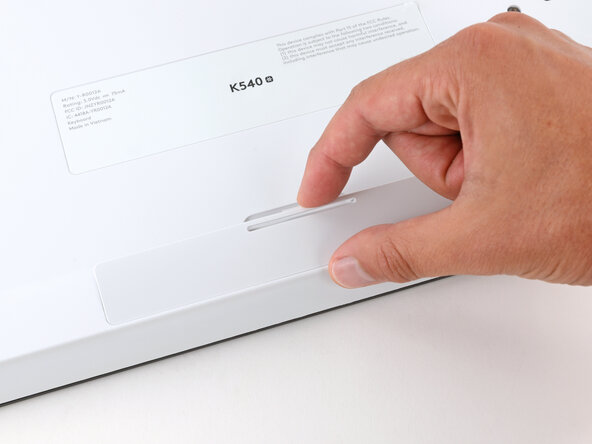

4. Use your finger to pull the tab near the middle of the battery cover inward, towards the center of the cover.

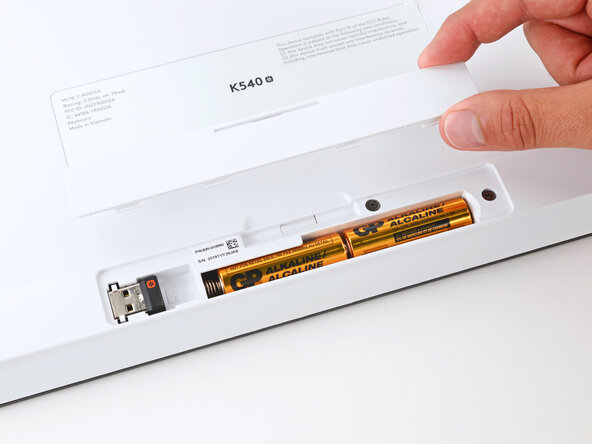

5. With the tab pulled in, lift and remove the cover.

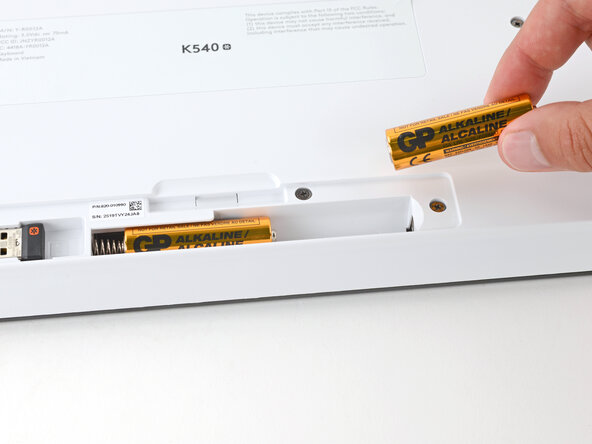

6. Use your finger to lift the edge of the outer battery and remove it.

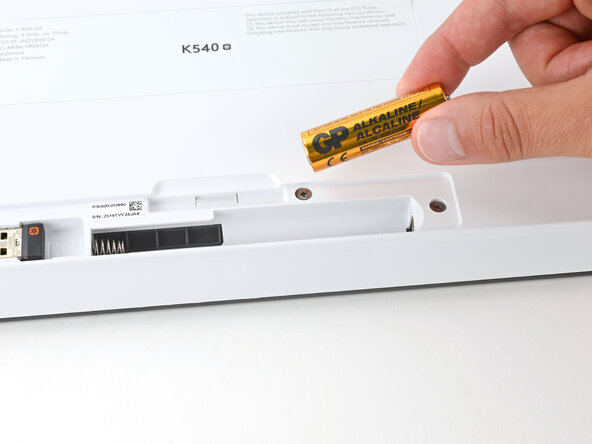

7. Slide the second battery out of the recess and remove it.

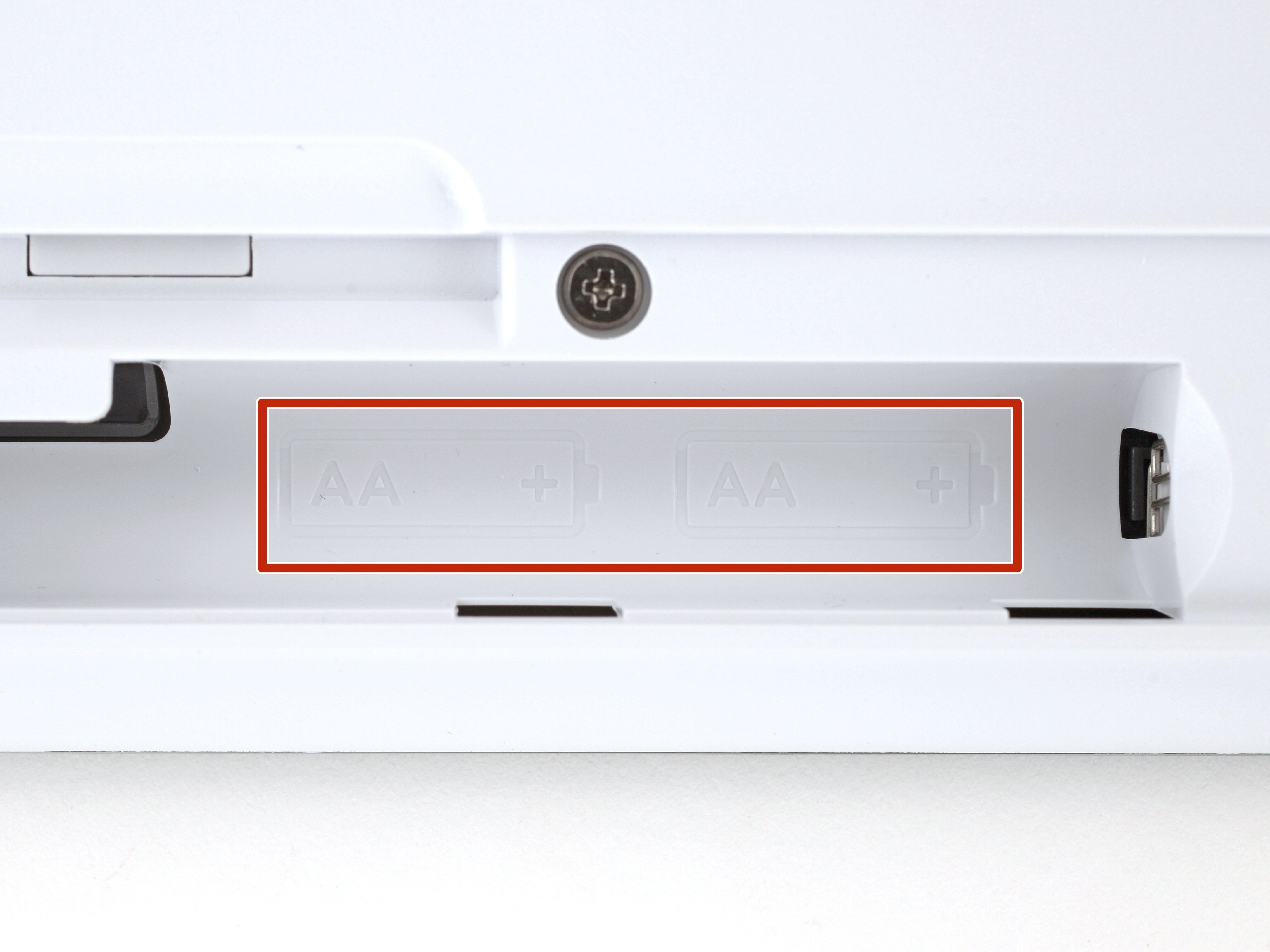

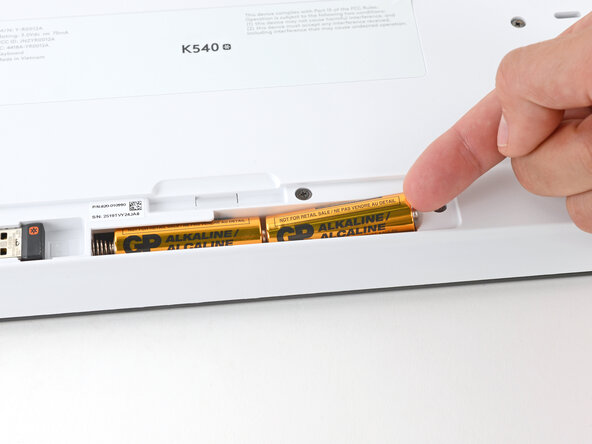

8. During reassembly, slide the batteries in negative (-) end first, as shown in the recess.
