2010-2017 Suzuki Swift Gear Shift Control Cable Bushing Replacement

ID: 193855

Description: The gearbox is connected to the gear shift...

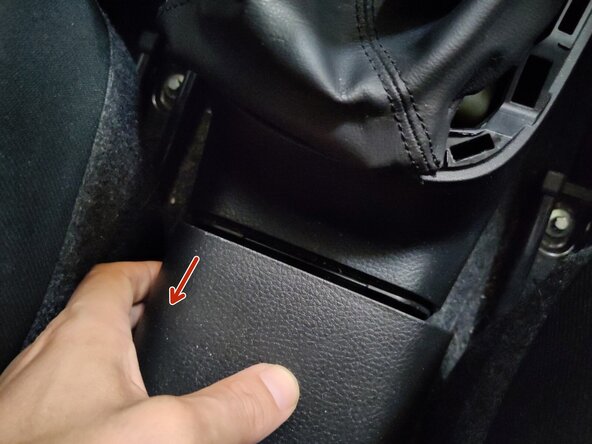

Steps:

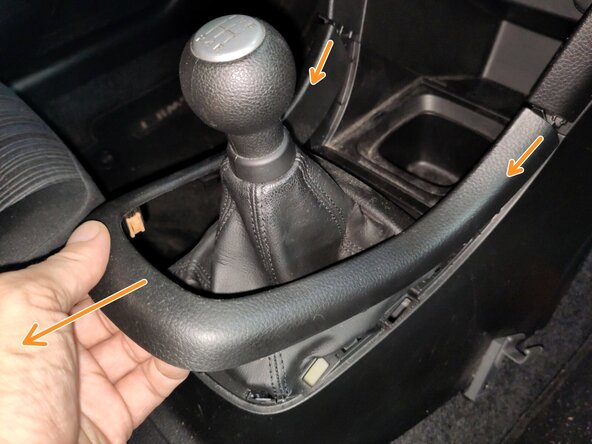

1. Grip the backside of the front console box garnish and gently pull it upwards.
2. Pull the garnish from the front console box.

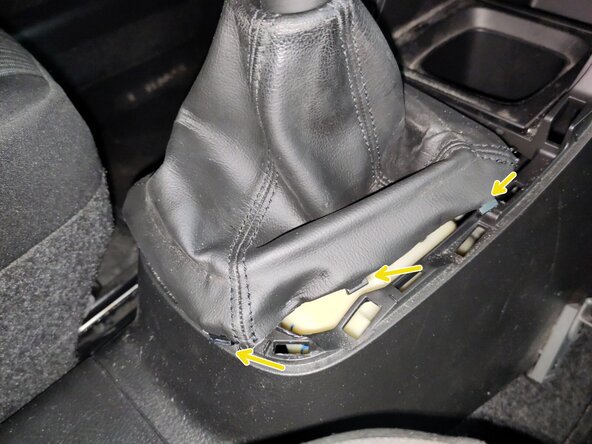

3. Remove the boot pins from the front console box so the boot can move freely.

4. Pull up the rear console box.

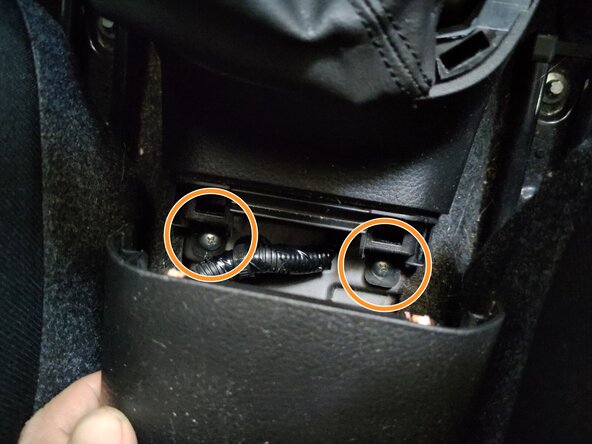

5. While holding up the rear console box, unscrew the 2 rear screws holding on the front console box.

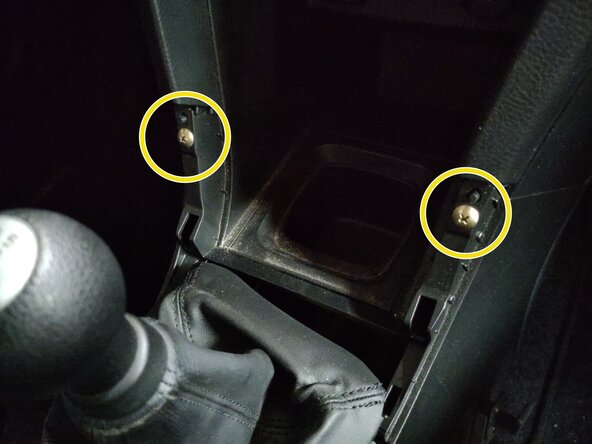

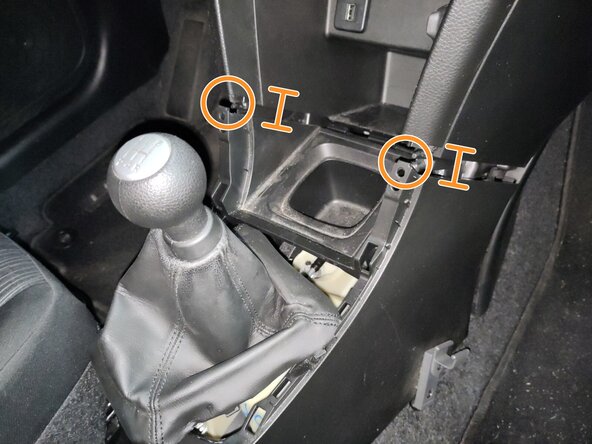

6. Unscrew the 2 front screws holding on the front console box.

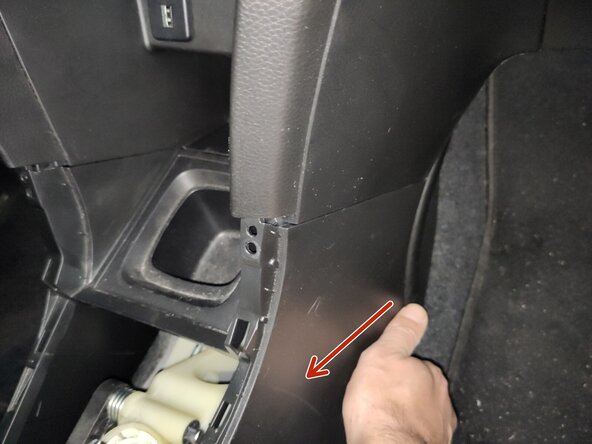

7. Gently pull the corner of the front console box towards you. If the other side did not came off, repeat on the other side.

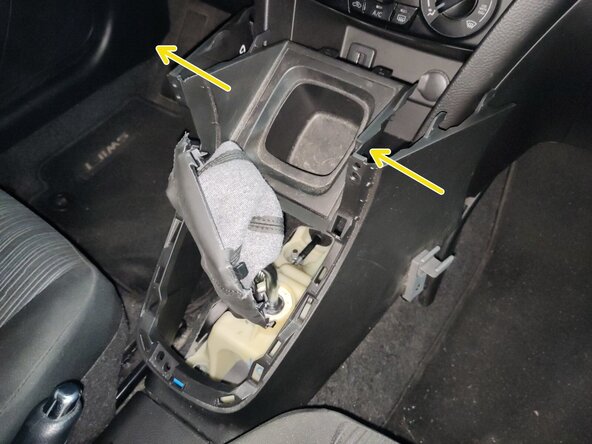

8. The front console box should be fully detached fron the dashboard, including the locating pins.

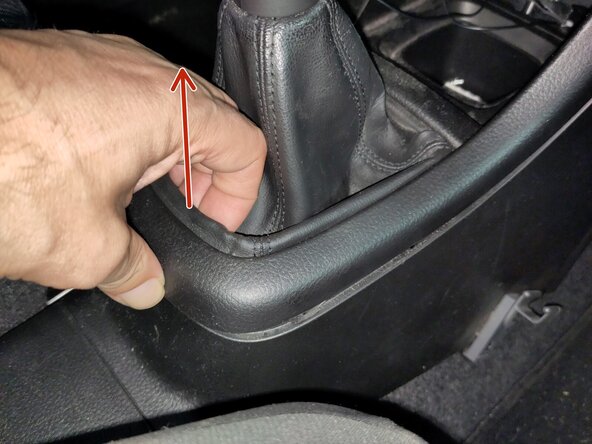

9. Pull up the front console box hinging on the rear. You can now remove the entire box by pulling it out over the shifting lever.

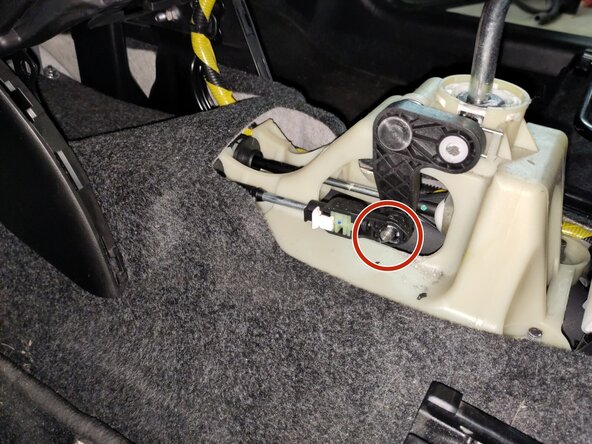

10. The bushing is located on the left side of the gear shift control lever assembly.

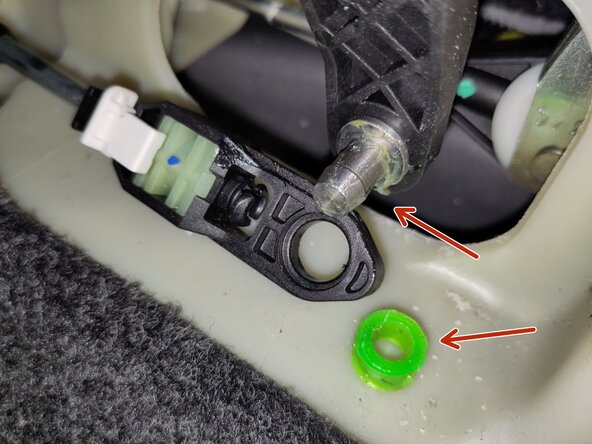

11. Pull the cable end from the pin.

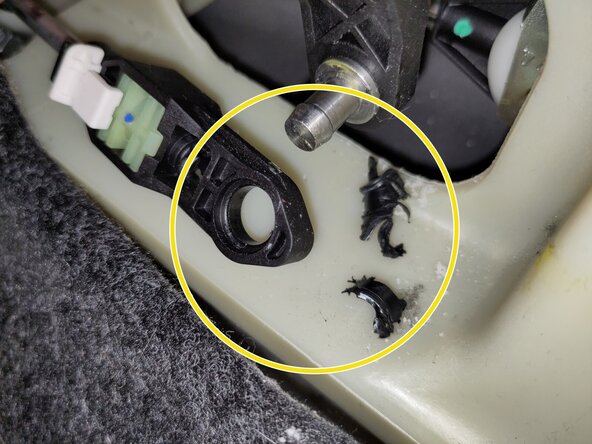

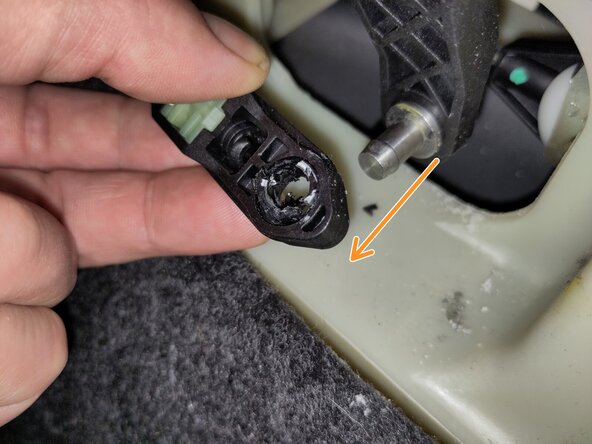

12. Remove all bushing remains from the cable end and pin.

13. Put some grease on the pin and the bushing to ease installation.

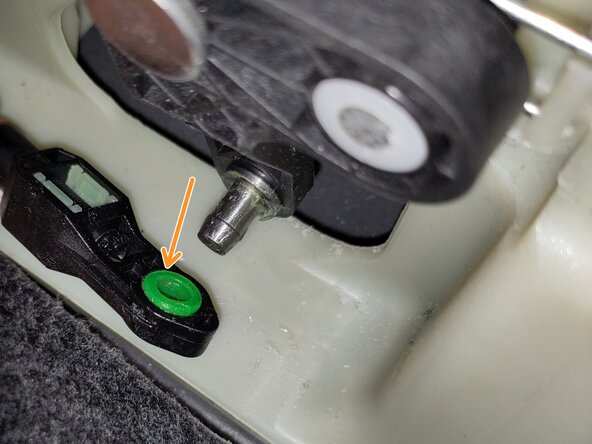

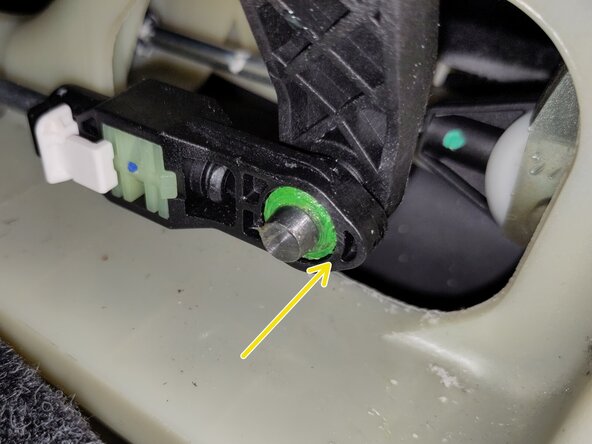

14. Push the bushing into the cable end.
15. Push the cable end onto the pin.
