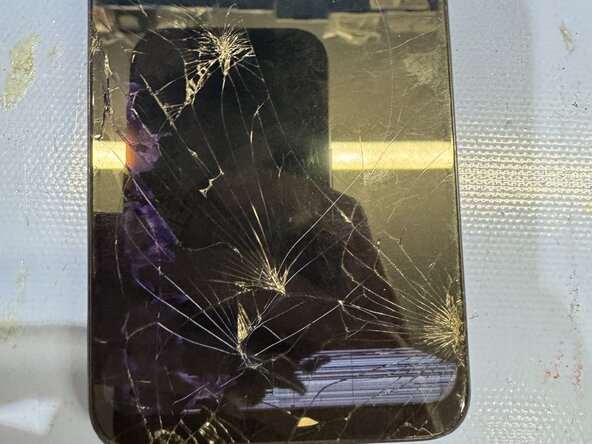

TLC 505 Screen Replacement

ID: 194220

Description:

Steps:

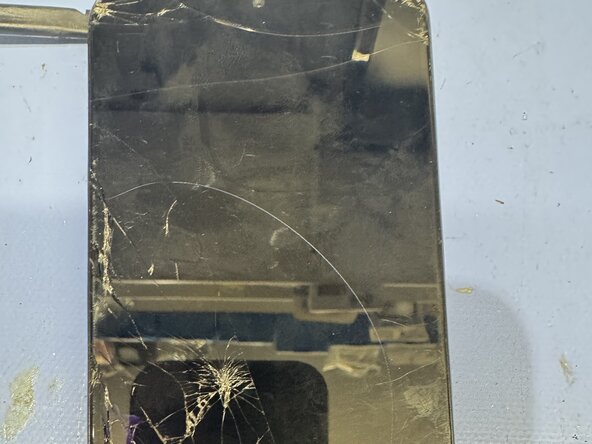

  1. heat up on a heat pad. use some 99% IPA around the edge and a small plastic splugger.
    2. Step image Step image Step image

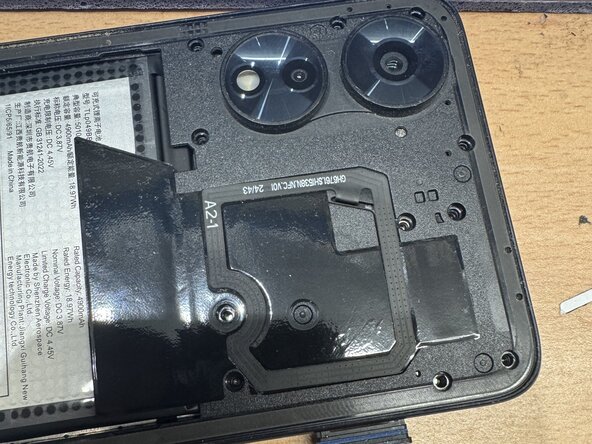

  2. remove all the philips screw and sim try.

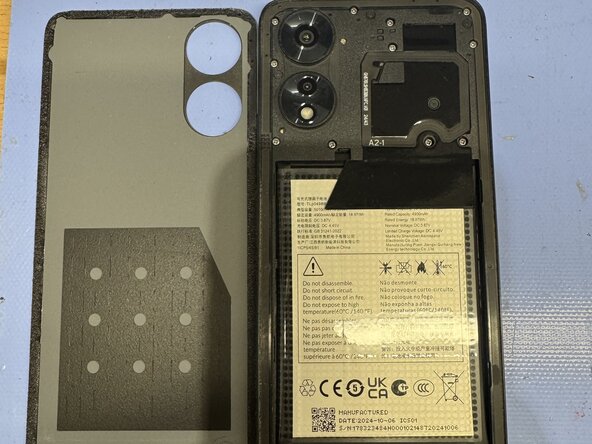

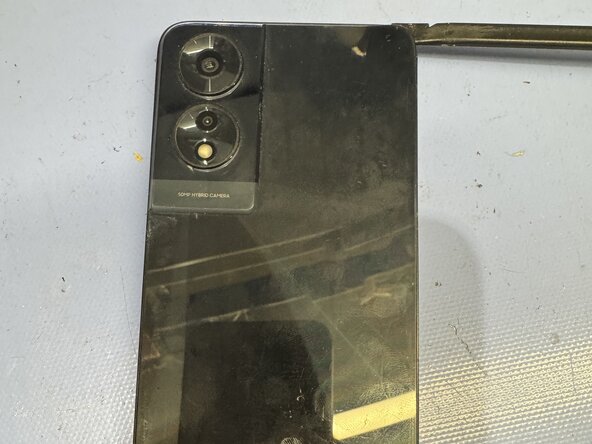

  3. with the plasic splugger insert by the sim tray cover and pry off the rear frame
    4. Step image Step image Step image

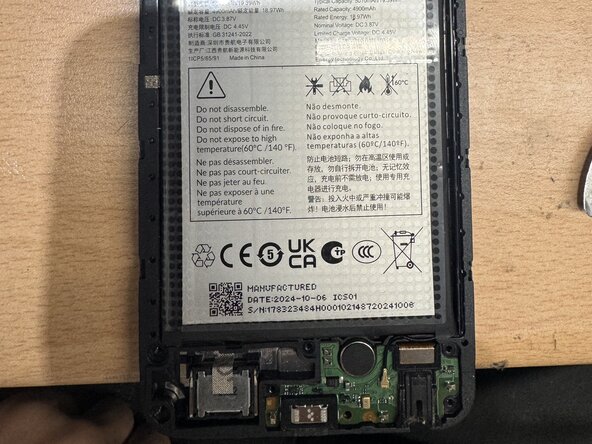

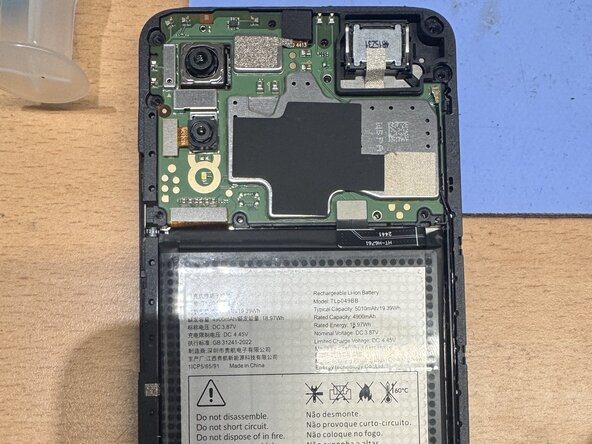

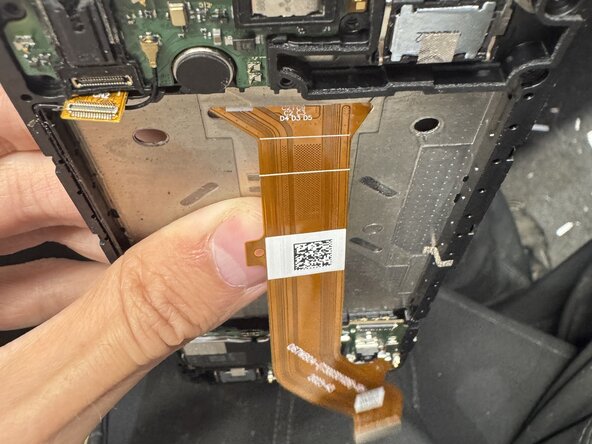

  4. disconnect the battery cable (Black Connector) and screen cable Bottom Left Cable (Top Board) & Top Right cable ( Bottom Board)
    5. Step image Step image

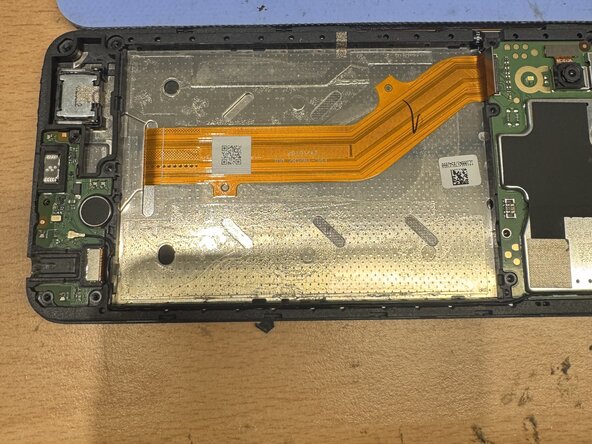

  5. Use 99% IPA & Pry Tool to remove Battery
    6. Step image
  6. heat up the screen and push from battery side

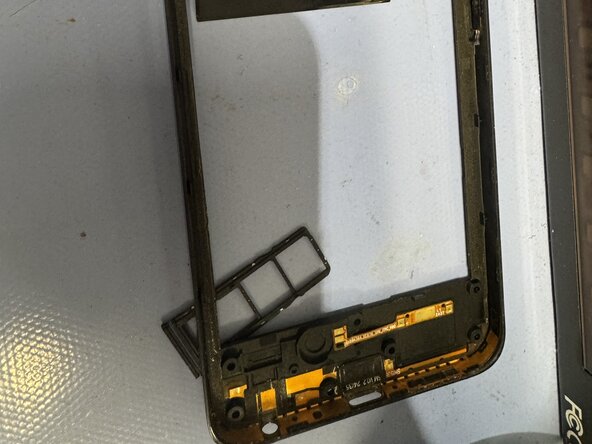

  7. carfuly pry round the screen to lift use 99%IPA if need
    8. Step image Step image Step image

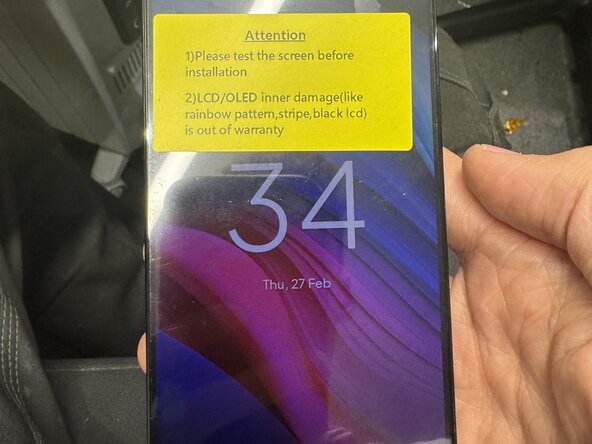

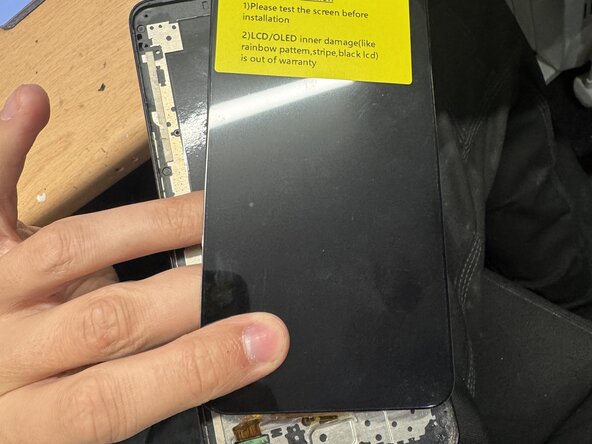

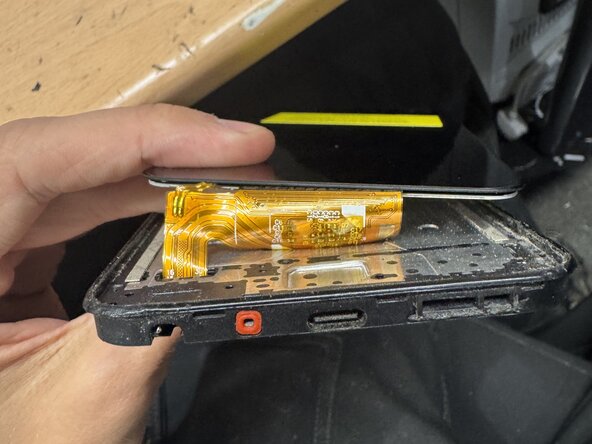

  8. test fit new screen
  9. you can use B700 to reglue the screen in (BE CARFUL AROUND TOP CAM) or can tape and fit
    10. Step image Step image
