2010-2017 Suzuki Swift Dome Light Replacement

ID: 194369

Description: A non functioning dome light can be the result...

Steps:

1. The light fixture is removed entirely in order to replace the bulb more easily. Also, by disconnecting the fixture, the battery does not need to be disconnected.

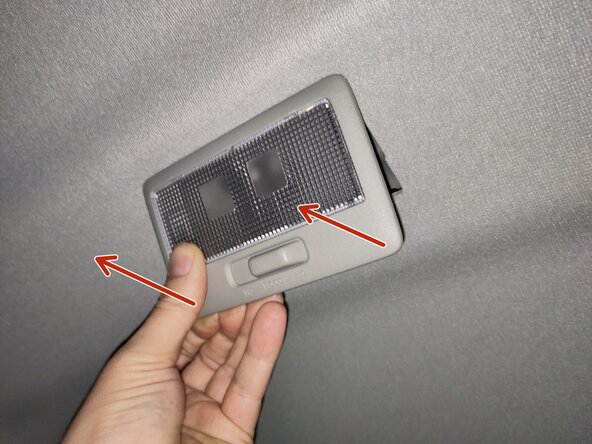

2. Grab the light fixture at the switch side and pull it loose.

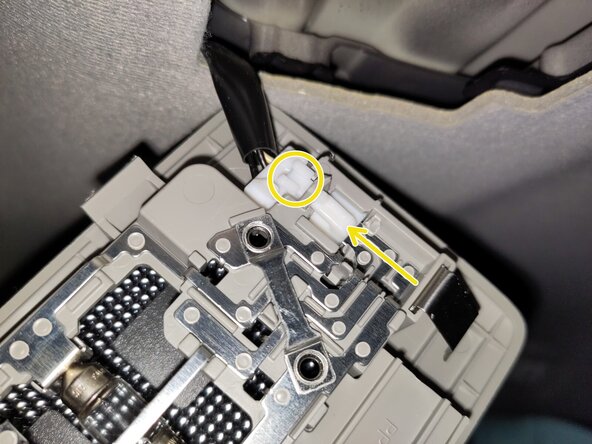

3. Pull the power connector out by pushing on the retaining clip and pushing from below simultaneously.

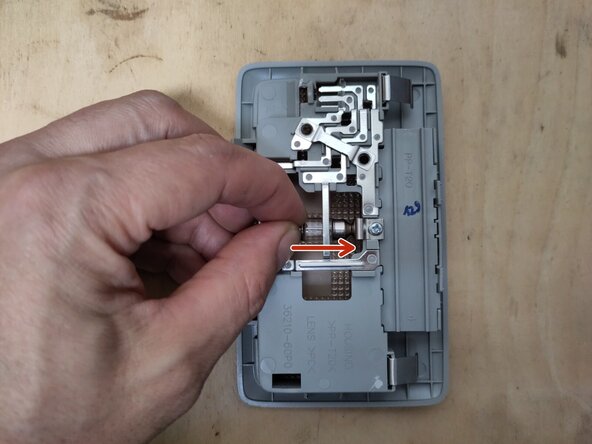

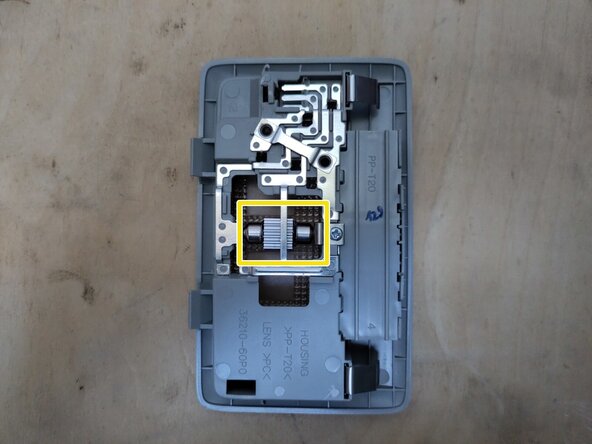

4. Grab the bulb and push it out of the fitting.

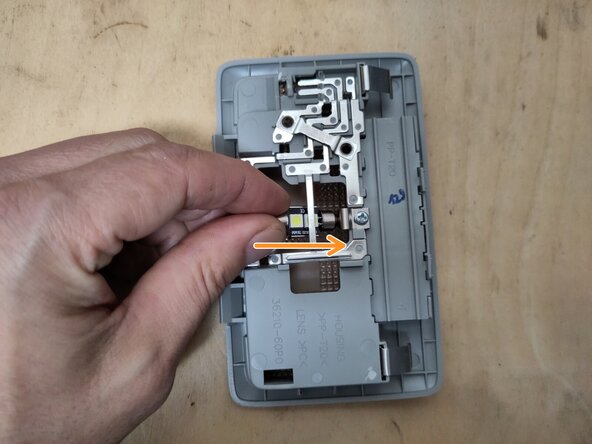

5. Insert the new bulb by slotting it in on the flexible end and pushing it in. Make sure the other end is slotted into the fitting.
6. If you are using a LED light, make sure you turn the lights towards the lens after installation.
