Framework Laptop 16" (2025) Expansion Bay Installation

ID: 194908

Description:

Steps:

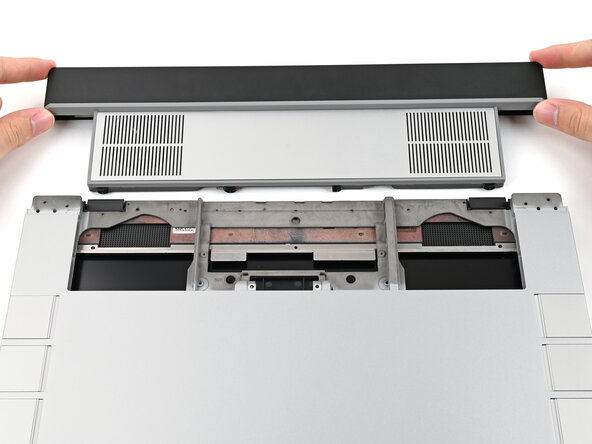

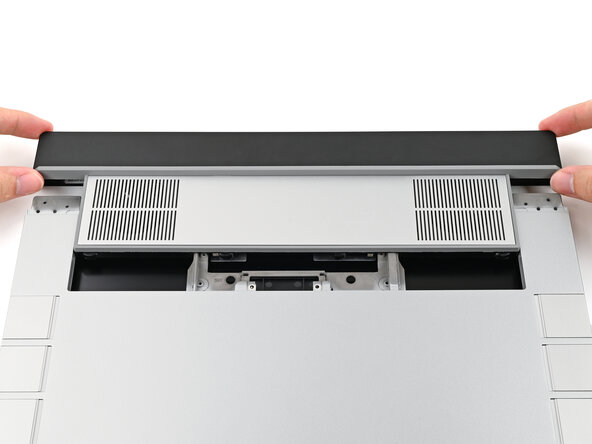

1. Align the Expansion Bay Module with its slot in the laptop.

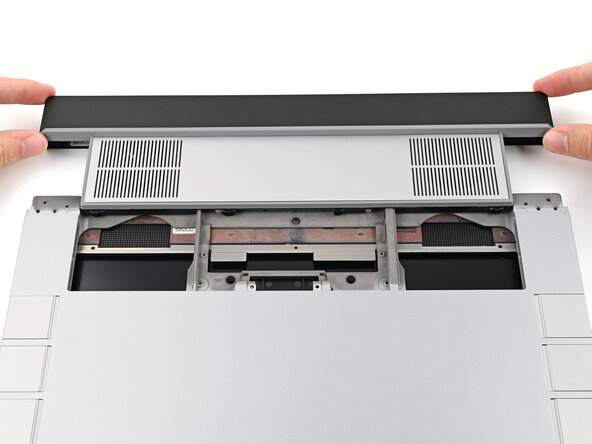

2. Check that the module sits evenly with the rail on the outside edges of the slot.
3. Check that the two center rails are threaded between the fans.

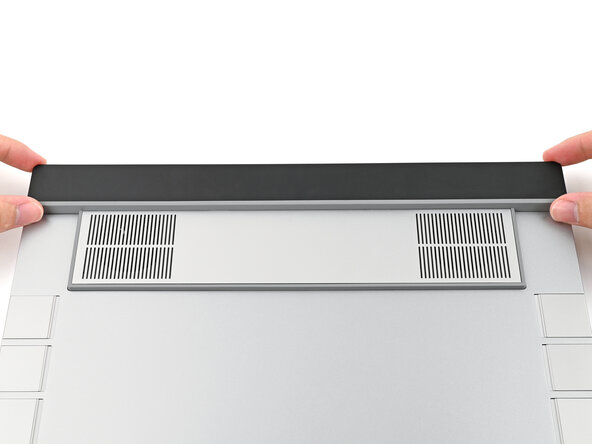

4. While keeping the module level with the laptop, slide it into its slot.
5. The module should slide in easily. If you feel any resistance, pull the module out and realign it.
6. You should hear an audible "click" when the module's clips snap into place.

7. Flip over the laptop and open it.

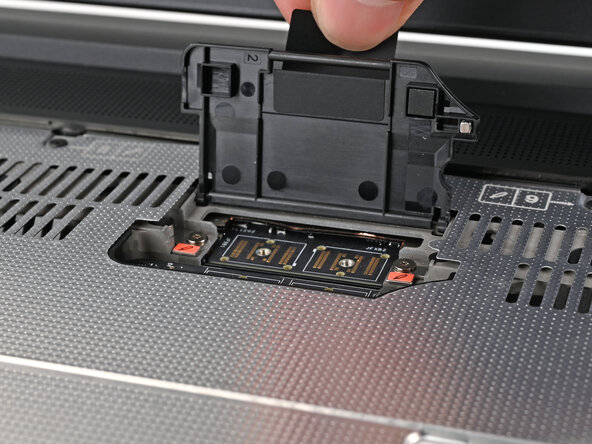

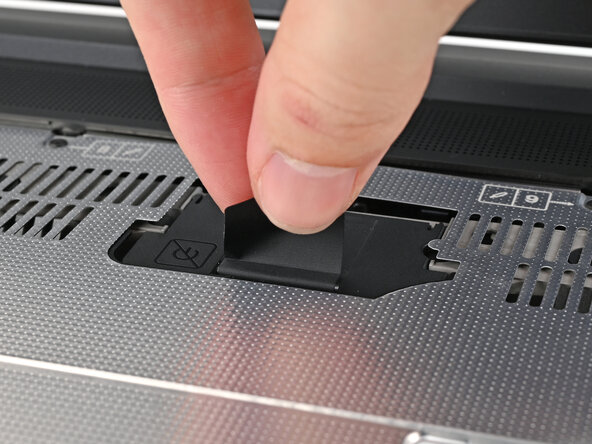

8. Lift the interposer door by its black pull tab and let it rest upright.

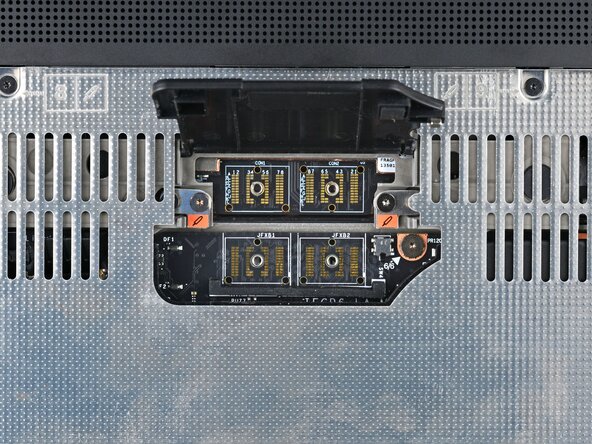

9. Use your Framework Screwdriver to tighten the two captive T5 Torx screws securing the Expansion Bay Module.

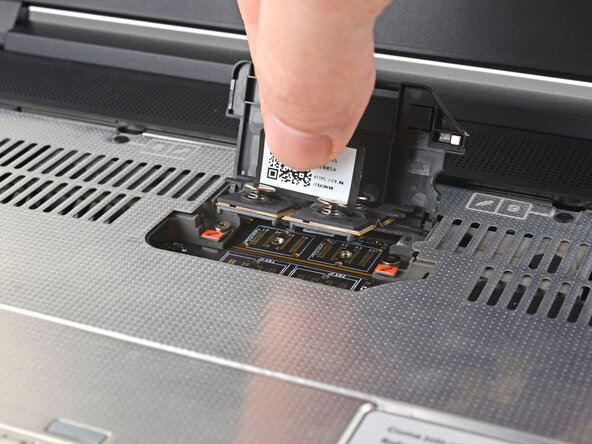

10. Place the interposer over its spot between the Mainboard and the Expansion Bay.
11. Depending on if you're installing a Graphics Module or the Expansion Bay Shell, the interposer should be oriented so either rubber grommets or metal tabs cover the Expansion Bay screws.

12. If you have the Graphics Module installed, your interposer will have four screws. If you have the Expansion Bay Shell installed, you'll have three screws instead.

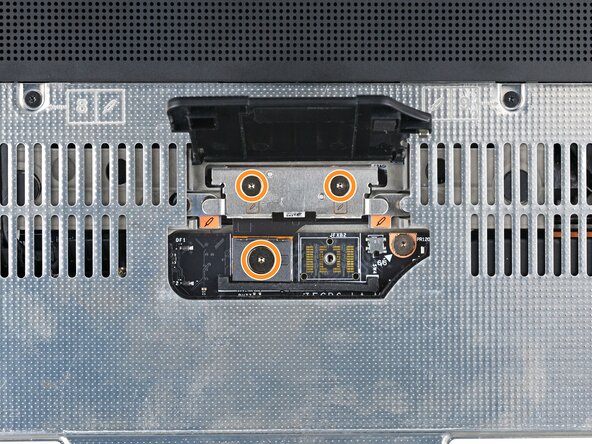

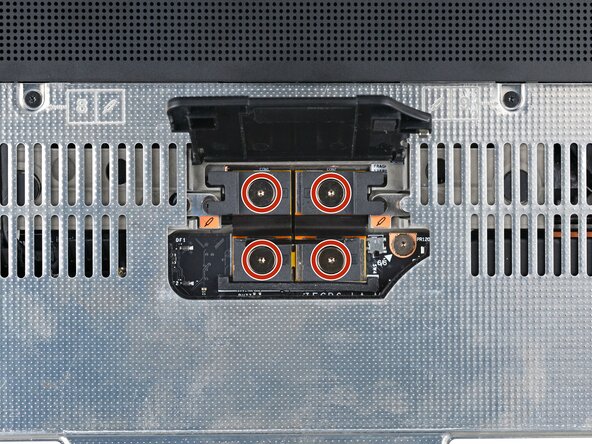

13. If you have the Graphics Module, use your Framework Screwdriver to tighten the four captive T5 Torx screws securing the interposer.
14. If you have the Expansion Bay Shell, use your Framework Screwdriver to tighten the three captive T5 Torx screws securing the interposer.

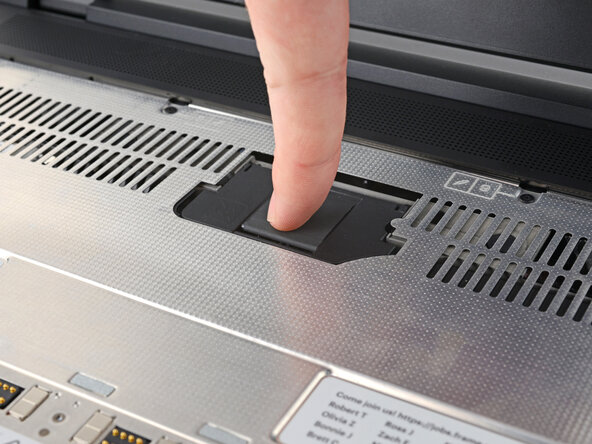

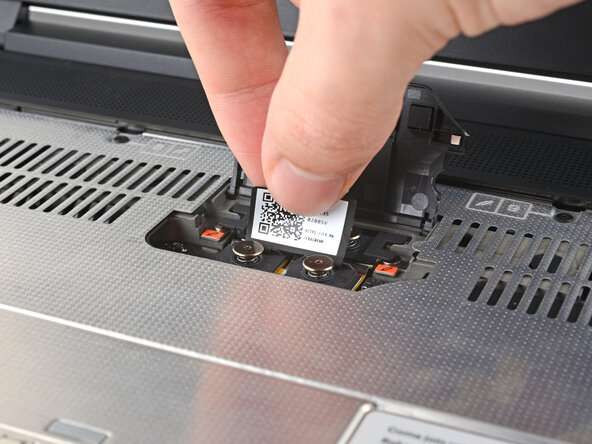

15. Close the interposer door.
