Framework Laptop 16" (2025) Ventilation Plate Installation

ID: 194914

Description:

Steps:

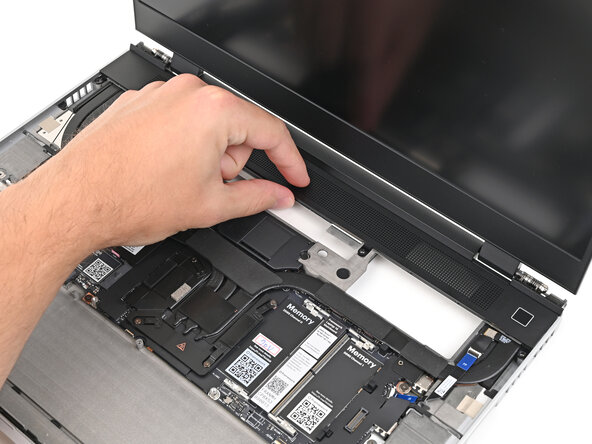

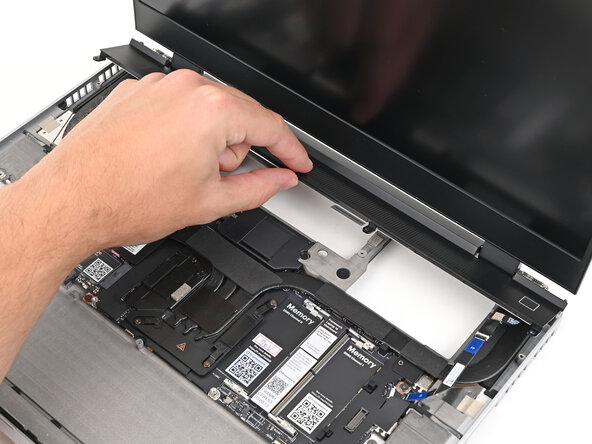

  1. Lay the ventilation plate along the top edge of the laptop and let its magnets pull into place.
    2. Step image Step image

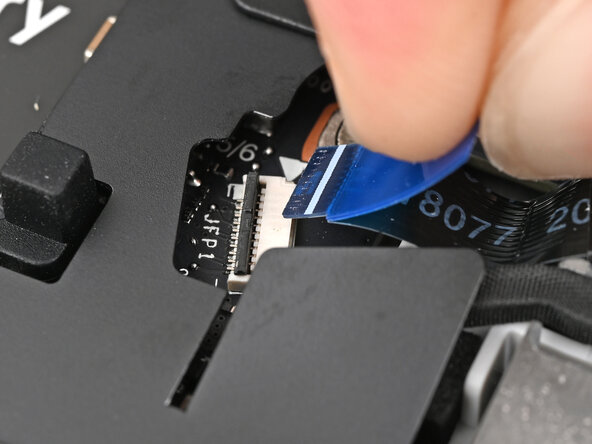

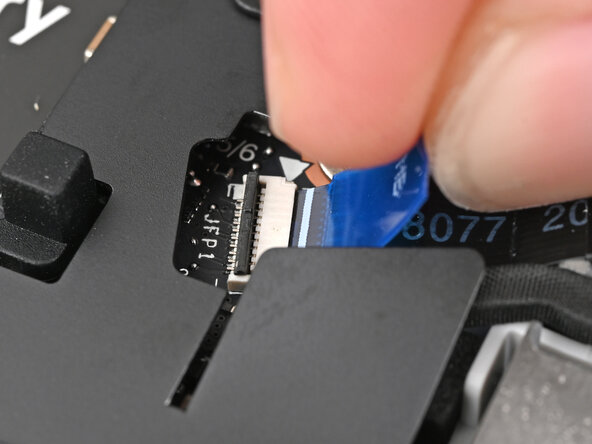

  2. Use your fingers to grip the blue pull tab and slide the fingerprint reader cable straight into its socket.
    3. Step image Step image

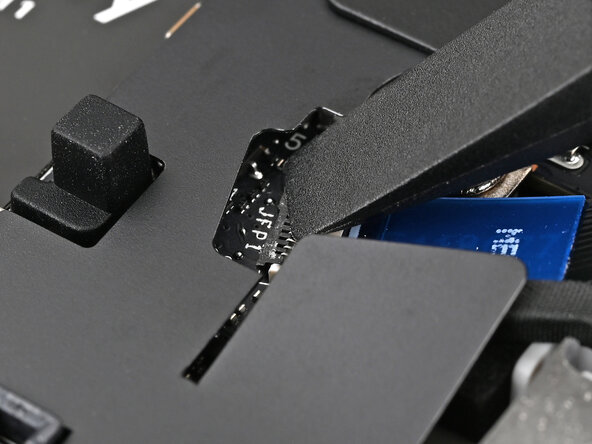

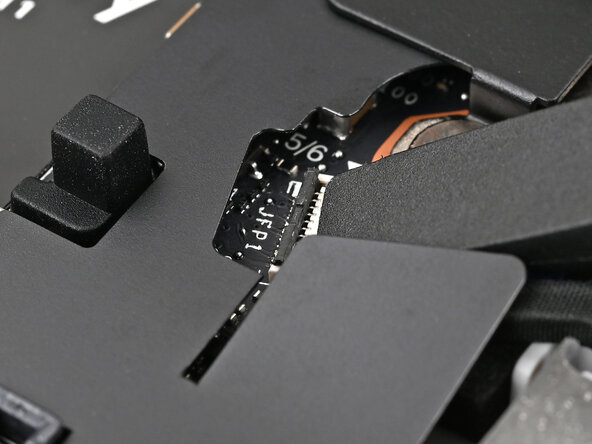

  3. Use the flat end of your Framework Screwdriver, or a clean fingernail, to press down the locking tab on the fingerprint reader ZIF connector.
    4. Step image Step image

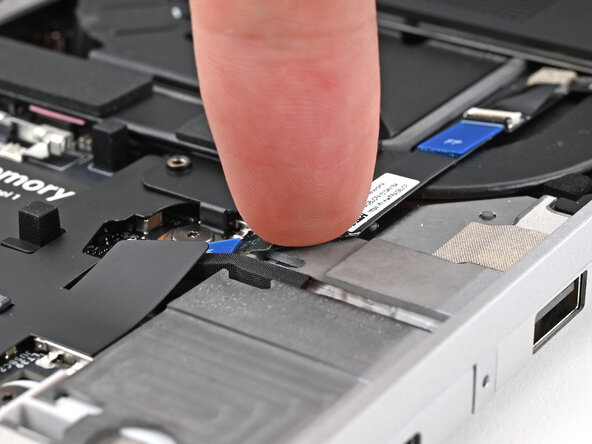

  4. Press the fingerprint reader cable to the frame to re-adhere it.
    5. Step image
