Framework Laptop 16" Memory Installation

ID: 194923

Description:

Steps:

1. Hold the memory module by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.
2. Orient the module with its label facing down and align the gold contacts with the left socket labeled DDR5 Channel 0.

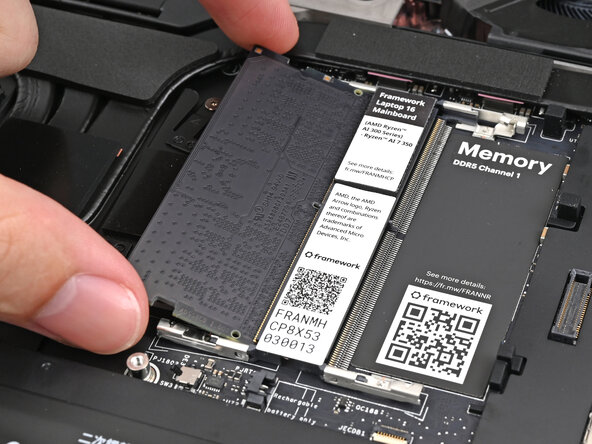

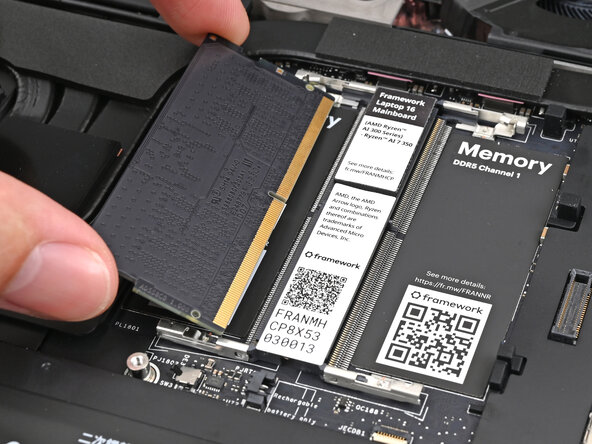

3. Insert the contact edge into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.

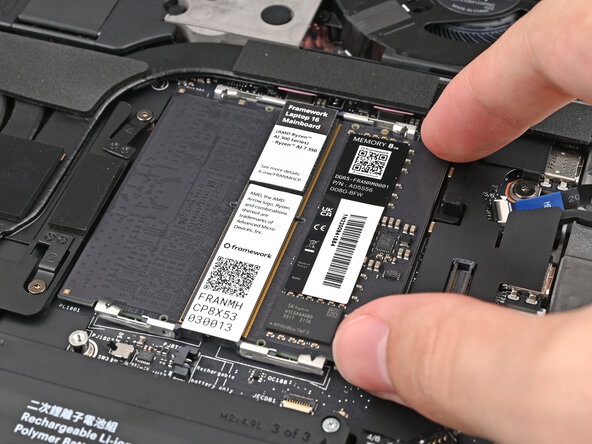

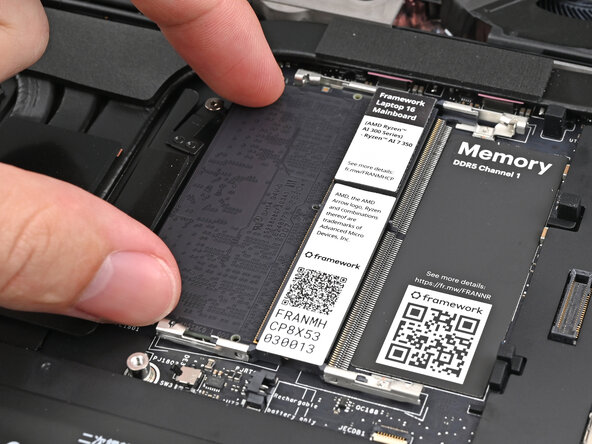

4. Press the edges of the module down until the side clips lock it in place.

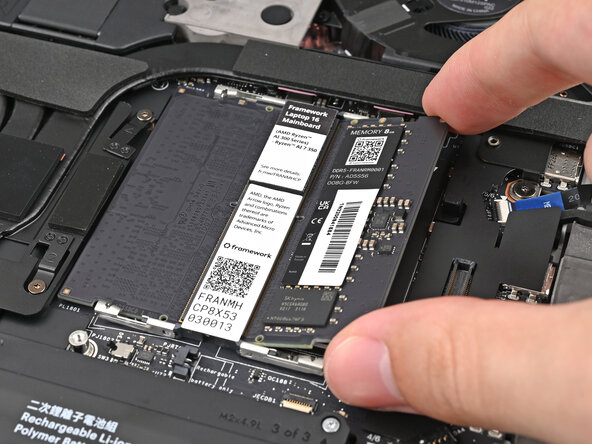

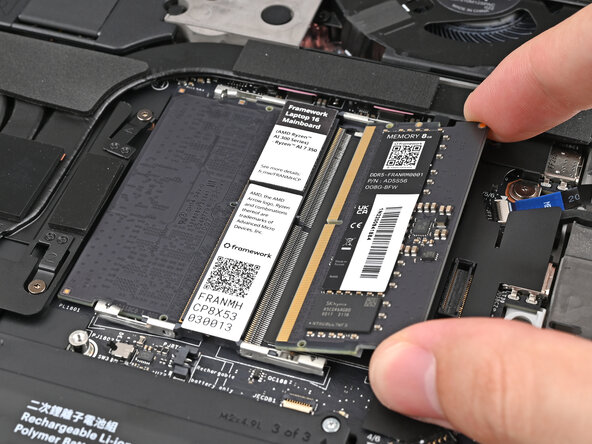

5. Repeat the previous step for the other socket labeled DDR5 Channel 1, except orient the module so its label is facing upward.
