Framework Laptop 16" SSD Installation

ID: 194926

Description:

Steps:

1. Hold the SSD by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.

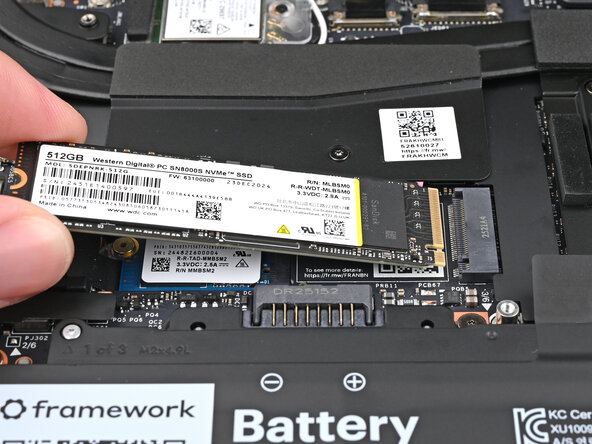

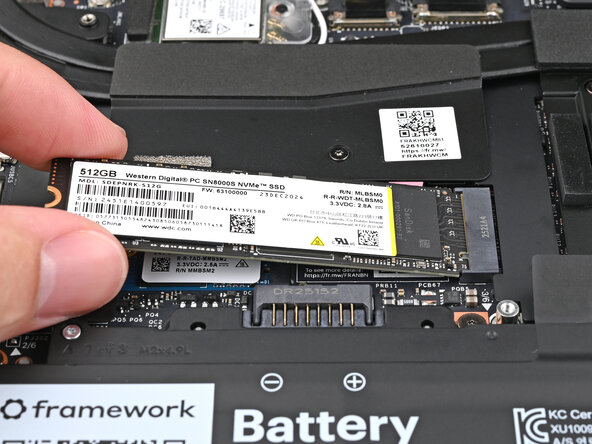

2. Insert the SSD into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.
3. The SSD fits into the socket in one orientation. If it doesn't feel like it fits, try flipping the module.

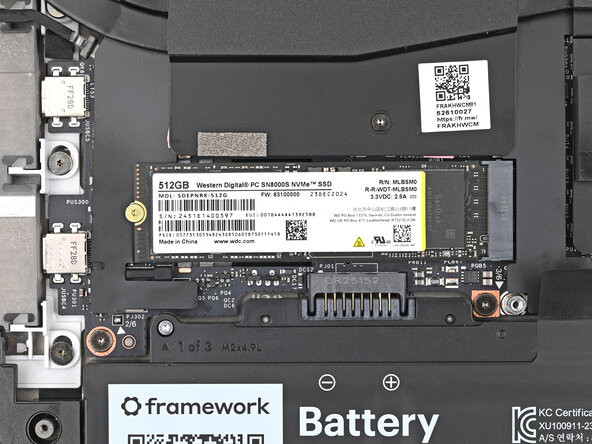

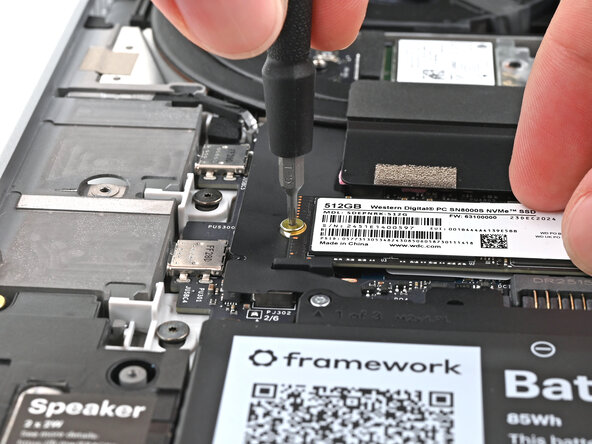

4. While holding the SSD flat to the Mainboard, use your Framework Screwdriver to install the 2 mm‑long T5 Torx screw securing the SSD.
