2010-2017 Suzuki Swift Trunk Light Replacement

ID: 194947

Description: The trunk light provides a light source when...

Steps:

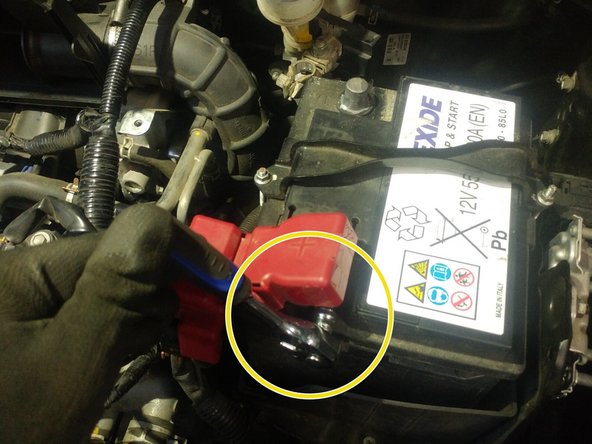

1. Use the 10mm socket to disconnect the negative terminal first.
2. Disconnect the positive terminal next, also with the 10mm.

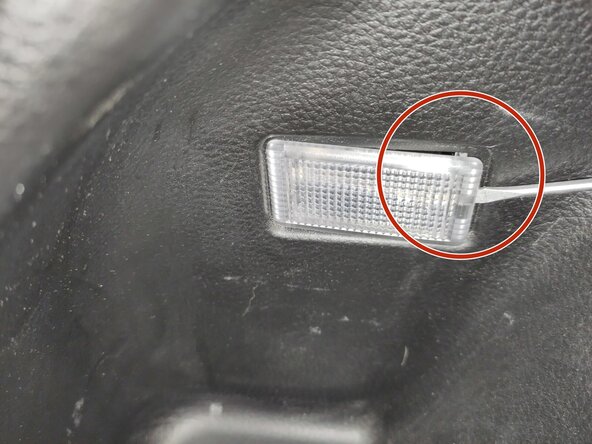

3. Open the fixture from the trunk panel with a small flathead.

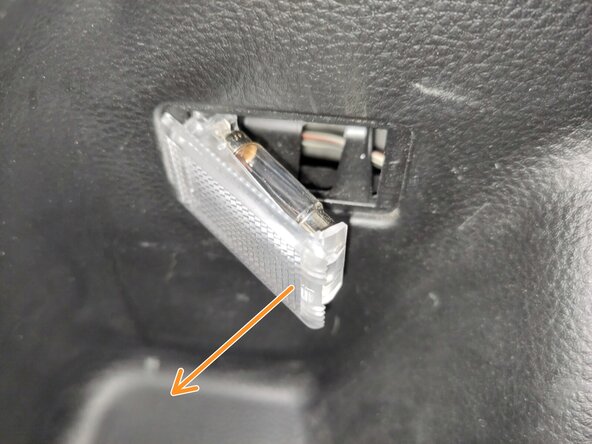

4. Turn the fixture towards you.
5. Pull out the entire fixture.

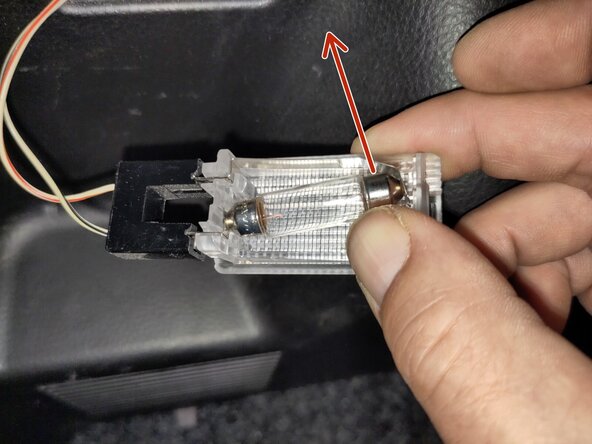

6. Push the right side of light bulb up to remove it from the fitting.

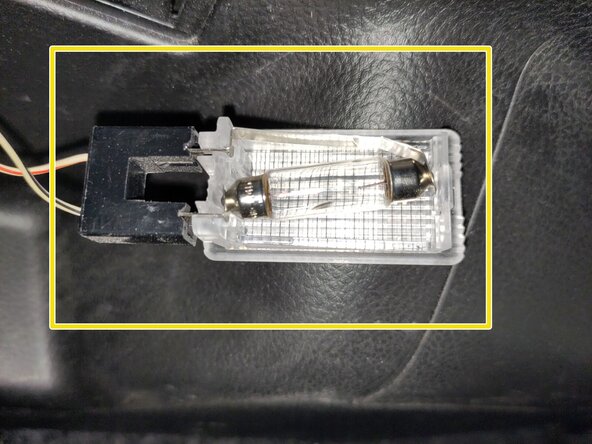

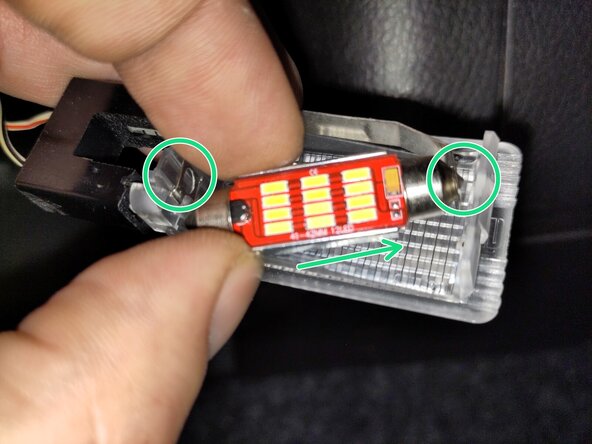

7. Insert the new bulb by pushing in one end in the flexible end of the fitting, and pushing in the other side next.

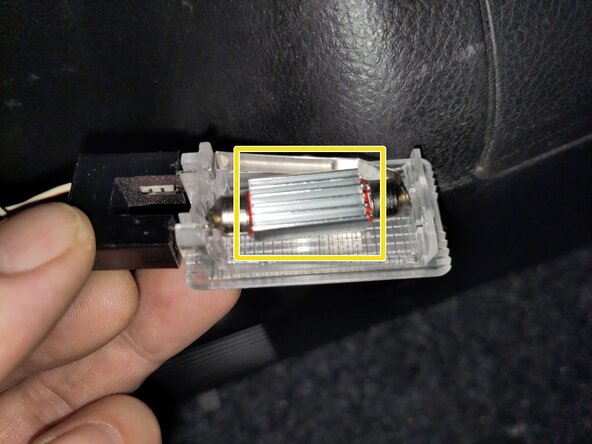

8. If you are using a LED light, make sure you turn the lights towards the lens after installation
