Logitech Signature M550 Battery Replacement

ID: 194956

Description: Follow this guide to replace a dead AA battery...

Steps:

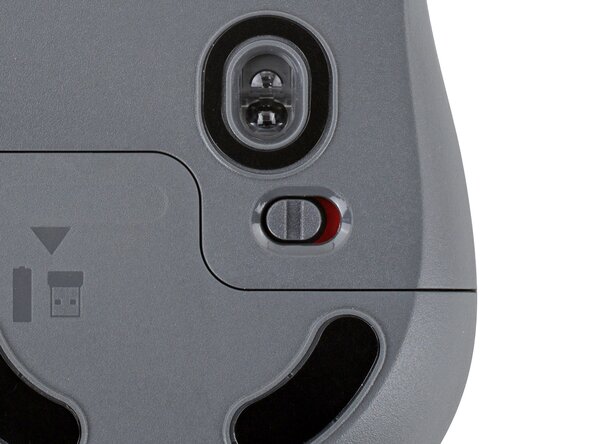

1. Before starting, flip the power switch on the bottom of your mouse to the left, so it's in the OFF position.

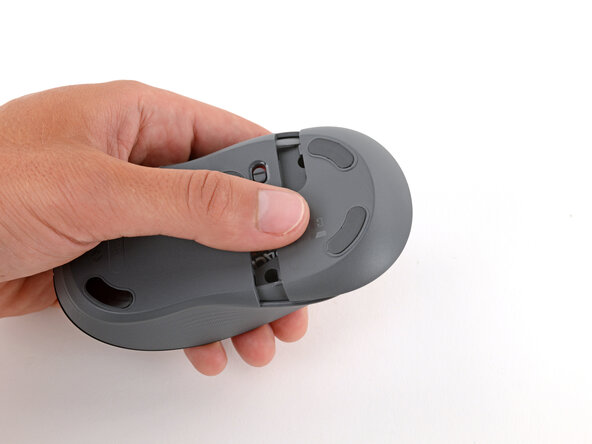

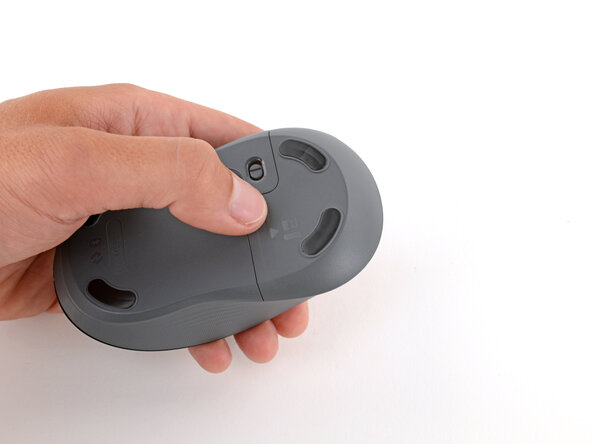

2. Press down on the battery cover with your thumb and slide it away from the mouse to unclip it.

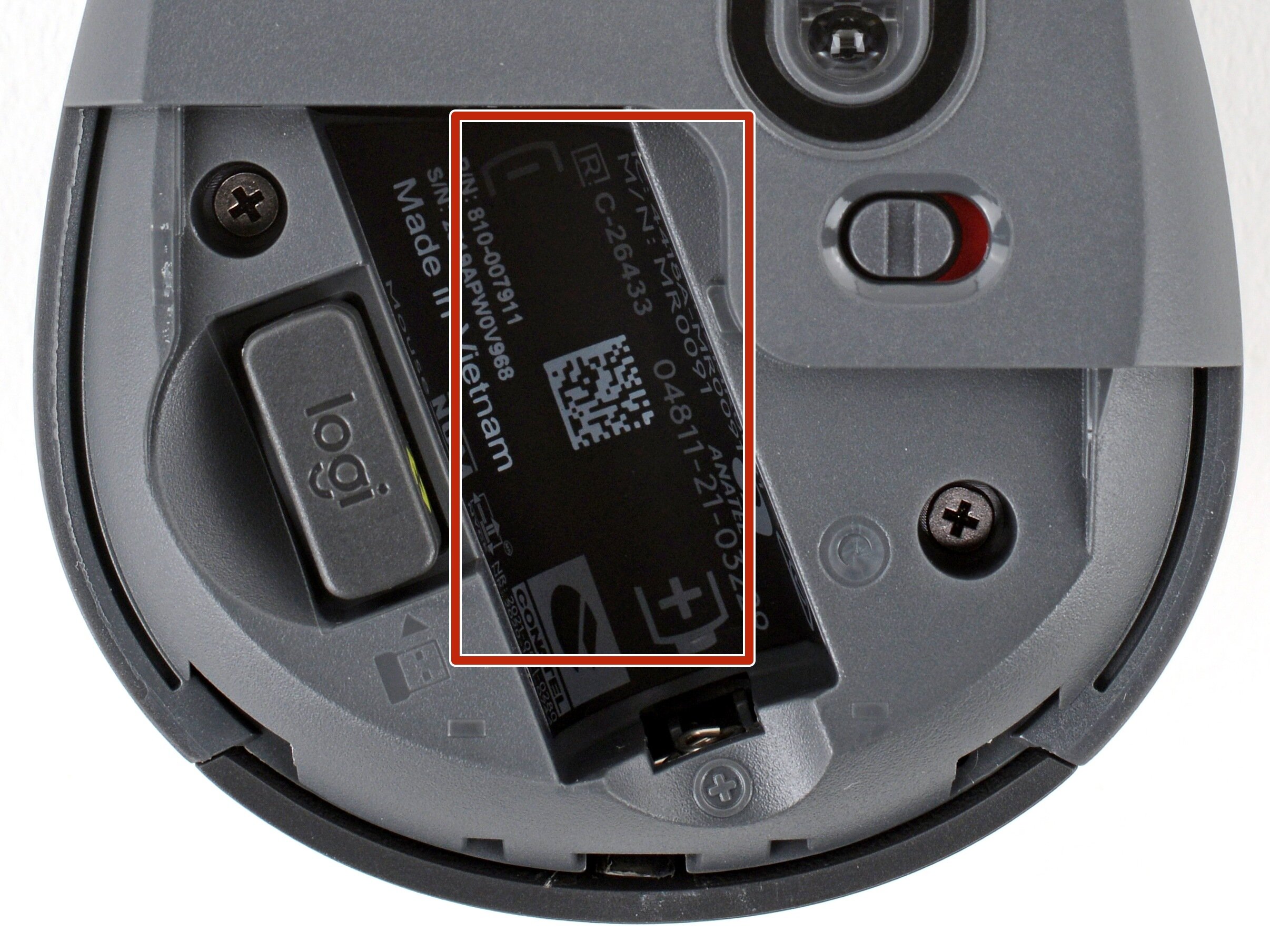

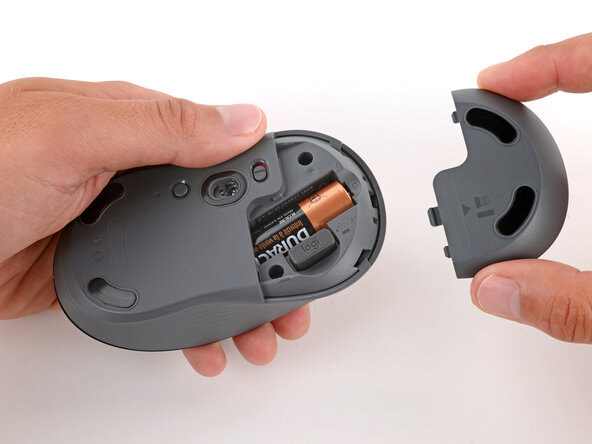

3. Remove the battery cover.

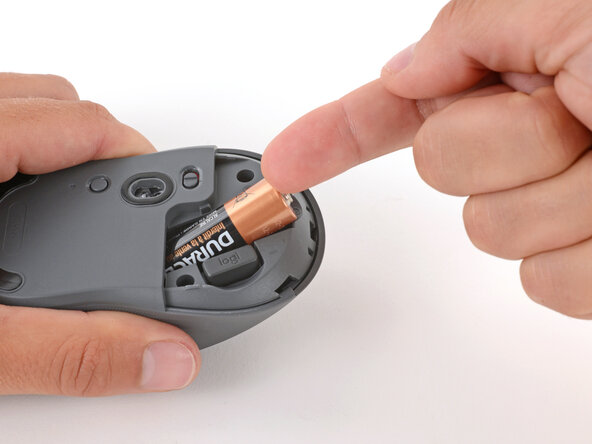

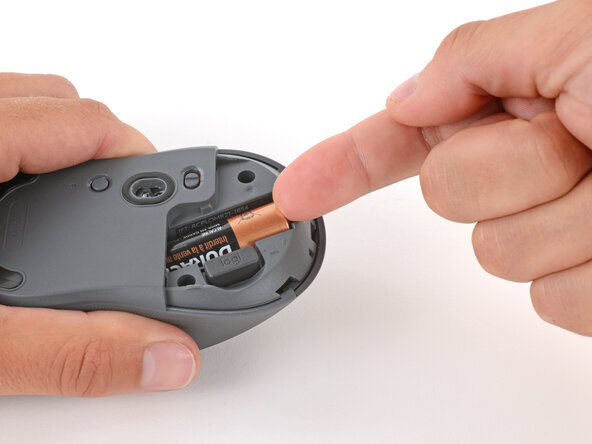

4. Use your fingers to lift the end of the battery and slide it out of its recess.

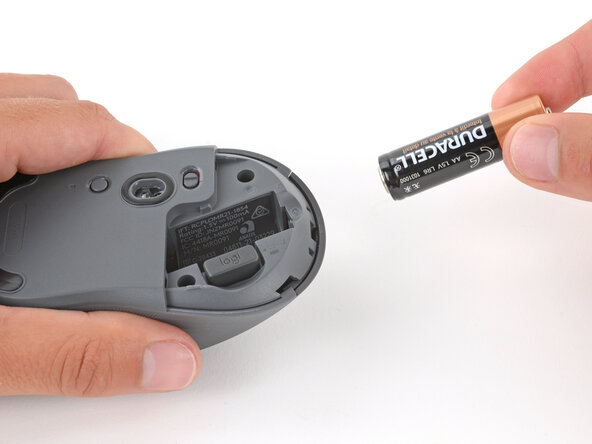

5. During reassembly, slide the battery in negative (-) end first, as shown on the sticker in the recess.
