Framework Laptop 16 Bezel Replacement

ID: 195117

Description: Use this guide to replace the magnetic bezel in...

Steps:

  1. The bezel is secured with magnets.

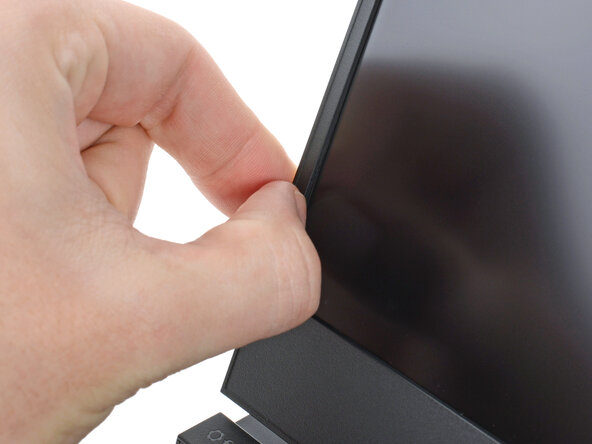

  2. Slide your fingernail under the inside edge of either bottom corner of the bezel.

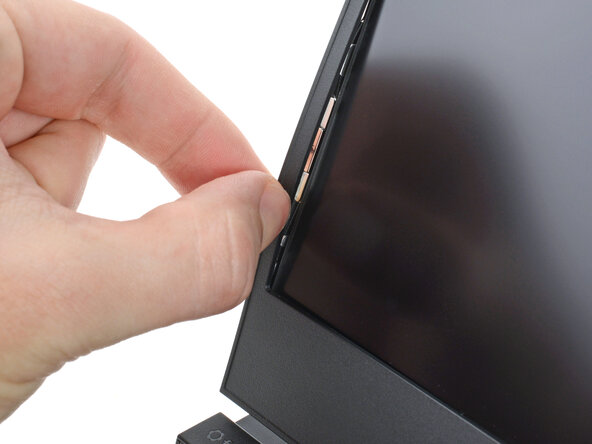

  3. Pull the bezel away from the screen to release the first few magnets.
  4. Step image Step image Step image

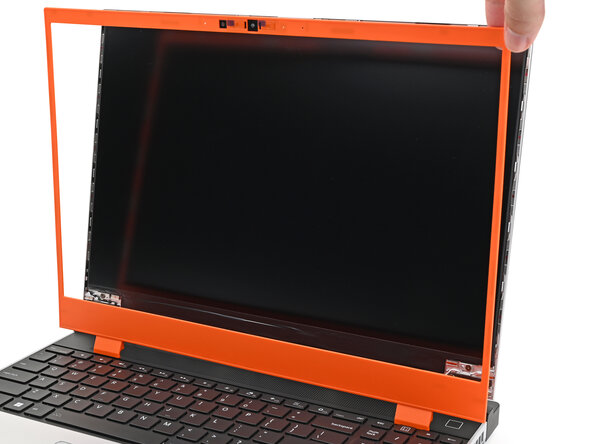

  5. Lift the bezel around the perimeter of the screen until all of its magnets are released.
  6. Remove the bezel.
  7. Step image Step image Step image

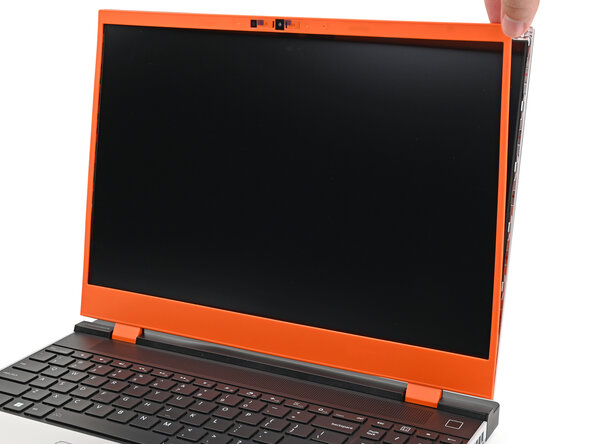

  8. Align the bezel over the perimeter of the display and let the magnets pull the bezel into place.

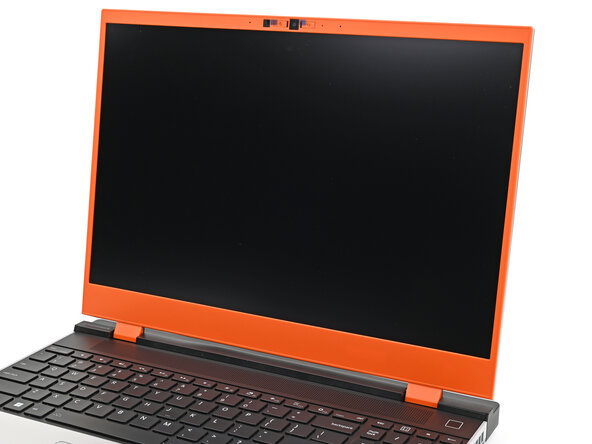

  9. The bezel should "snap" into place. If it doesn't, realign it and make sure it sits flush with the display.
  10. Step image Step image Step image

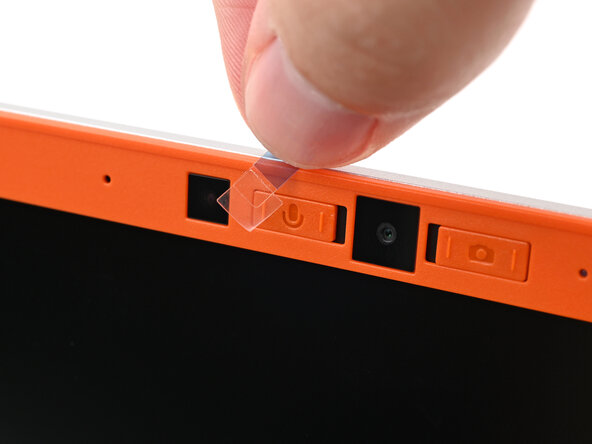

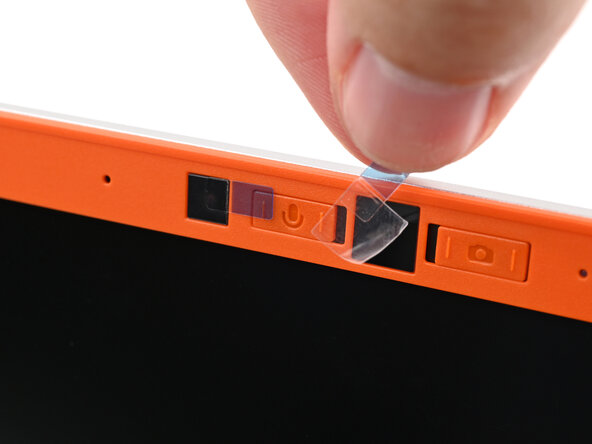

  11. If there are any plastic liners covering the webcam and microphone, remove them.
  12. Step image Step image
