Framework Laptop 16 Secondary SSD Replacement

ID: 195146

Description: Follow this guide to replace the secondary SSD...

Steps:

1. Unplug all cables and fully shut down your laptop.

2. Use your fingernail to pull out the two Input Module latches and unlock them.
3. The latch will show red if it's unlocked.

4. Use your fingers to slide the Touchpad Spacer toward the bottom edge of the laptop and unclip it.
5. If you're having trouble, check if the corresponding Input Module latch is properly unlocked.
6. Lift the Touchpad Spacer off the laptop and remove it.

7. Repeat the same procedure for the other touchpad spacer.

8. Use your fingers to slide the Touchpad Module toward the bottom edge of the laptop and disconnect it.
9. If you're having trouble, check if the Input Module latches are properly unlocked.
10. Lift the Touchpad Module and remove it.

11. The keyboard is held in place with strong magnets. Apply gradually increasing force to avoid having the keyboard violently eject.
12. Grip the two pull tabs along the bottom of the keyboard and lift until its magnets release.
13. Remove the keyboard.

14. Your Input Module(s) might be different, but the procedure to remove them is the same.
15. Grip the pull tab at the bottom of the Input Module and lift until its magnets release.
16. Remove the Input Module.
17. Repeat for any remaining Input Modules.

18. Grip the black pull tab on the Mid Plate cable press connector.
19. Lift up to disconnect the Mid Plate cable.

20. The Mid Plate screws are ordered from 2–17 (number 1 is the press connector). You don't have to follow the order, but you can use it to help keep track of the screws you've loosened.
21. Use your Framework Screwdriver to loosen the 16 captive T5 Torx screws securing the Mid Plate.

22. Use your fingers to lift the Mid Plate off the laptop and remove it.

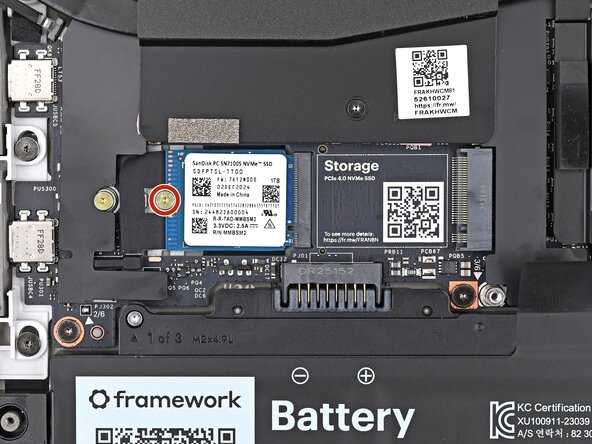

23. Use your Framework Screwdriver to remove the 2 mm‑long T5 Torx screw securing the SSD.

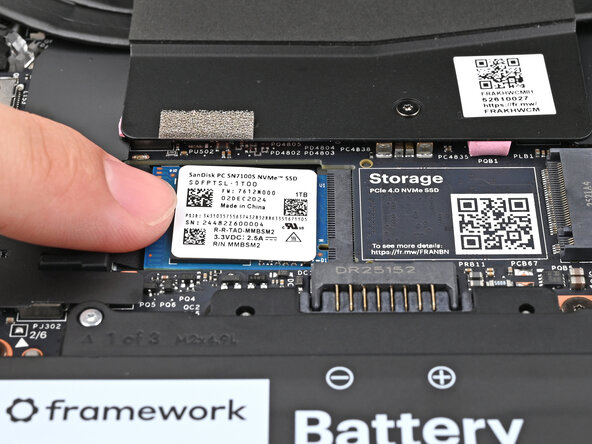

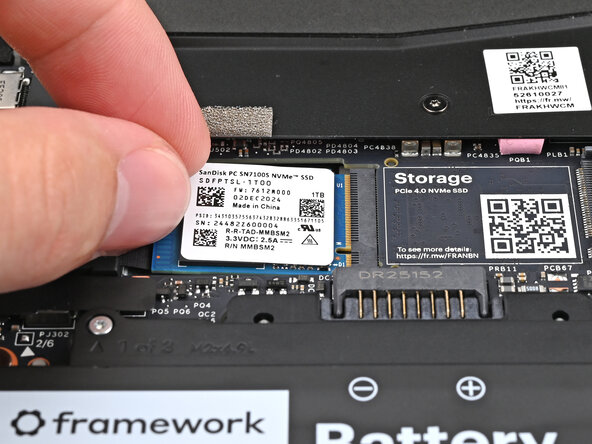

24. The SSD might pop up at a shallow angle when you remove the screw.

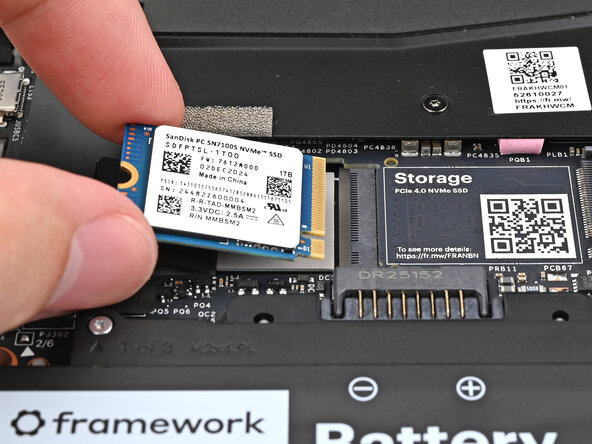

25. Grip the end of the SSD with the screw hole and slide it out of its socket.
26. Remove the SSD.

27. Use your Framework Screwdriver to remove the 2 mm‑long T5 Torx screw securing the secondary SSD.

28. While pulling up on the black tab underneath the SSD, use your finger to slide the SSD out of its socket.
29. Avoid touching the gold contacts. Only press on the top label or the edges of the SSD.

30. Congratulations on completing disassembly! The remaining steps will show how to reassemble your Framework Laptop.

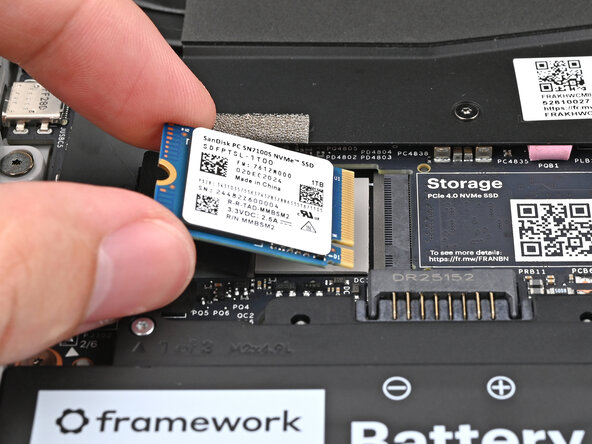

31. Hold the SSD by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.
32. Align the SSD's gold contacts with its socket.

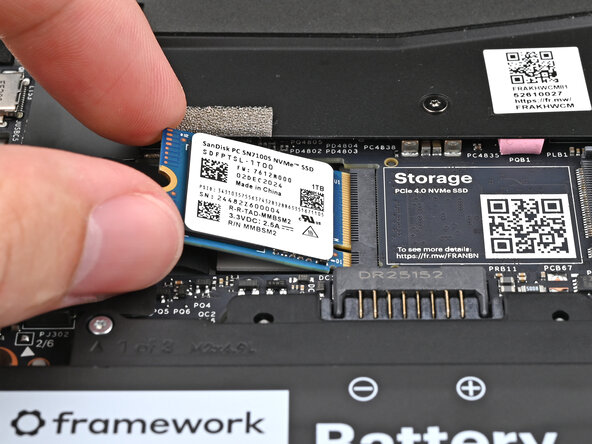

33. Insert the SSD partially into the socket at a shallow angle. You should still be able to see most of the gold contacts.

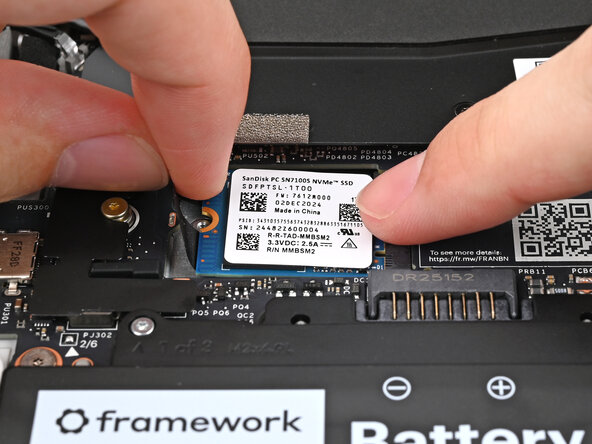

34. Press the SSD flat to the Mainboard.

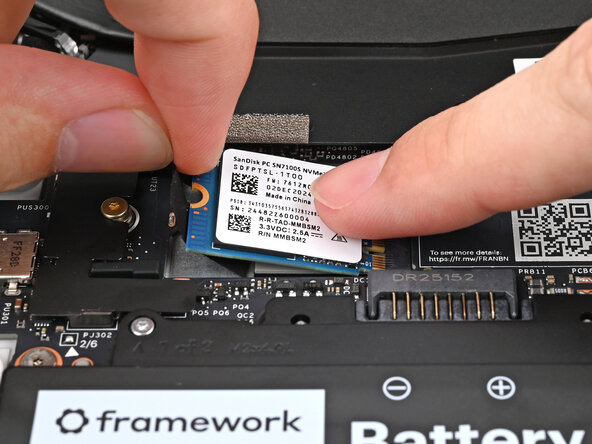

35. While keeping the SSD flat to the Mainboard, push it into its socket until its golden contacts are completely covered.

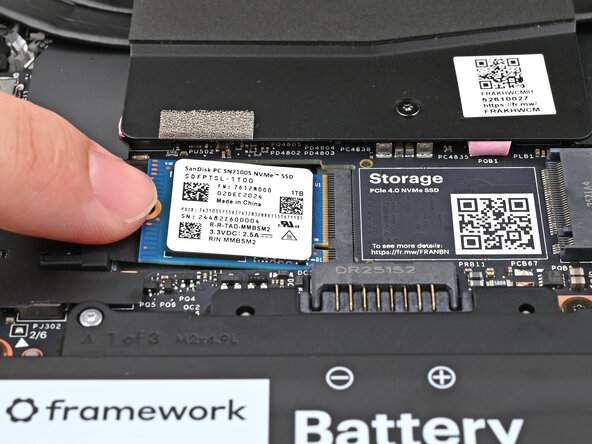

36. Use your Framework Screwdriver to install the 2 mm‑long T5 Torx screw securing the SSD.

37. Hold the SSD by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.
38. Insert the SSD into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.
39. The SSD fits into the socket in one orientation. If it doesn't feel like it fits, try flipping the module.

40. While holding the SSD flat to the Mainboard, use your Framework Screwdriver to install the 2 mm‑long T5 Torx screw securing the SSD.

41. Place the Mid Plate on the laptop, making sure it sits evenly on its alignment pegs.

42. Use your Framework Screwdriver to tighten the 16 captive T5 Torx screws in order (starting with 2) to secure the Mid Plate evenly.

43. Align the Mid Plate cable press connector over its socket and press down to connect it.

44. Your Input Module(s) might be different, but the procedure to remove them is the same.
45. Align the top edge of the Input Module with the top edge of the laptop.
46. Lay the Input Module on the laptop and let the magnets pull the keyboard into place
47. Make sure the Input Module is seated properly on its alignment pegs and sits flush with the edges of the laptop.
48. Repeat for any remaining Input Modules.

49. Align the top edge of the keyboard with the top edge of the laptop.
50. Lay the keyboard on the laptop and let the magnets pull the keyboard into place
51. Make sure the keyboard is seated properly on its alignment pegs and sits flush with the edges of the laptop.

52. Place the Touchpad Module flat on its cutout so its clips are properly aligned.
53. Press the Touchpad Module down and slide it into place so it lines up evenly with the bottom edge of the laptop.

54. Place the Touchpad Spacer over its spot on the laptop with the bottom edge overhanging slightly.
55. Slide the Touchpad Spacer towards the top of the laptop to secure it.
56. Repeat the same procedure for the other Touchpad Spacer.

57. Push the Input Module latches back into place to lock them.
