Shimano Road Bike ST-6700 Shifter Covers Replacement

ID: 206879

Description: If your road bike's shifter hoods are peeling...

Steps:

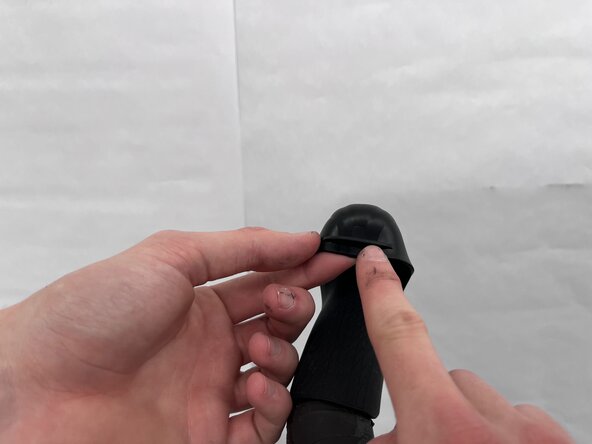

  1. Find the model number and the brand. We will be replacing the Shimano ST-6700 shifter covers.
  2. Finding the exact model and brand is very important as other models or brands may not fit.
  3. The model number and brand may not be in the same location. Check along and around the shifter hoods.
  4. Step image Step image Step image
  5. Use a hairdryer or heat gun to heat up the covers to make them more malleable.
  6. Step image Step image
  7. Remove the old covers by pulling the front up and rolling the back part over.
  8. Step image Step image Step image
  9. Clean the surface using paper towels and isopropyl alcohol.
  10. Step image Step image
  11. Coat the surface in more alcohol.
  12. This makes installation easier and isopropyl is fast drying meaning after it dries, it should become more rigid.
  13. Step image Step image Step image
  14. Heat up the new covers with the hair dryer on a low setting to avoid melting the part.
  15. If you do not have a hair dryer or heat-gun you may boil some water and heat up the covers by submersing them for a few minutes. Be careful removing them; if the water is too hot, use tongs or other tools to remove the covers.
  16. If you are using a different brand of shifter covers, check to see if they correspond to the left or right handlebars of the bike.
  17. Step image
  18. Pull the covers up.
  19. Step image Step image
  20. Pull the covers on by pulling them up and over the top of the hoods.
  21. Step image Step image Step image
  22. Locate the seam near the top of the hoods.
  23. Step image Step image Step image
  24. Set the seam into the groove at the top of the bars.
  25. Step image Step image Step image
