HP Chromebook 14a-na0031wm Speaker Replacement

ID: 212652

Description: This will show you how to remove the speakers...

Steps:

1. Use a spudger to pry and remove the rubber screw protectors.

2. Remove all eight 5mm screws using a Phillips #00 screwdriver.

3. Insert the opening tool in the bottom of the case.
4. Apply pressure around the edges to pry off the case.
5. When reassembling, line up the bottom of the case and gently apply pressure to reattach.

6. Use a spudger to flip up the tab on the ribbon connector.
7. Detach the cable connecting the battery to the motherboard.
8. Ribbon cables are easy to damage; use caution when detaching them.

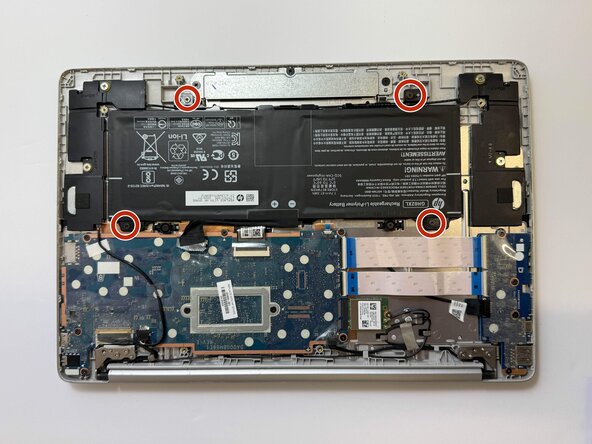

9. Remove four 4mm screws using a Phillips #0 screwdriver.
10. Lift the cord and remove the battery from the case.

11. Disconnect the speaker cable and peel back the tape securing the cable to the motherboard.

12. Remove the four 4 mm screws using a Phillips #1 screwdriver.

13. Remove the speaker cable from the routing channel.
14. Lift the speakers out of the laptop.
