HP Pavilion 15-cs3079nr Charging Port Replacement

ID: 212755

Description: Device issues like poor battery life or...

Steps:

1. Power the device off before disassembly.
2. Close the device and flip it so the bottom panel faces up.

3. Remove the two silicon feet near the hinges with a spudger.
4. If you intend to reuse the feet, heat them with a hairdryer prior to removal and take care not to bend, warp, or stretch them.

5. Use a Phillips #0 screwdriver to remove the three 7 mm screws from the recesses.

6. Use a Phillips #0 screwdriver to remove the three silver 5 mm case screws from the front of the device.

7. Place the suction handle on the case.
8. Insert an opening pick between the case sections and work around the perimeter of the device to separate the lower case from the chassis.

9. Use a Phillips #0 screwdriver to remove the three 4.5 mm screws securing the battery.
10. The number of screws on your device might differ from the example images. Ensure all screws are removed before moving on.
11. Carefully lift and remove the battery.

12. Locate the metal hinge securing the charging port component.
13. Use a Phillips #0 screwdriver to remove the two black 6 mm screws securing the hinge.

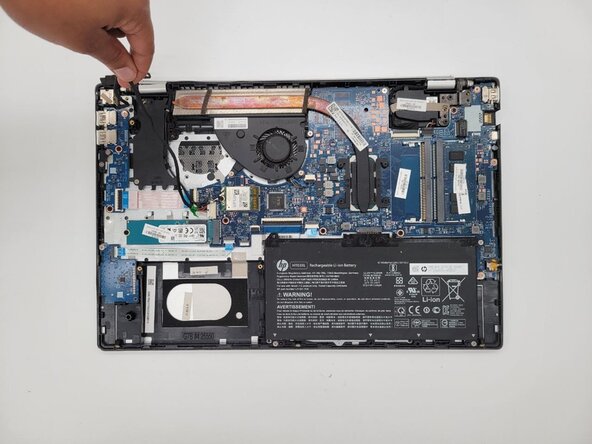

14. Lift the hinge clear of the charging port component and its cable.

15. Unseat the charging port cable from the retaining hooks.

16. Use a spudger to pry up the charging port.

17. Disconnect the charging port cable from its motherboard socket.
18. Remove the charging port.
