Cummins X15 Engine Troubleshooting and Maintenance Guide

ID: 213216

Description: Introduction: This guide covers the essential...

Steps:

  1. CUMMINS X15 ENGINE — Cleaning and Disassembly Upon completing the disassembly of the engine, thoroughly clean every section to ensure that each component remains free of debris and surface oil residue; additionally, inspect each component for structural integrity.Ensure the performance of every component.
    2. Step image

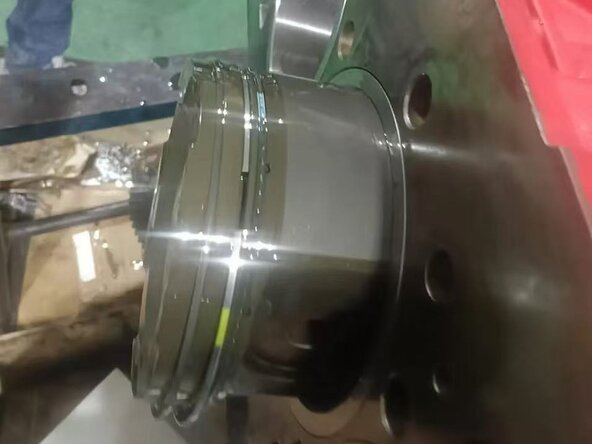

  2. Cummins X15 Engine — Component Assembly Assemble the engine's core components—connecting rods, pistons, piston rings, and cylinder liners—into their designated positions in accordance with technical specifications; verify the conformity of the components as well as their correct installation orientation.
    3. Step image Step image Step image
  3. Cummins X15 ENGINE — Installation of Core Components Install the installed piston, connecting rod, and piston rings into the cylinder block. Be sure to use professional installation tools and spray engine oil inside the cylinder block for lubrication to prevent damage to the components.
    4. Step image Step image Step image
