Lenovo ThinkBook 15 G2 ITL Speaker Replacement

ID: 213314

Description: The speakers in your Lenovo ThinkBook 15 G2 ITL...

Steps:

  1. Make sure the computer has been shut down before proceeding.
  2. Place the computer upside down on a flat surface.
  3. Remove ten 5mm screws with the Phillips #00 screwdriver.
    4. Step image
  4. Pry up the latches using an opening pick.
  5. Remove the lower case to show the internal components of the computer.
    6. Step image Step image
  6. Disconnect the battery pack cable from the system board.
  7. Use your fingernails to pull the connector to unplug it. Do not pull the cable.
  8. Remove the four 5mm screws with the Phillips #00 screwdriver.

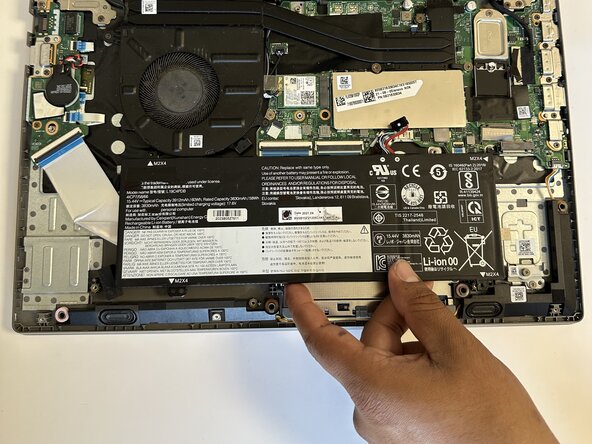

  9. Gently pry and remove the battery pack.
    10. Step image Step image Step image
  10. Gently pull the speaker cable connector straight out from its socket on the motherboard.

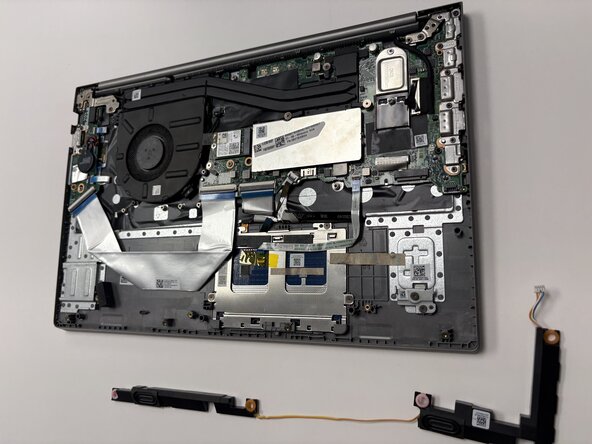

  11. Lift the speaker straight up and out of the laptop.
    12. Step image Step image Step image
