MacBook Pro 15" Retina Display Late 2013 AirPort Board Replacement

ID: 23391

Description: Having connectivity issues? Use this guide to...

Steps:

  1. Remove the following P5 pentalobe screws securing the lower case to the MacBook Pro:
  2. Eight 3.0 mm
  3. Two 2.3 mm
    4. Step image
  4. Lifting from the edge nearest the clutch cover, lift the lower case off the MacBook Pro.
  5. Set the lower case aside.
    6. Step image
  6. Peel back the warning label covering the battery connector.
    7. Step image
  7. Using the flat end of a spudger, gently pry the battery connector straight up out of its socket on the logic board.
  8. Bend the battery cables back and out of the way, ensuring that the battery connector doesn't accidentally make contact with the logic board.
    9. Step image Step image
  9. Use the tip of a spudger to detach the three antenna connectors up from their sockets on the AirPort board.
    10. Step image
  10. Remove the single 2.9 mm T5 Torx screw securing the AirPort board to the logic board.

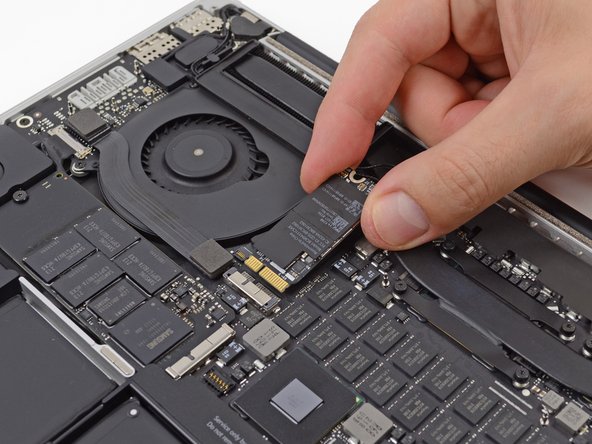

  11. Grasp the edges of the board and slide it out from its connector.
  12. Lift and remove the AirPort board.
    13. Step image Step image
