Samsung Galaxy Pocket (GT-S5300) Teardown

ID: 23508

Description: This is a Teardown of my old broken Samsung...

Steps:

1. Remove the battery cover
2. Then remove the battery

3. Remove all 4 screws

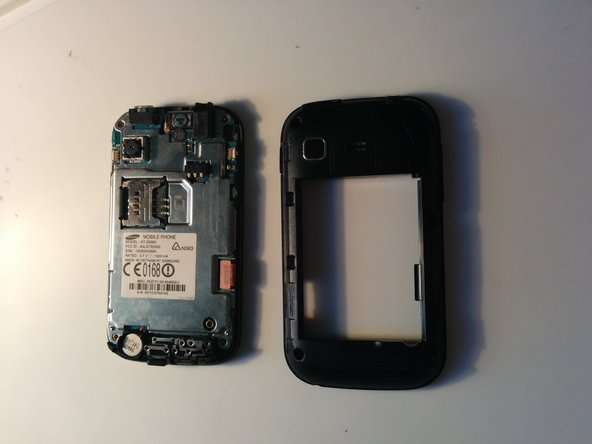

4. Slide a guitar pick between the sliver bezel and the rear of the phone
5. Slide it all the way around until the rear is loosened from the logic board and screen

6. Remove LCD connector

7. Remove logic board from screen by lifting the logic board up and removing the digitizer connector

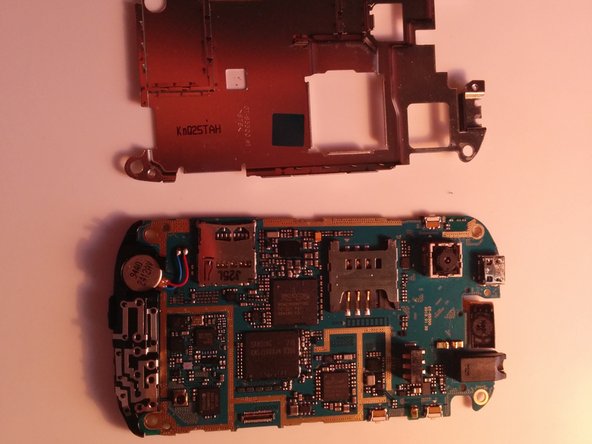

8. Remove the 5 screws to remove the shield

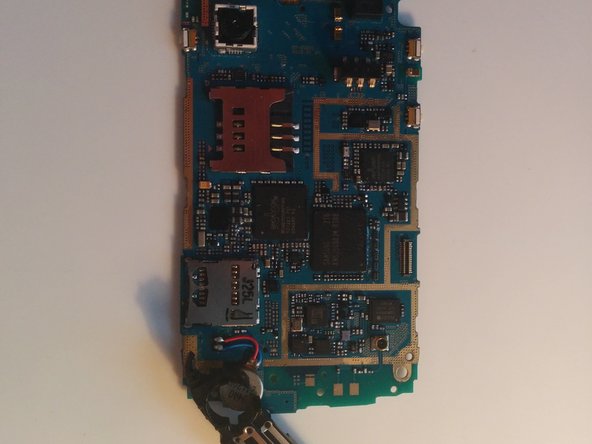

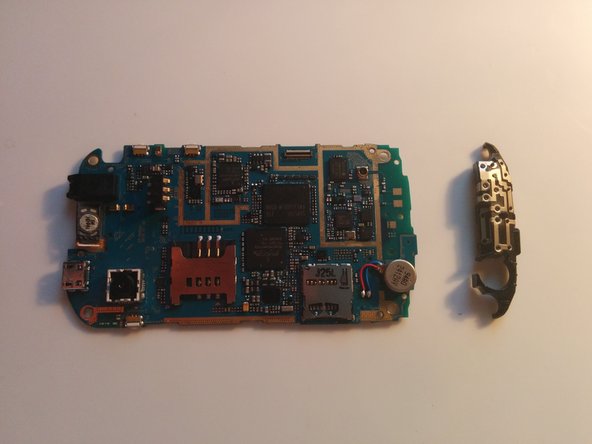

9. Remove what seems to be the antenna from the logic board

10. Slide guitar pick between the digitizer and lcd
11. Make sure not to get under the black adhesive on the back be the digitizer
12. At the top of the digitizer there is a circuit be careful up there

13. Então essa é a minha desmontagem para o bolso da galáxia Samsung (GT-S5300)
