Cowon iAudio 7 8GB Teardown

ID: 23590

Description: A Cowon iAudio7 8GB MP3 player torn apart.

Steps:

  1. The device in original condition.
    2. Step image
  2. Removed the back of the case and the PCB screws. I had to drill open one of the case screws as it was stuck.
    3. Step image
  3. All parts disassembled. Second photo shows back side of the PCB.

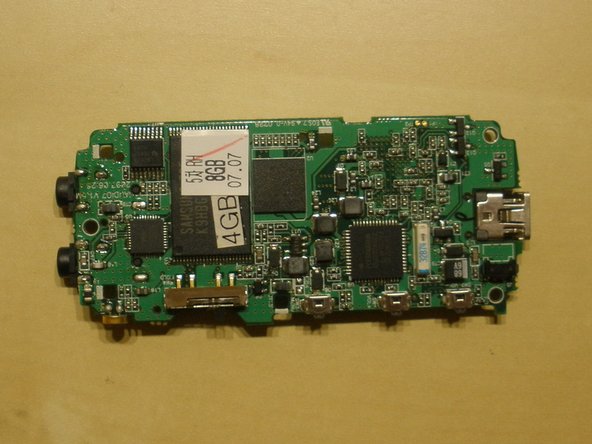

  4. As we can see, the device contains two Samsung 4GB flash chips along with a K4M28163PH-BG75 memory controller.
  5. A Telechips TCC771L as main CPU.
  6. A PCF50606HN battery/power management chip.
    7. Step image Step image
