Sony Xperia U Teardown

ID: 27617

Description: The aim is simple, to teardown the Xperia U to...

Steps:

1. Remove the back cover and the bottom clip. And also remove the sim card and battery.

2. Remove the 6 T5 screws

3. Remove the back piece, reveiling the headphone jack, speaker and the Liquid contact indicator.
4. Camera and flash
5. Vibrating motor
6. Headphone jack
7. Speaker
8. Liquid contact indicator

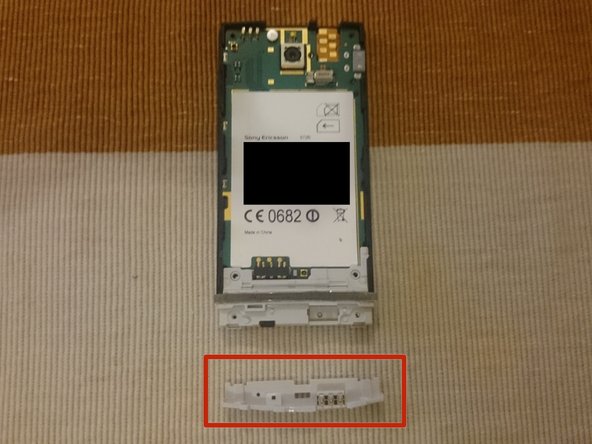

9. Remove the 2 T5 screws.

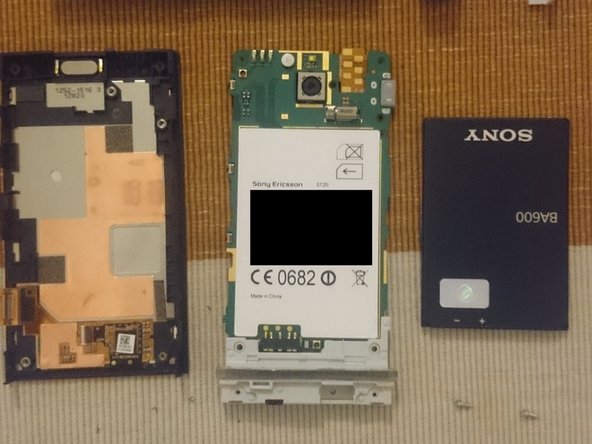

10. Remove the lower antenna.

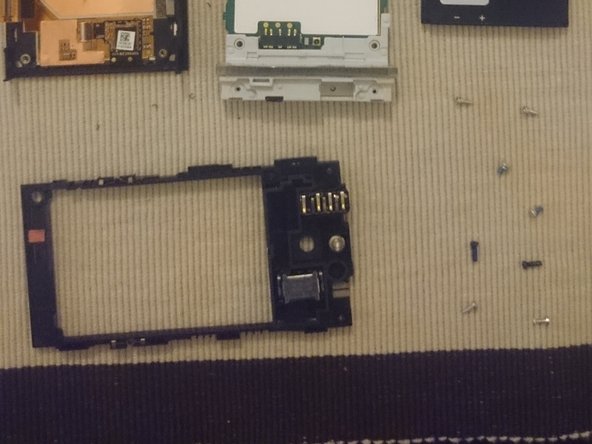

11. Carefully remove the motherboard being aware on the lower left edge, there is the display connector.
12. Be aware of the display connector on the lower left.

13. Removal back and bottom cap
14. Screen + main case, motherboard + antenna, battery
15. Back casing holding the headphone jack, speaker and liquid contact indicator.
