Acer Aspire E1-571 - HDD / RAM Memory / WiFi card Replacement

ID: 27779

Description: This manual will help you if you want to change...

Steps:

1. Remove the battery.
2. Unscrew 2x screws M 2.5x8.0

3. With a plastic tool remove the Memory RAM / Hard Drive / Wifi Cover Door

4. Drag the SATA HDD to release it.

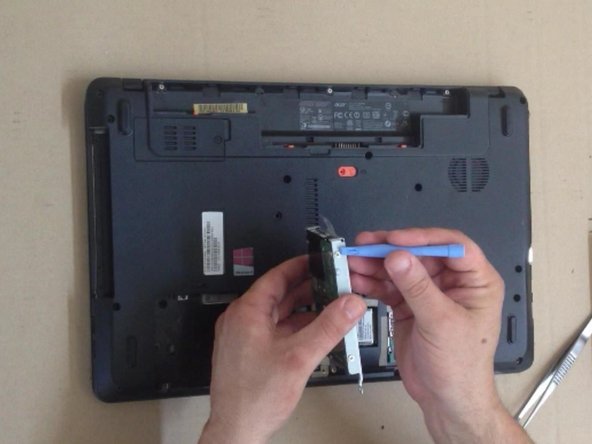

5. Unscrew 4x screws to remove the disk from the HDD Caddy Holder.

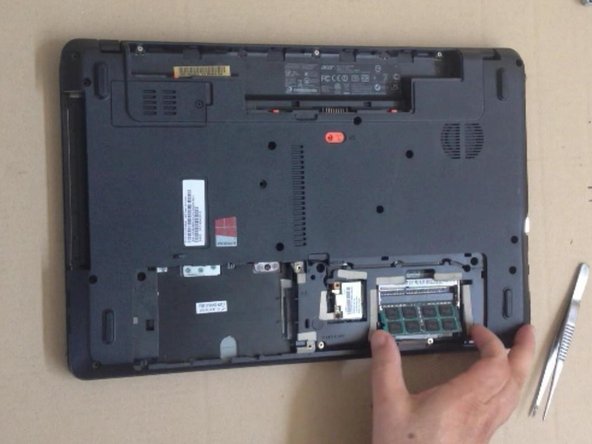

6. Use plastic tool to release the DDR3 RAM memory module from the locking clips.
7. The RAM memory modules have a key notch position to prevent putting the board incorrectly.

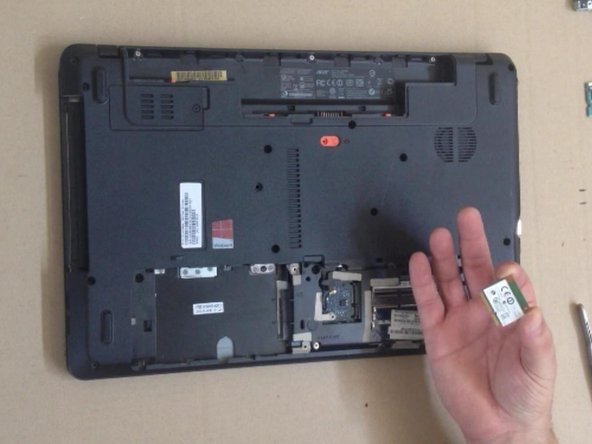

8. To release the Half Mini PCI WiFi card, unscrew the screw and disconnect the coaxial antenna cable.
9. Did you do it successfully?
