Logitech MX518 Gaming Mouse Scroll wheel replacement for cleaning

ID: 28723

Description: The scroll wheel on this gaming mouse has holes...

Steps:

1. Use a thin blade to peel up the corners and remove the mouse feet. They re-adhere very well, so be careful to not damage them or get the sticky side dirty.
2. Unscrew the three screws that are now visible.
3. Gently pull apart the top and bottom halves of the mouse. They will be connected by a wire.

4. Slide the scroll wheel up and out of the housing.

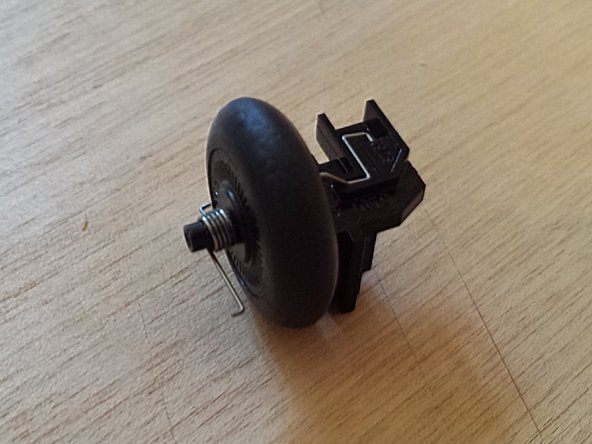

5. Take the scroll wheel assembly apart and clean off any obvious debris.
6. Look through each of the holes in the scroll wheel to check for debris that could be obstructing the optical sensor. Use a needle to clean out any obstructions.

7. Optional: If there is any material near the base of the mouse, under the scroll wheel, the sensor chip can be unscrewed and removed.
8. Use a gas duster to remove any remaining dust from inside the mouse.

9. Reassemble the scroll wheel.
10. If done correctly, the wheel should click while scrolling. The wheel should not spin freely.
11. Optional: Before reinserting the scroll wheel peg, apply lubricant if needed.

12. Slide the scroll wheel back down into its housing.
13. Make sure that the spring is aligned correctly.
14. Place the top half of the mouse back on to the bottom half and screw the mouse together.
15. Stick the mouse feet back on to their respective locations.
