Toshiba Satellite C850 - WiFi / Bluetooth half mini PCI express card Replacement

ID: 28940

Description: For many laptops the WiFi card is under the HDD...

Steps:

1. Switch-off the laptop and remove the battery.
2. Use cutter and plastic tool to remove the Keyboard, held by 7x locking clips.

3. Remove 7x screws from the upper case.
4. Disassemble the HDD, RAM Memory cover and remove the HDD (just for safety).
5. Then remove 12x screws so you can start with disassembling the bottom case.

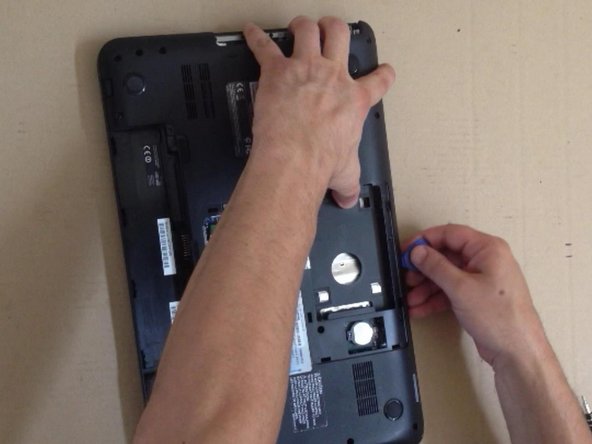

6. Use a plastic tool for separating the bottom case from the laptop.

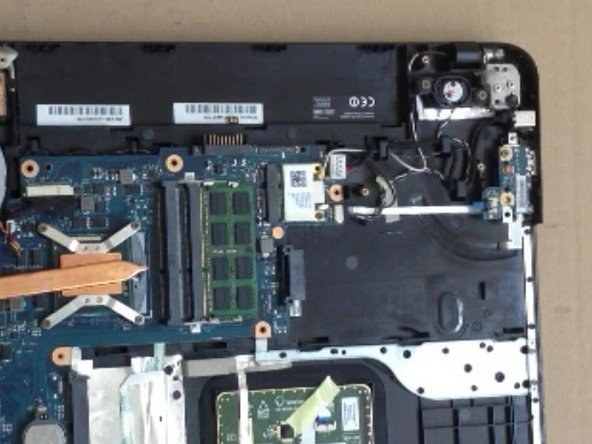

7. Here is the WiFi, Bluetooth half mini PCIe card.
8. Disconnect 2x antenna cables (luetooth and WiFi).
9. The mini PCI card is held by one small screw.
