2009-2012 Toyota Corolla Cabin Air Filter Replacement

ID: 29022

Description: Follow this guide to replace the cabin air...

Steps:

1. Get into the front passenger seat and open the lower glovebox.

2. Push the two side walls of the glovebox towards the center to free the stopper peg on each side.

3. Move to the right side of the glovebox and gently pop off the black retaining arm.

4. Gently lower the glovebox to the floor. It should hang in the position shown.
5. If your glovebox falls off the hinge, find the angle it came off at and hook it back on.

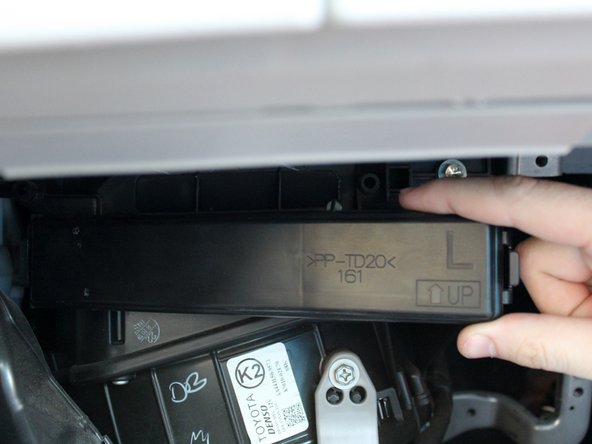

6. Release the tab on the right side of the air filter cover, and swing it to the left. It should then easily pull away.

7. Pull the old cabin air filter out of the housing.
8. Cabin air flows from top to bottom. You can tell based on which side is dirty (the top side, in this case).
9. The arrow on some replacement filters indicate which way faces up. On others, the arrow indicates the direction of airflow, which would be down. Refer to your replacement filter's instructions and install accordingly.
