Fluval 306 Canister Filter Impeller Replacement

ID: 31782

Description: If you need to replace the impeller for your...

Steps:

  1. Lift AquaStop Valve lever all the way up. This will stop the water flow and preserve the vacuum so that there shouldn't be a need to prime the filter again.
    2. Step image Step image Step image
  2. Unplug the device from the electrical outlet.
    3. Step image Step image

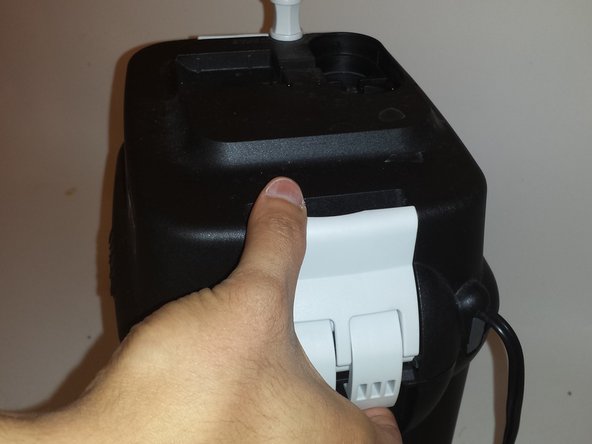

  3. Lift the AquaStop Valve latch all the way up.
  4. Pull the AquaStop Valve up and out of its place in the filter.
    5. Step image Step image Step image

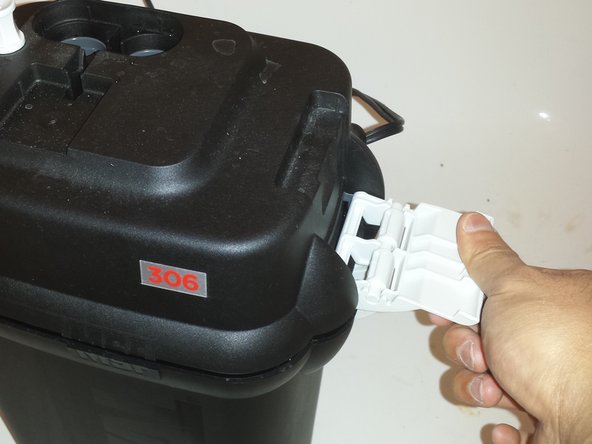

  5. Make sure the bottom two latches are down.
  6. Push the top part open and push down on both sides of lid until lid is opened slightly.

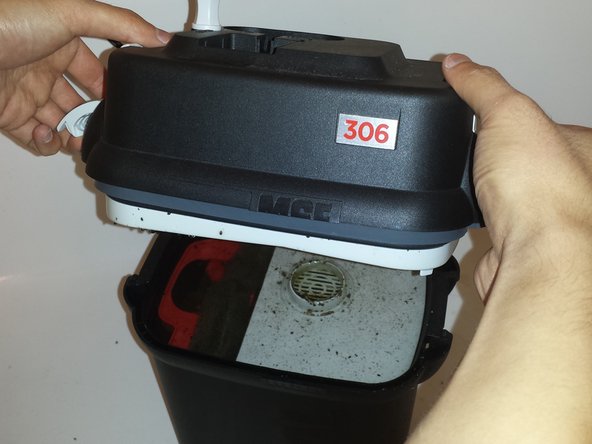

  7. Gently lift lid off of the rest of the case.
    8. Step image Step image Step image

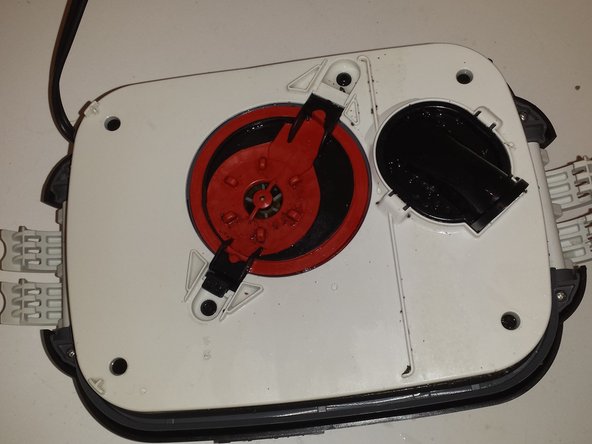

  8. Place lid so that the impeller cover is facing up.

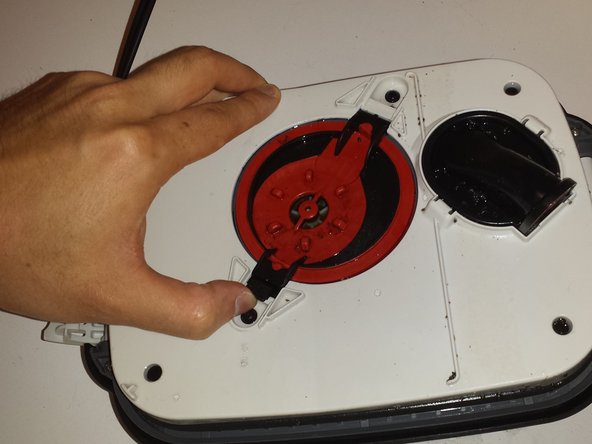

  9. Push lock towards impeller while lifting up

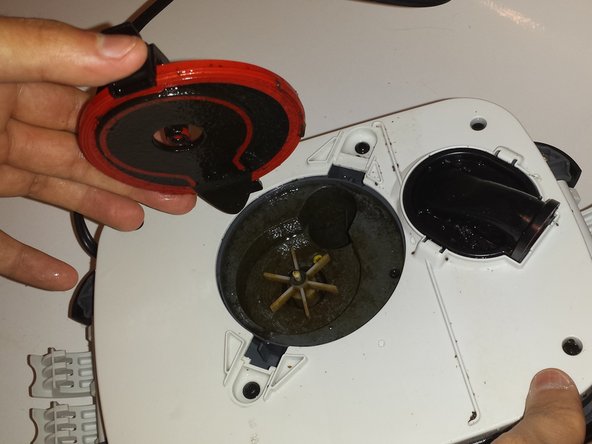

  10. Lift impeller cover up and off the impeller
    11. Step image Step image Step image

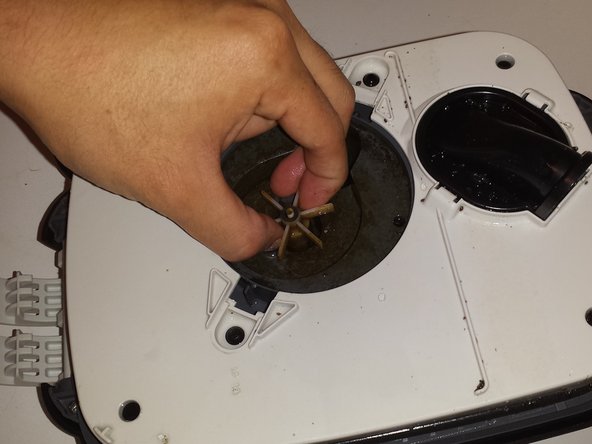

  11. Firmly lift the impeller up and out of its casing.
    12. Step image Step image

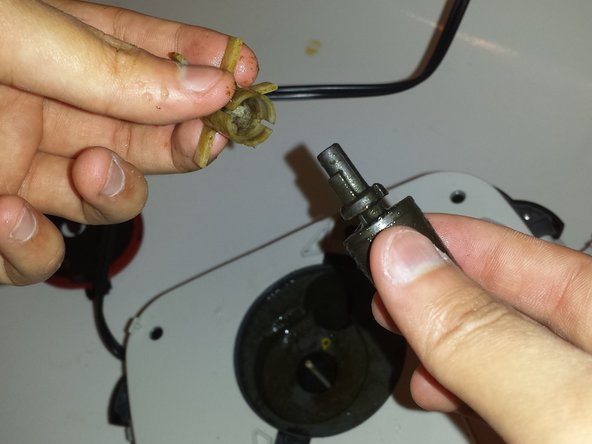

  12. Replace the impeller by holding the shaft and pulling gently on the old impeller until it is released.
  13. Place the new impeller onto the shaft.
    14. Step image
