How To Install Universal LED Cab Roof Lights For A Truck

ID: 35508

Description: LED roof cab lights are quite a customizable...

Steps:

1. There are a couple ways you can power up this LED. You have the choice of adding a switch or just using the truck's interior light switch. For demonstration purposes, we are using the truck's interior lights to power up the entire assembly.

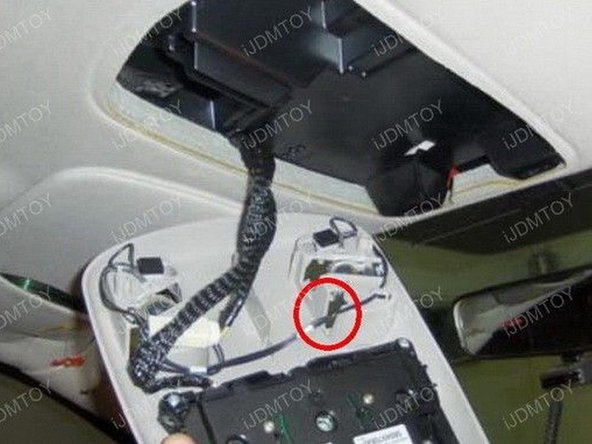

2. Expose the wires by removing the entire front map light assembly.

3. Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.

4. Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.

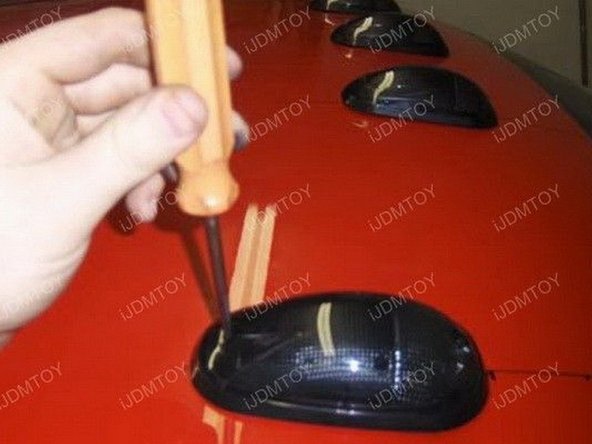

5. Use a screwdriver and attach the screws at the front and the rear of each LED roof lamp to permanently mount it.

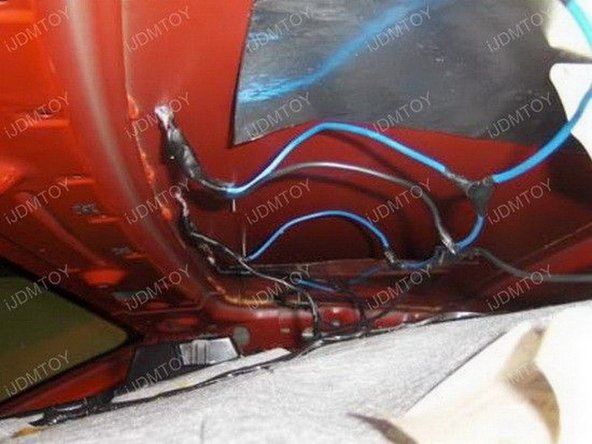

6. Wire up the LED lights in parallel. Use some electrical tape to secure the connections. Route the wires through the front map light assembly to complete the wiring portion.

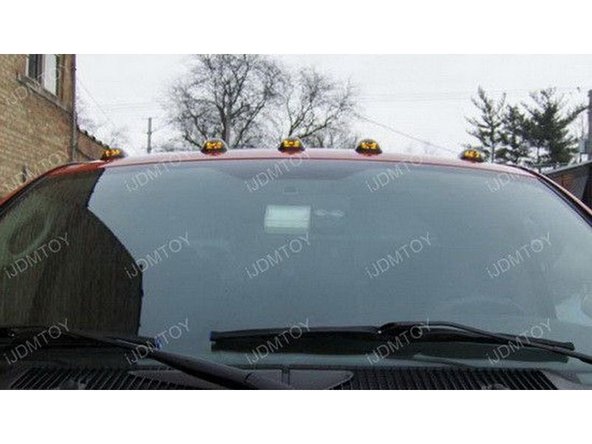

7. Test everything and enjoy your new LED cab roof light.
