Motorola RAZR Maxx HD Rear-Facing Camera Replacement

ID: 37903

Description: Removal of the motherboard is necessary to...

Steps:

1. Use the Torx T5 Screwdriver to remove two 5.0 mm screws at the bottom of the phone.

2. To remove the SIM card, use an unfolded paperclip to press down on the metal plate on the left side of the phone until it pops up.

3. Gently push the screen toward the top edge of the phone and tilt the screen to reveal the black flex cables.
4. Do NOT remove the screen all the way or the flex cables will be damaged.

5. Release the two black ribbon flex cables by gently pulling up on the connection using the spudger. Then lift the screen to remove.
6. Make sure to remove the flex cables before completely removing the screen.
7. When reassembling, align the white bands on the edge of the screen so that a connection is made.

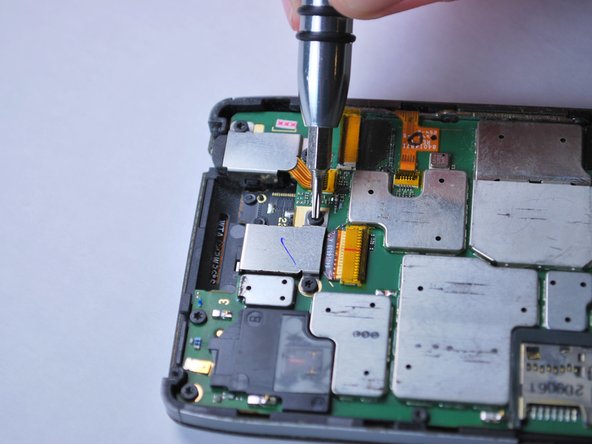

8. Using a T5 Torx screwdriver, unscrew the two 4.0mm screws on the rear-facing camera cover.

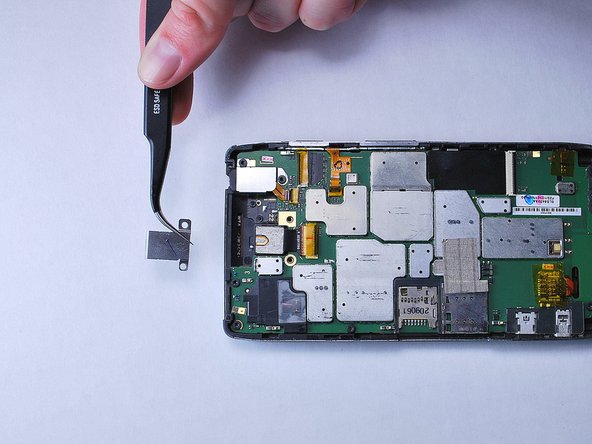

9. Use tweezers to remove the rear-facing camera cover.

10. Use the spudger to gently lift the rear-facing camera until it is detached from the back cover.
11. Release the yellow ribbon cable by lifting up on the connection to the motherboard with the spudger.

12. Use tweezers to gently remove the rear-facing camera by lifting it up off of the motherboard.
