Torque King Electric RTR RC Monster Truck Front Wheel Suspension Replacement

ID: 37913

Description: This guide requires removing the casing and...

Steps:

1. From the top view, remove each of the four pins that hold the casing in place.

2. Slowly pull the casing up to remove it.

3. Using a Phillips 1 screwdriver, completely unscrew the 8mm screw located in the center of the wheel. Repeat this step for other wheels if needed.

4. Carefully pull the wheel off of its axle. Repeat for other wheels as necessary.

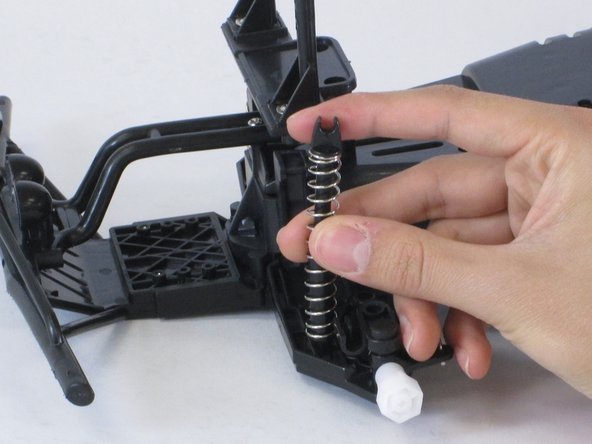

5. Pull the top half of the suspension to unclip it.

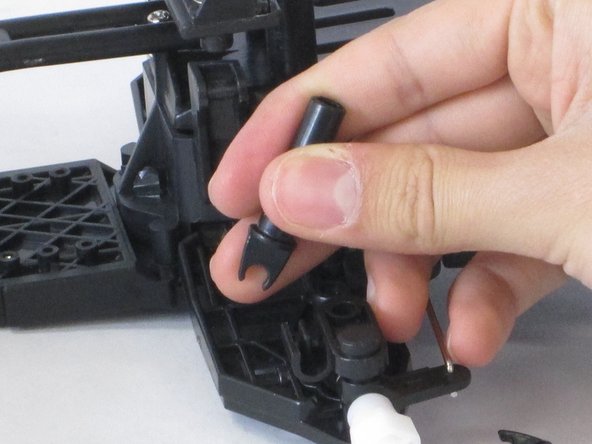

6. Remove the top clip along with the spring.

7. Pull up the bottom half of the suspension to unclip it.
