Hamilton Beach 25460Z Plug Wiring Replacement

ID: 37926

Description: This is a straight-forward process that...

Steps:

1. Unplug your device before proceeding with disassembly.
2. Remove the four 14mm screws from the bottom of the Panini Press using the T10 Screwdriver.

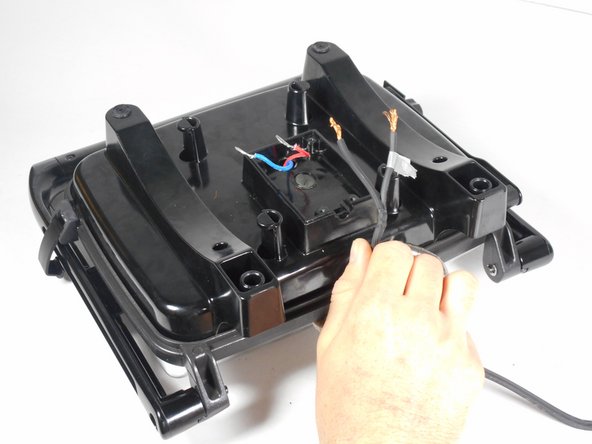

3. Lift up the plastic cover to expose the plug wiring.
4. Mark the plug wire connected to the red wire with a piece of tape. This will be used as a reference for reassembly.

5. Use the pliers to pinch the widest point of the cap. This should be done opposite of the already existing crimps.

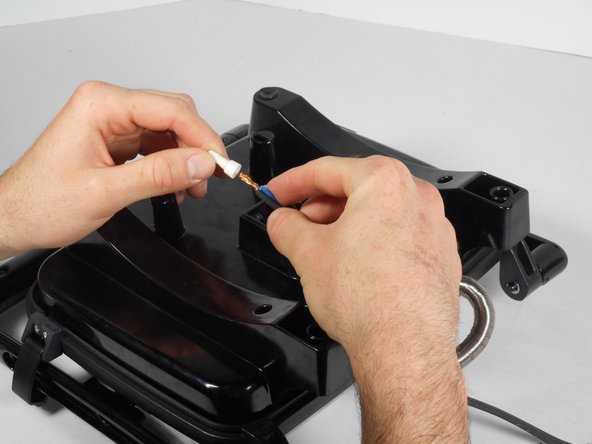

6. Slide off the white cap.
7. Repeat these steps for the second white cap.

8. Remove the two rubber screw covers from the bottom of the Panini Press.
9. Remove the four uncovered 10mm screws with the PH2 Screwdriver.

10. Lift the plastic lower heating element up and place to the side for reassembly. You have now disconnected the plug wiring completely.
