Motorola Moto X 2nd Generation Teardown

ID: 40630

Description:

Steps:

1. Remove SIM card tray.

2. Insert the eject pin into the hole inside of the port and push to open a gap between back cover and frame.
3. Place the guitar pick into the gap.

4. Slide the guitar pick to cut the adhesive sticker under the cover. It's a little strong. Finally, peel off the soft back cover.

5. Remove those two rubber cover.

6. Release the side button flex connector and battery connector respectively under the rubber cover.

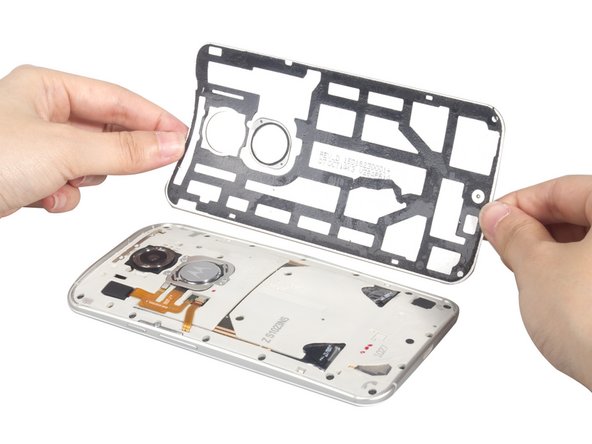

7. Twist off all 18 screws on the middle housing and remove it easily.

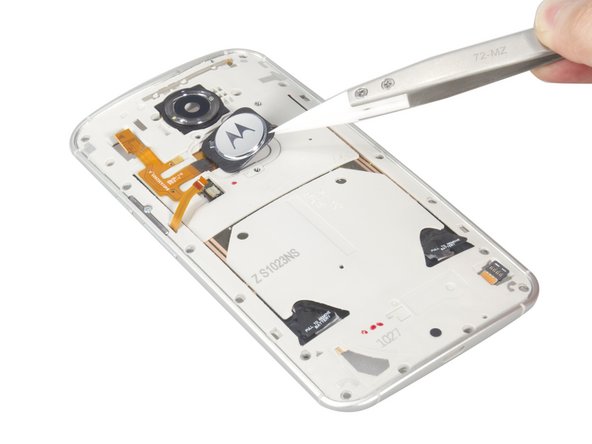

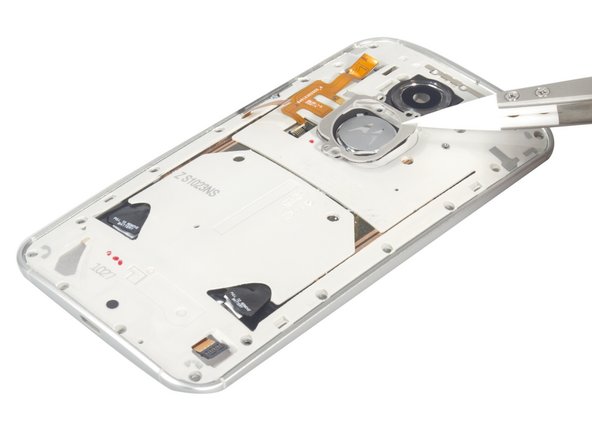

8. Remove the logo.

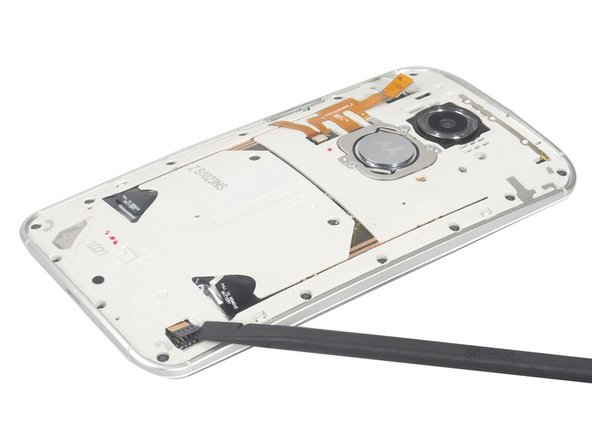

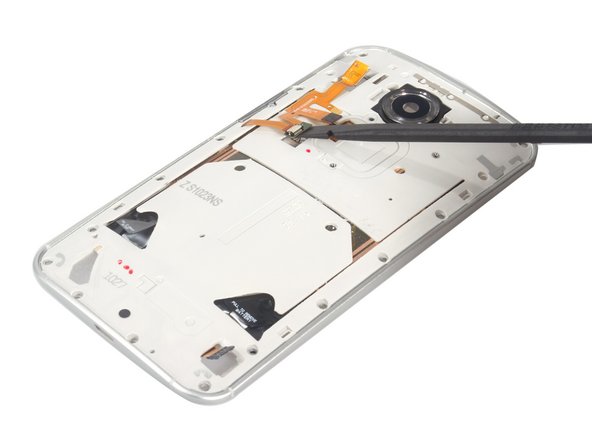

9. Get the flex loosen from battery

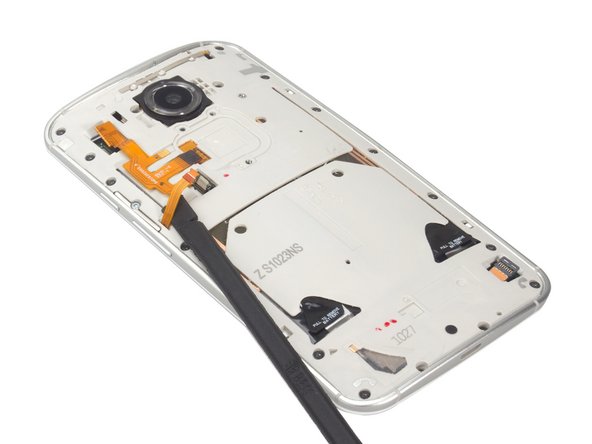

10. Get the flex loosen from the battery.

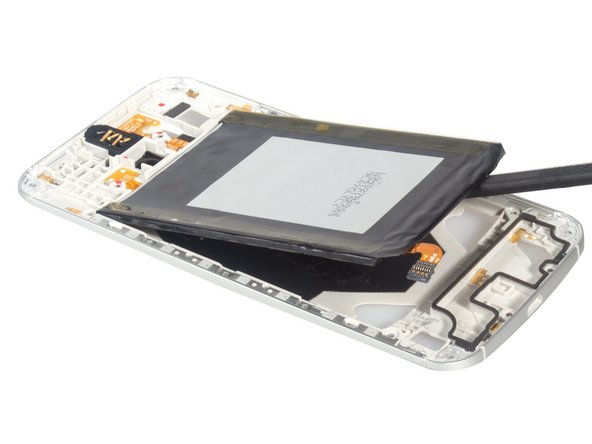

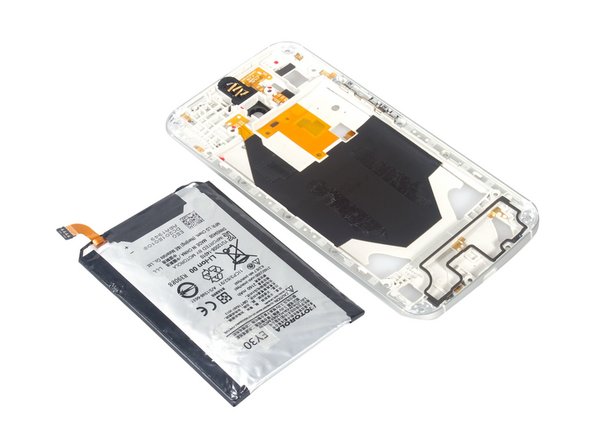

11. Pull the battery sticker and pry up the battery.

12. Twist off the screw and pry up the securing bracket.

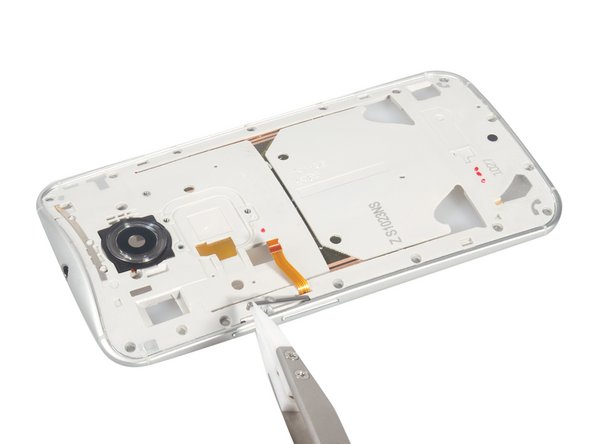

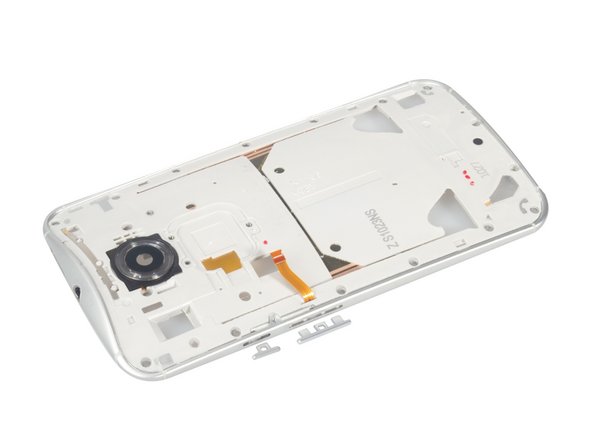

13. Remove the side buttons flex.

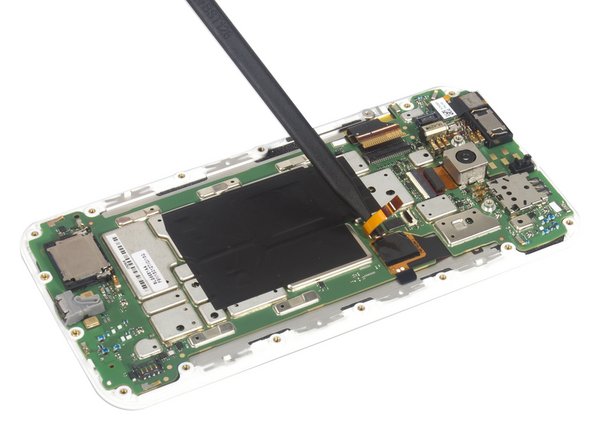

14. Release LCD connector.

15. Release digitizer connector.

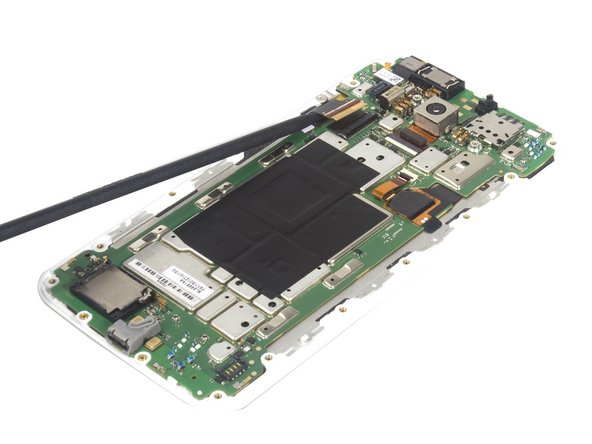

16. Pry up the motherboard and remove it carefully. At that time, we can separate the LCD screen from motherboard and get it alone.

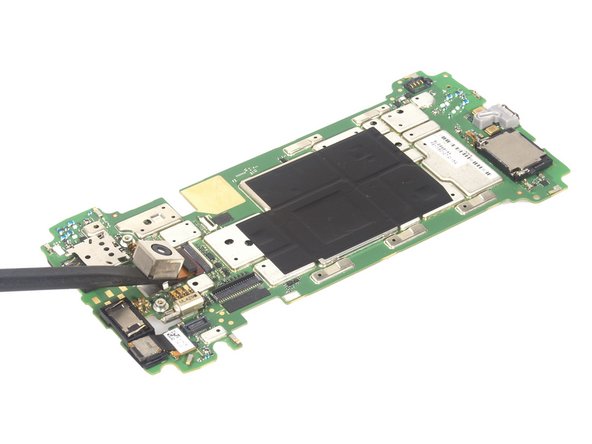

17. Release the connector and remove the rear camera.

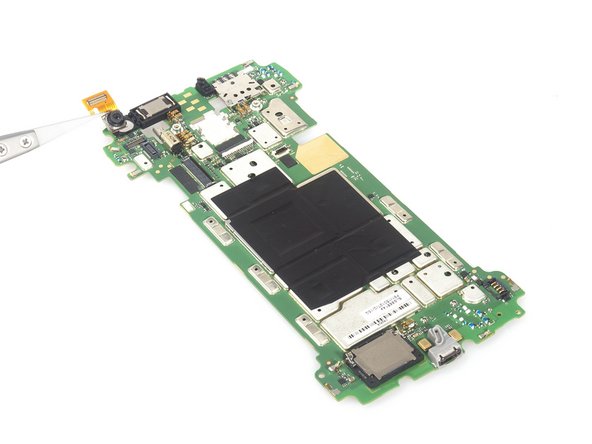

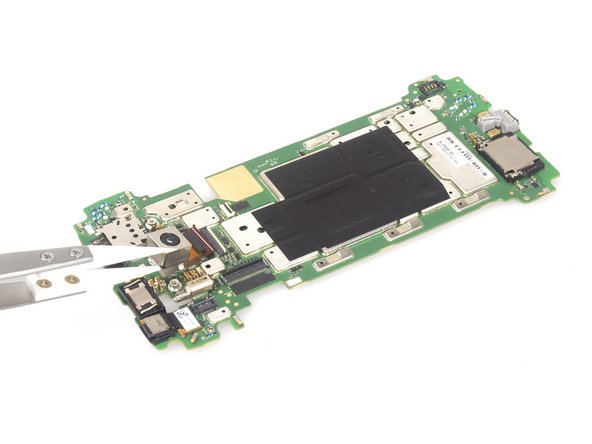

18. Remove front camera.

19. Done.
