Motorola Moto X 2nd Generation Power and Volume flex cable Replacement

ID: 40710

Description: Before you begin, download the Software Fix app...

Steps:

1. Remove SIM card tray.

2. Remove back cover.

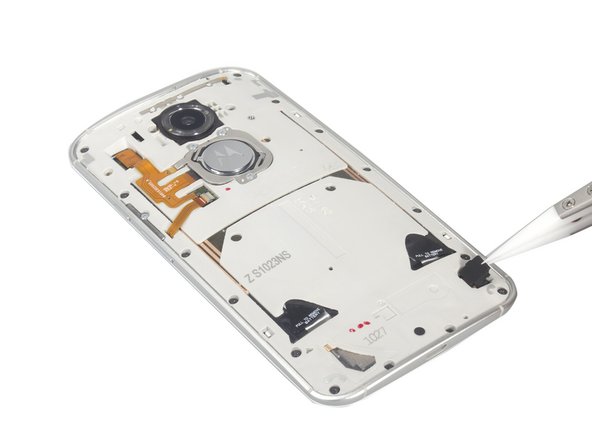

3. Remove those two rubber cover.

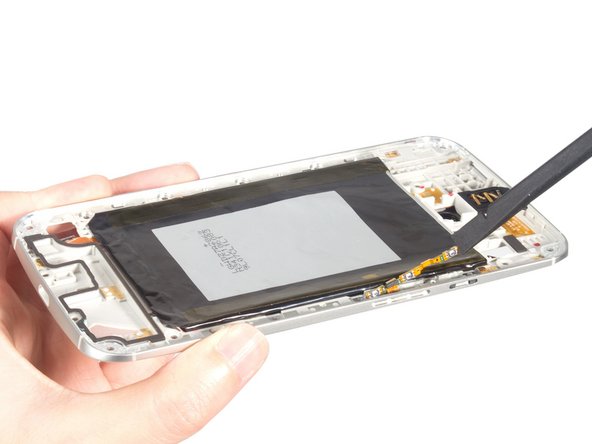

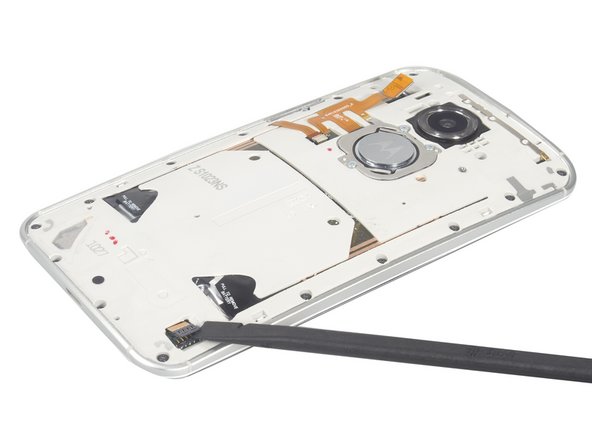

4. Release power connecting flex connector and battery connector.

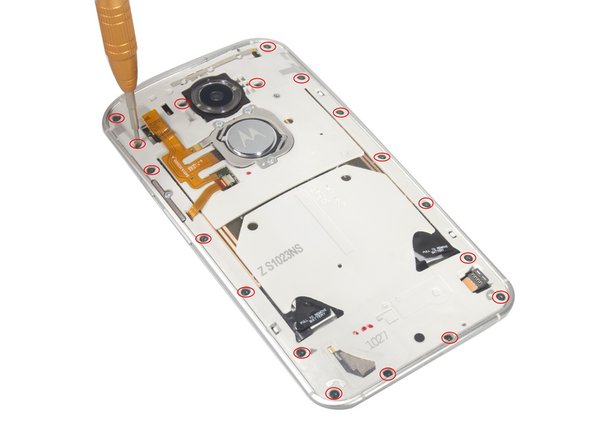

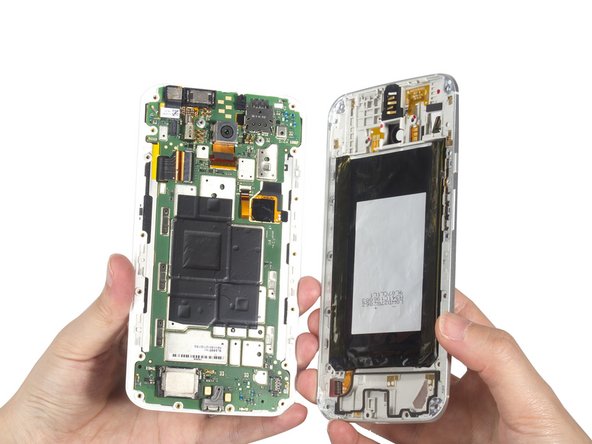

5. Twist off all 18 black torx screws and remove the middle housing from front assembly.

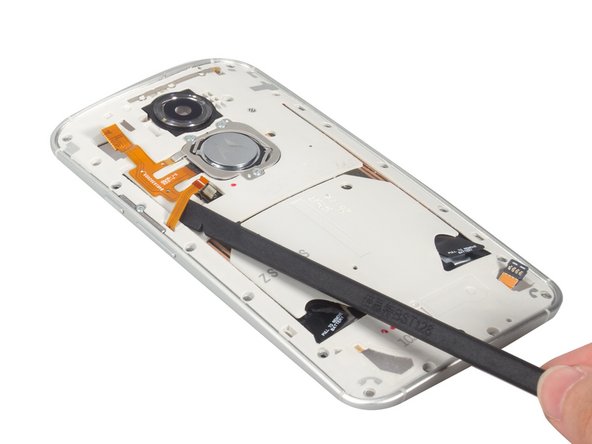

6. Release power flex connector from connecting flex.

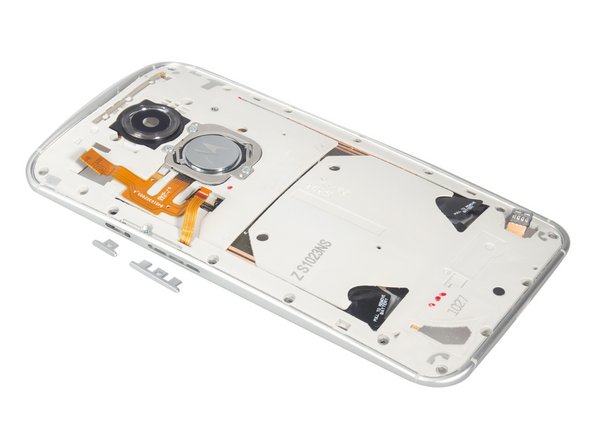

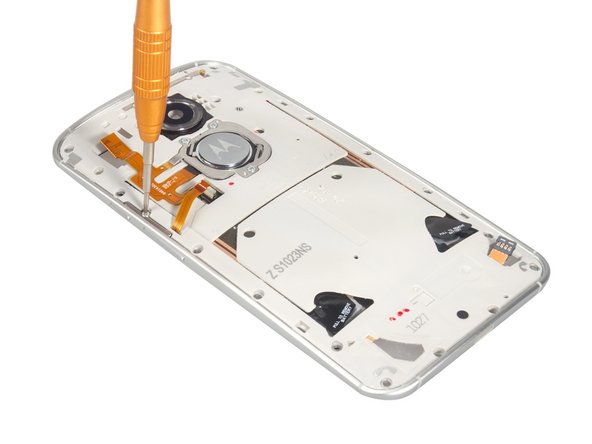

7. Remove securing bracket and side buttons.

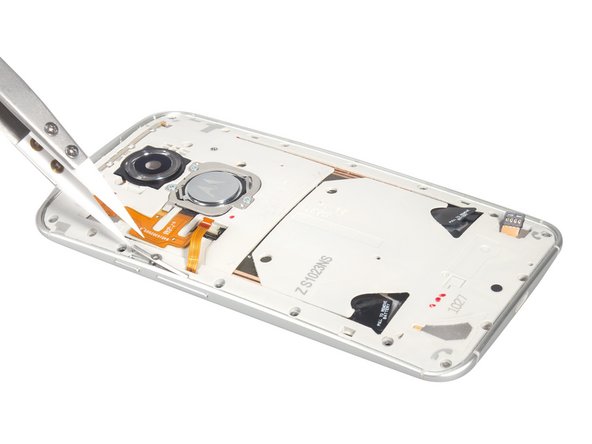

8. Pry up and remove the power flex.
