BlackBerry porsche design P'9981 Teardown

ID: 48964

Description: to see the full video open: BlackBerry Porsche...

Steps:

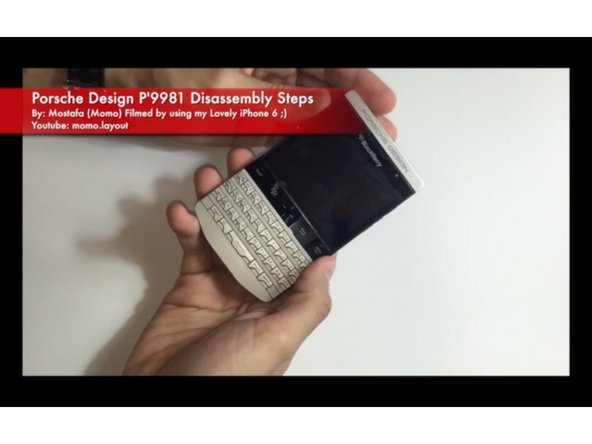

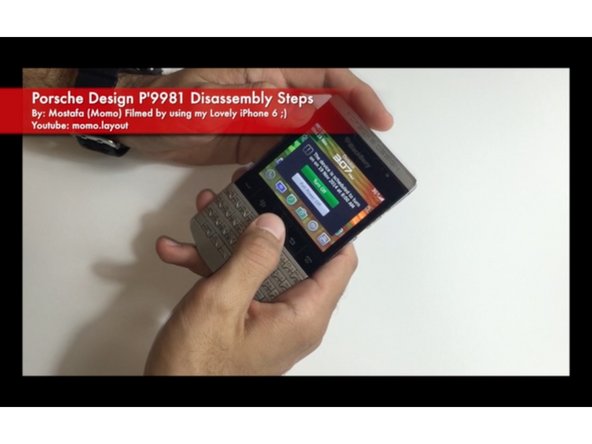

1. turn off ur porsche design P'9981

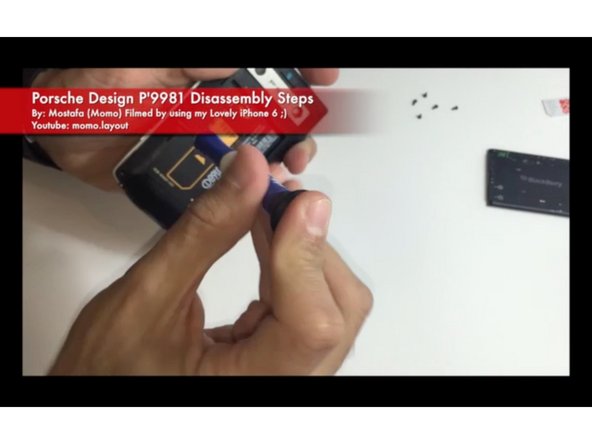

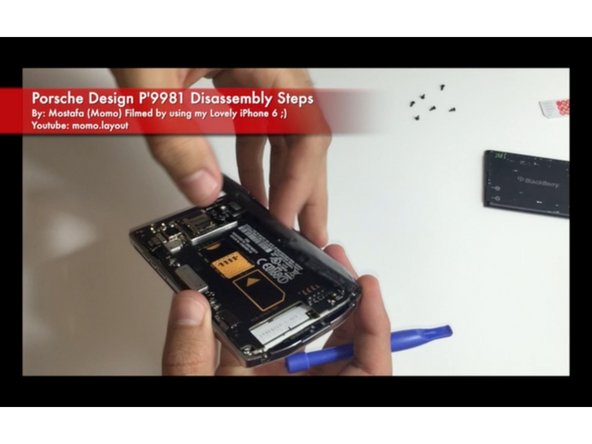

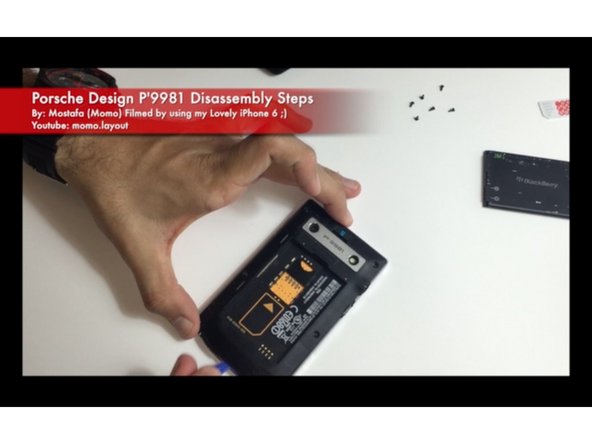

2. remove back cover ... then unscrew 6 screws

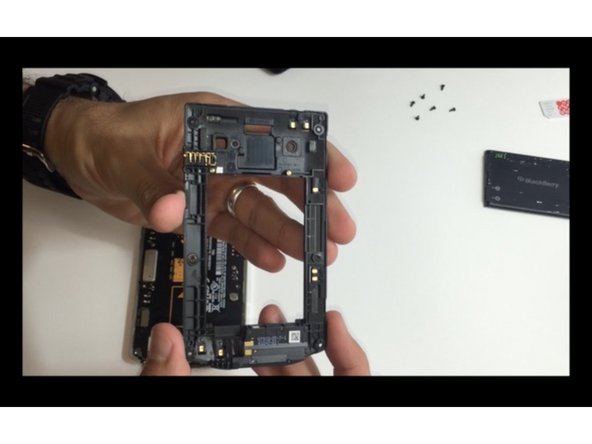

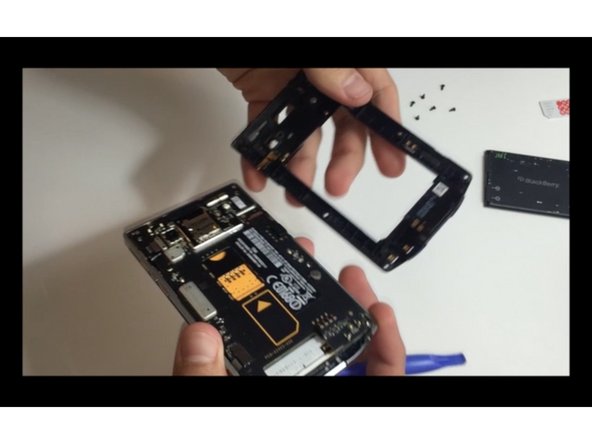

3. remove the back plastic plate

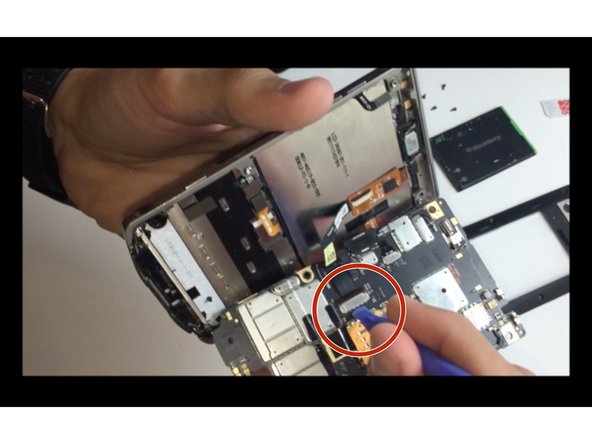

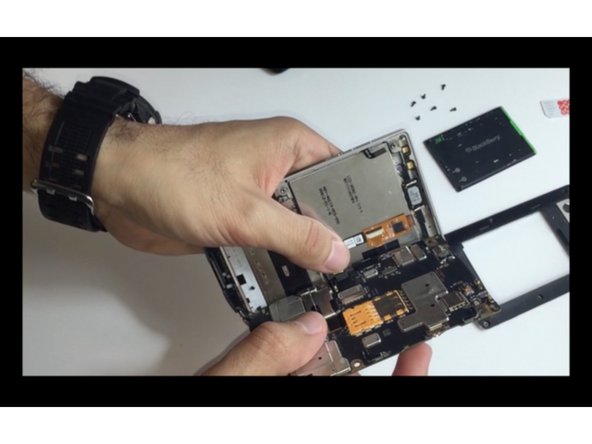

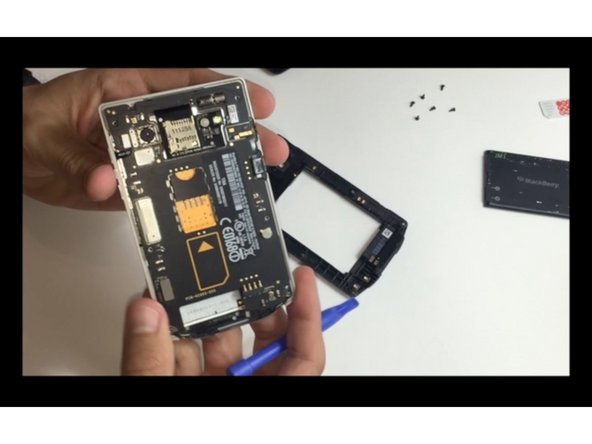

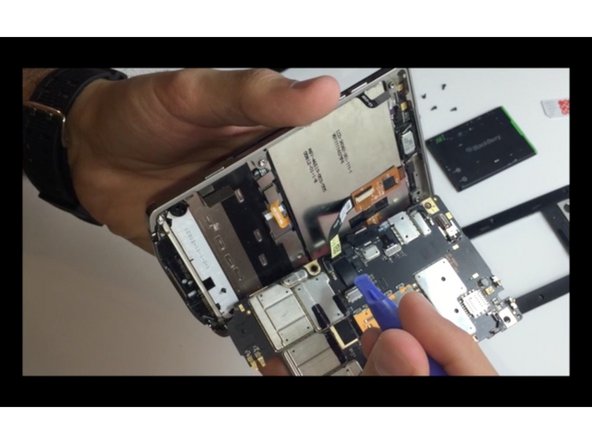

4. remove the keyboard Connector carefully

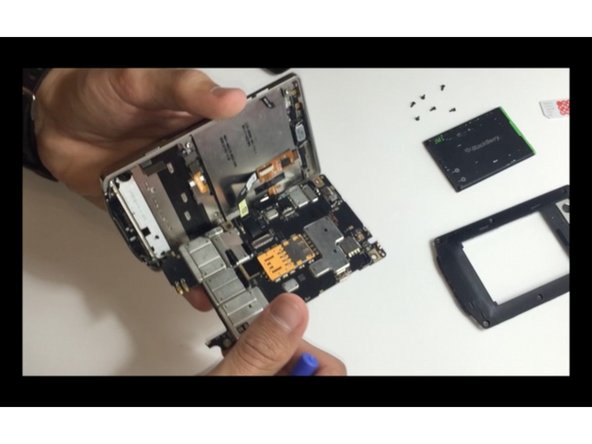

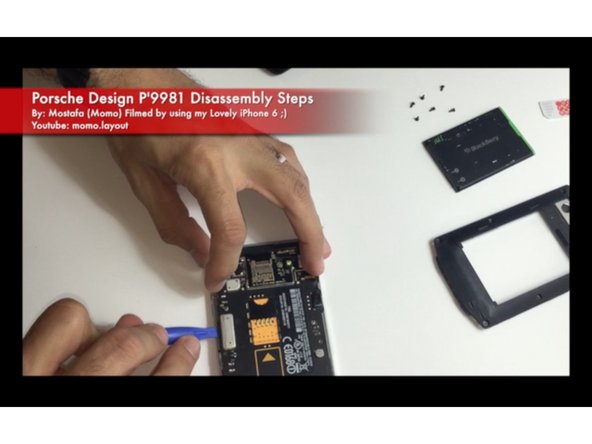

5. remove the security clasp so u can pull out the screen's ribbon cable carefully

6. carefully pull out the screen's ribbon cable

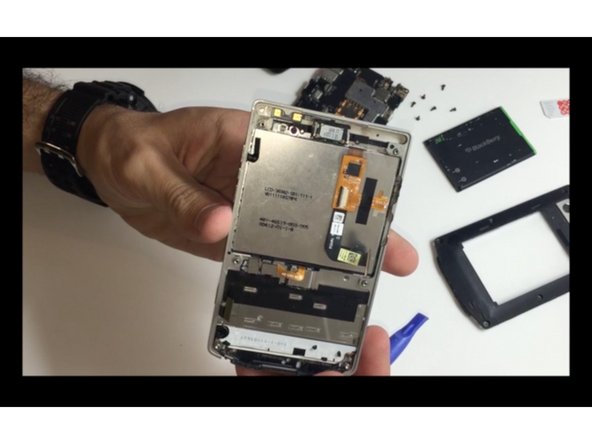

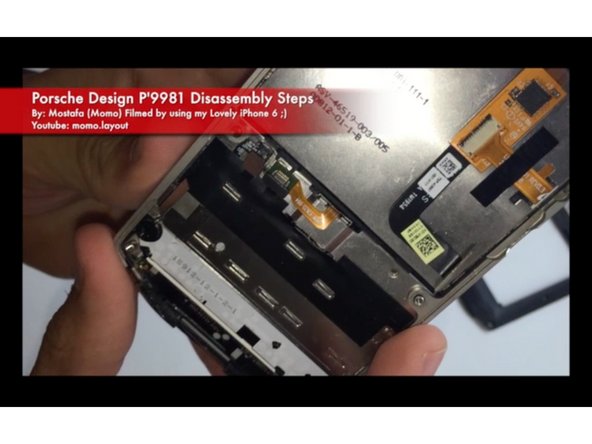

7. carefully remove the connector of screen keys ribbon cable

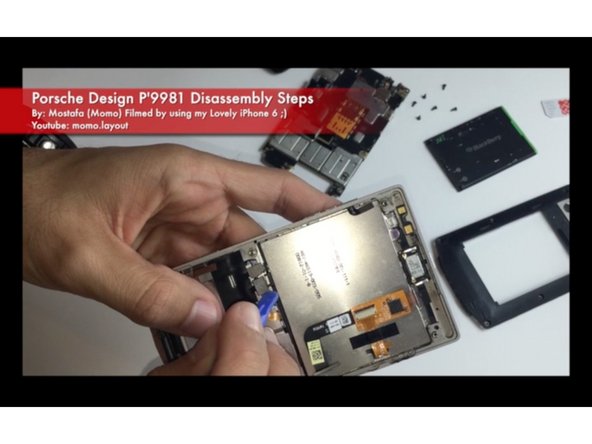

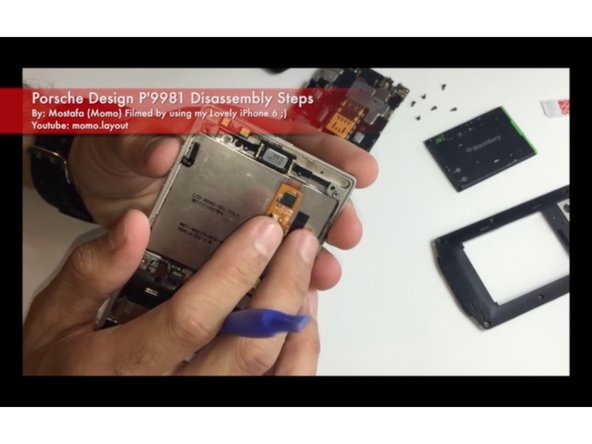

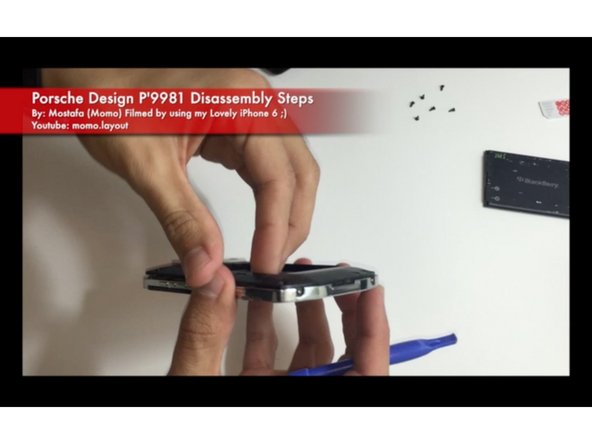

8. carefully push the screen out from the back to the front

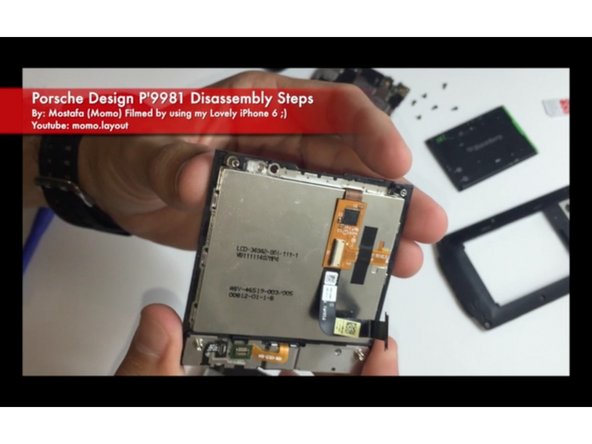

9. now the screen is out of the metal chassis

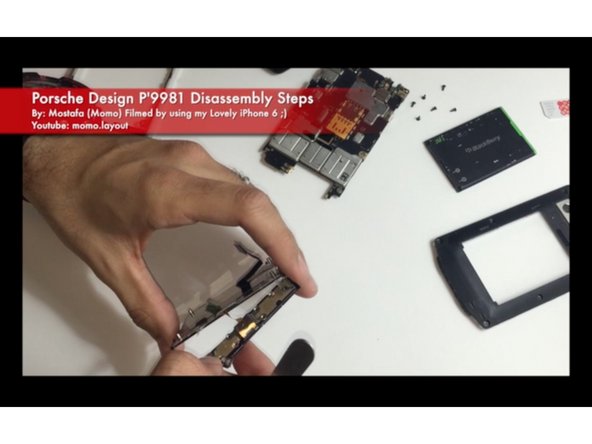

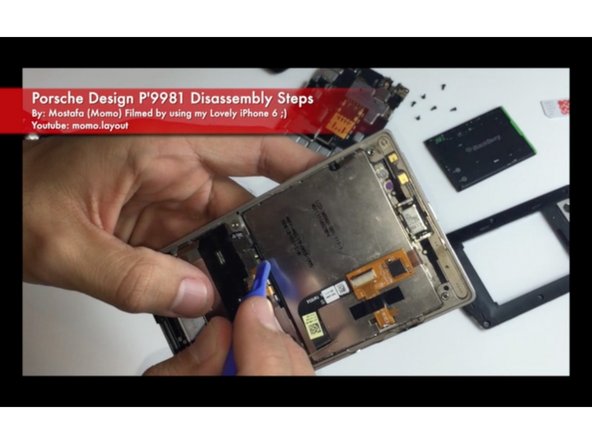

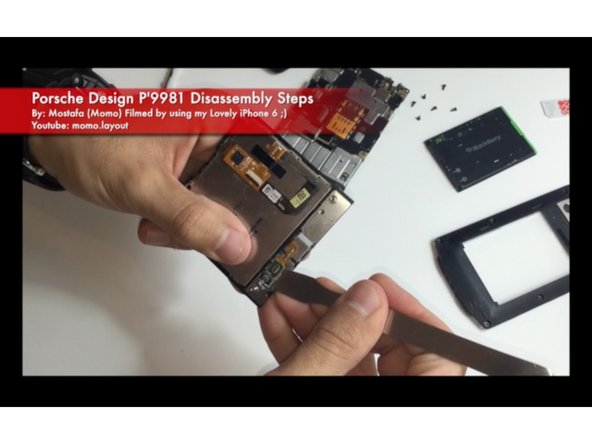

10. insert your metal blade tool carefully between the screen's chassis and the on screen keys to remove it's panel

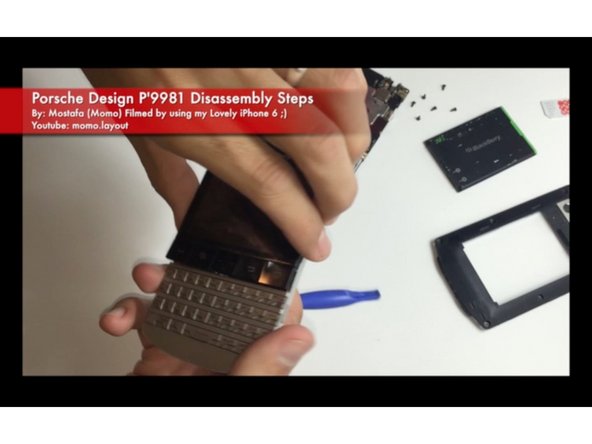

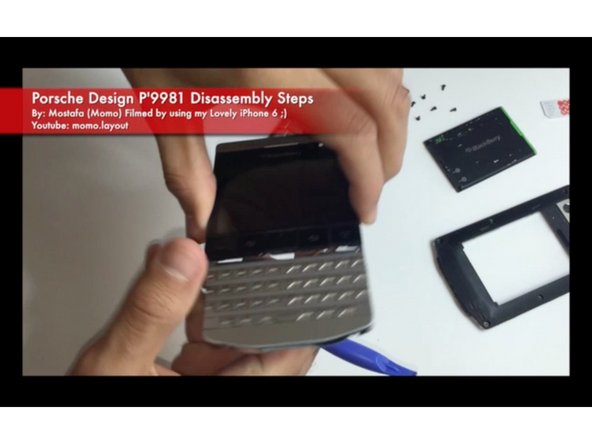

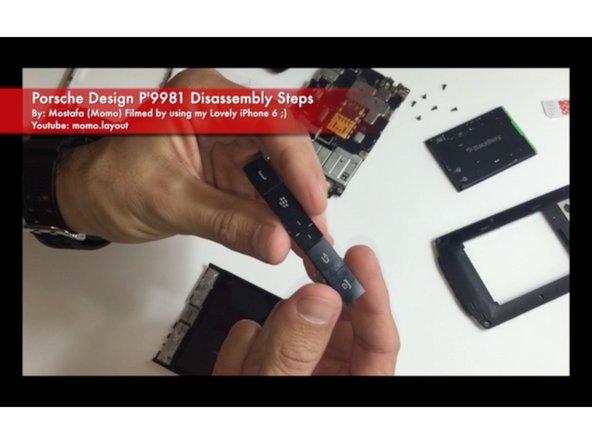

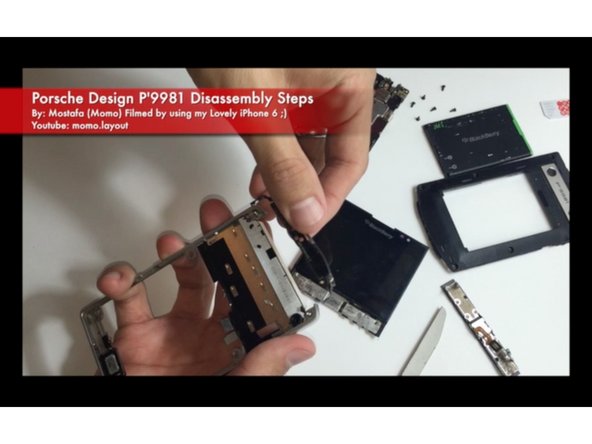

11. now the keys coming out

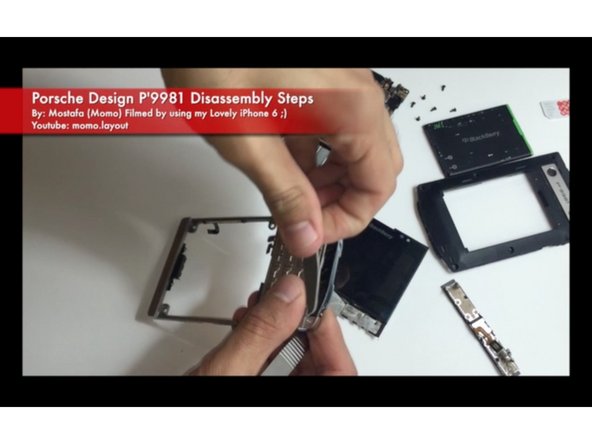

12. insert your metal blade tool carefully to remove the plastic bottom piece

13. take it out .. don't worry its glued so u have to pull it out but (carefully)

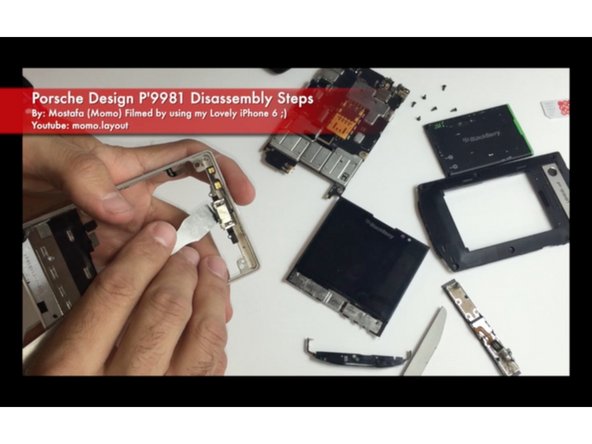

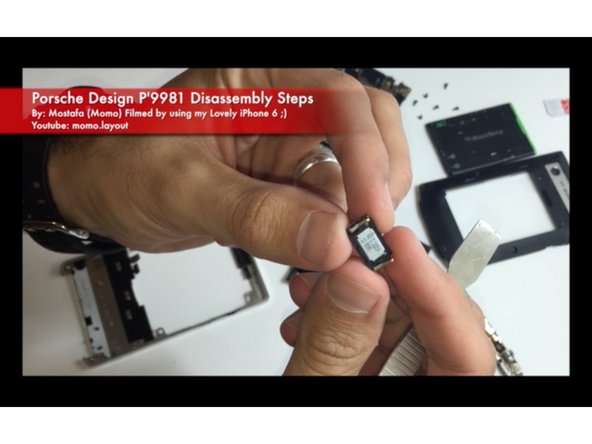

14. now remove the small ear piece

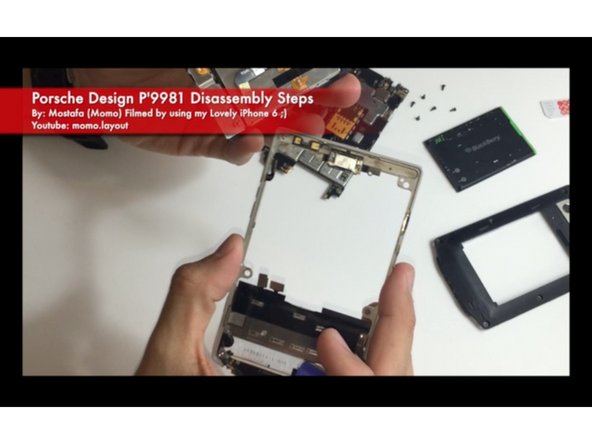

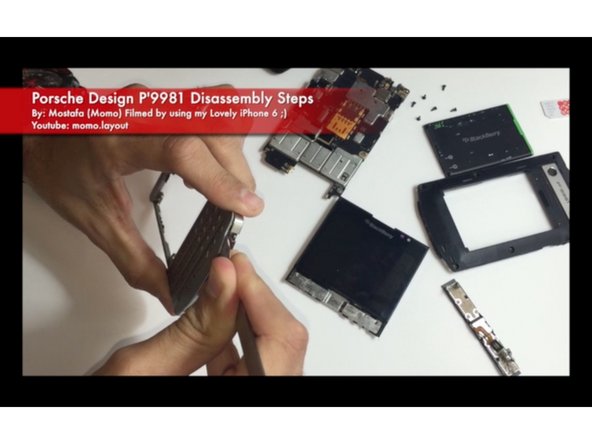

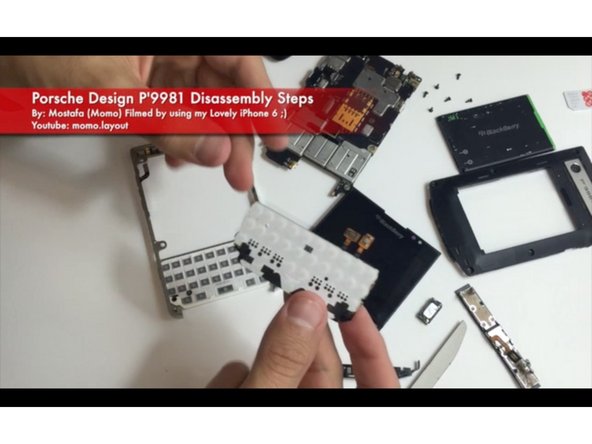

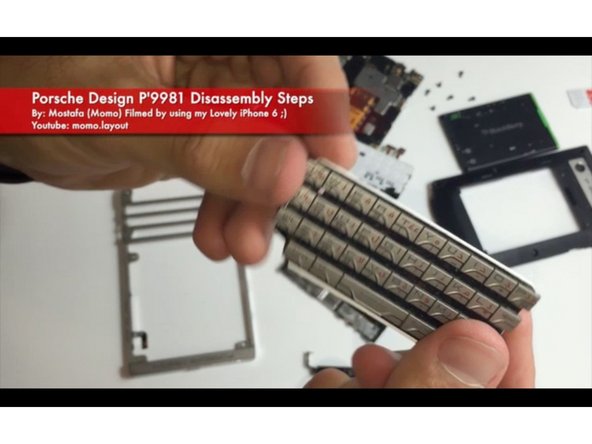

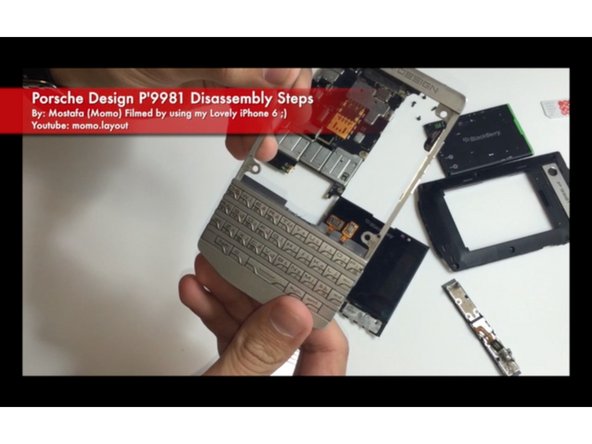

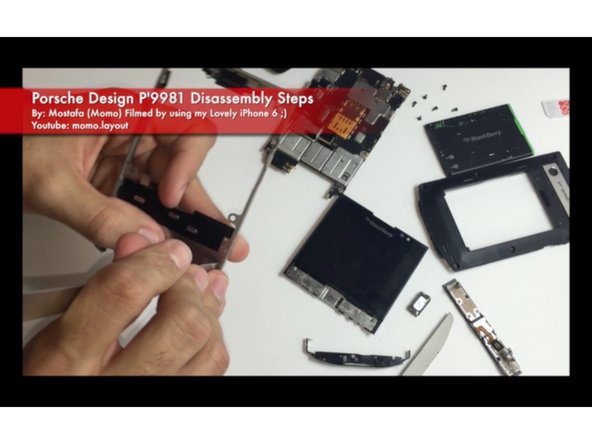

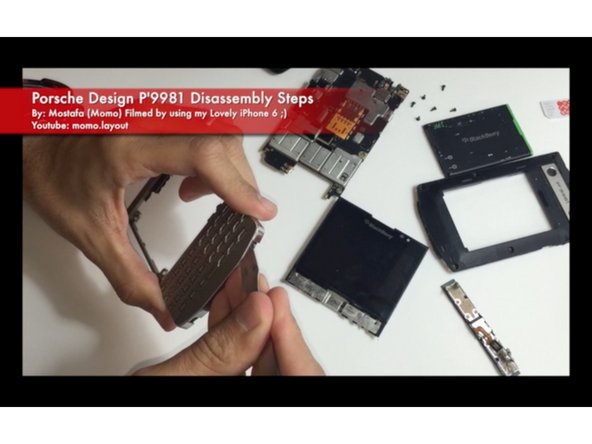

15. now u have to remove the keyboard panel .. from left side insert your metal blade tool between the panel and the metal chassis .. so it can pull out

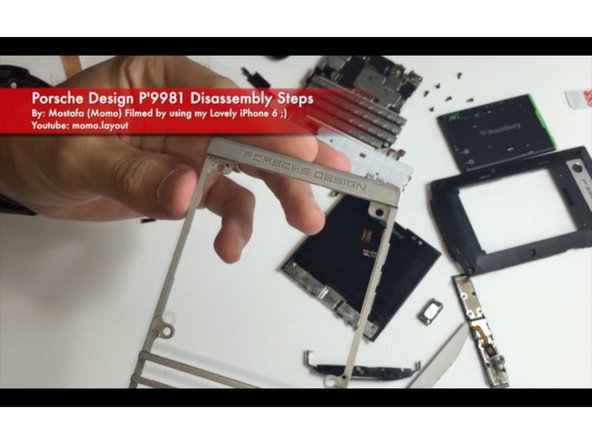

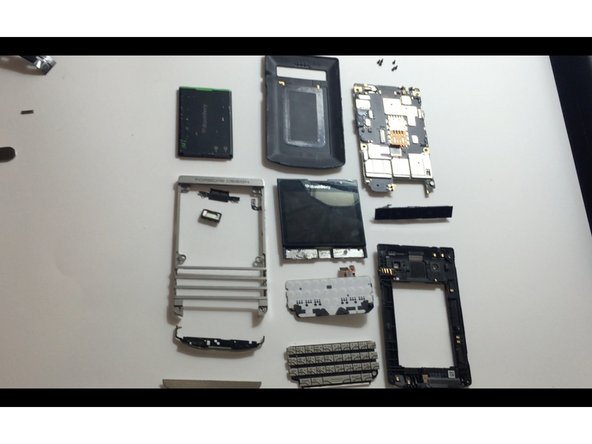

16. Finally you are Done
17. Check the Full video of me on this link :https://youtu.be/_VCZsZ-u8vM
